Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

22 part groups · 2 illustrations

Illustrations

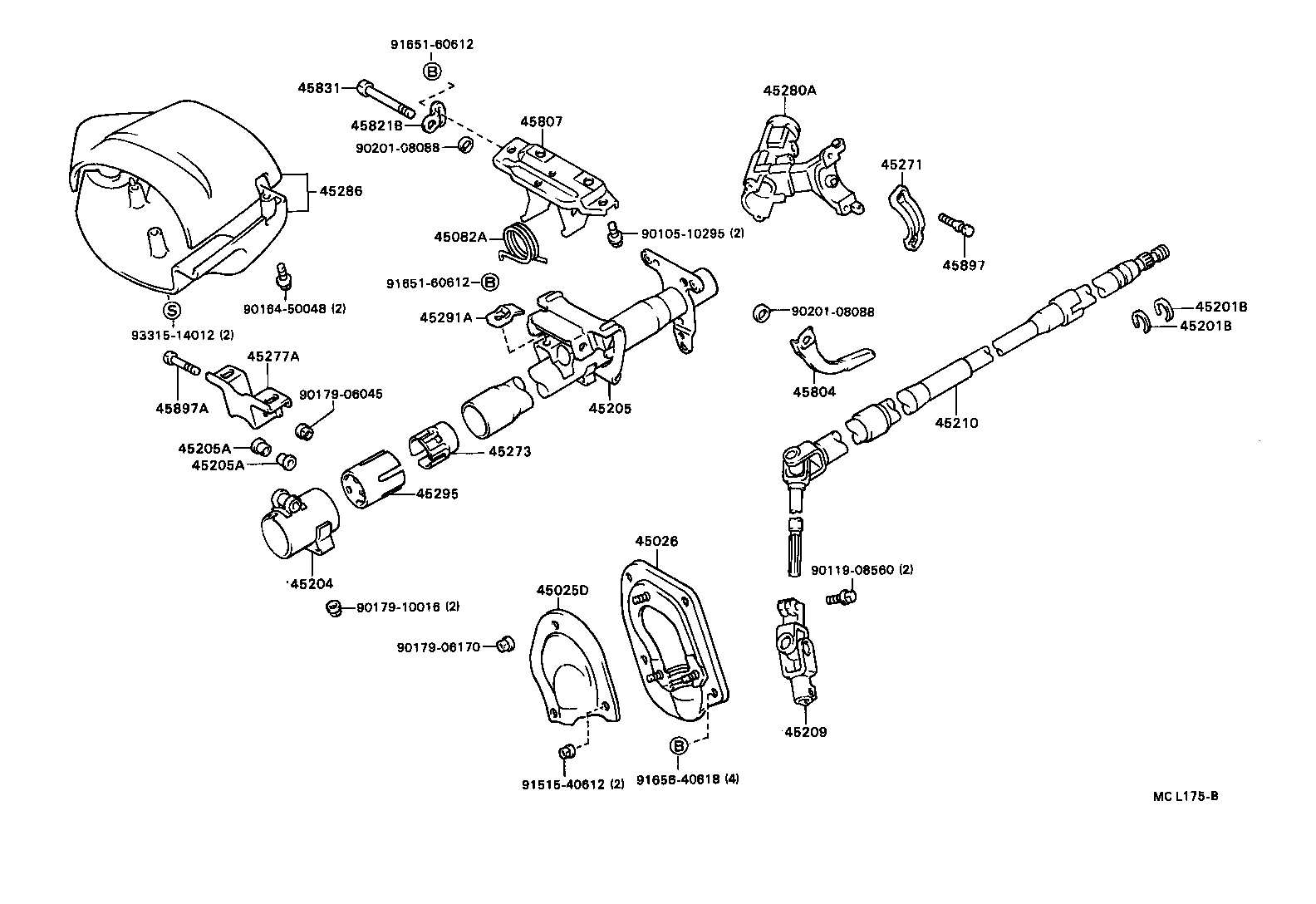

Figure MCL174A MCL174A 1990-09 → — Figure MCL175B MCL175B 1990-09 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45082A Spring, Torsion(FOR TILT STEERING RETURN)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45204 Tube Assy, Steering Column, Lower
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45277A Support, Tilt Steering
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45291A Support, Steering Column Tube
45295 Bush, Steering Column Tube
45804 Lever Sub-assy, Steering Tilt
45807 Bracket Sub-assy, Steering Column Upper Support
45821B Reinforce, Tilt Steering Support, NO.1
45831 Bolt, Tilt Lever Lock, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
