Toyota Corsa/Tercel
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan
Discontinued model
Data version 1995-03

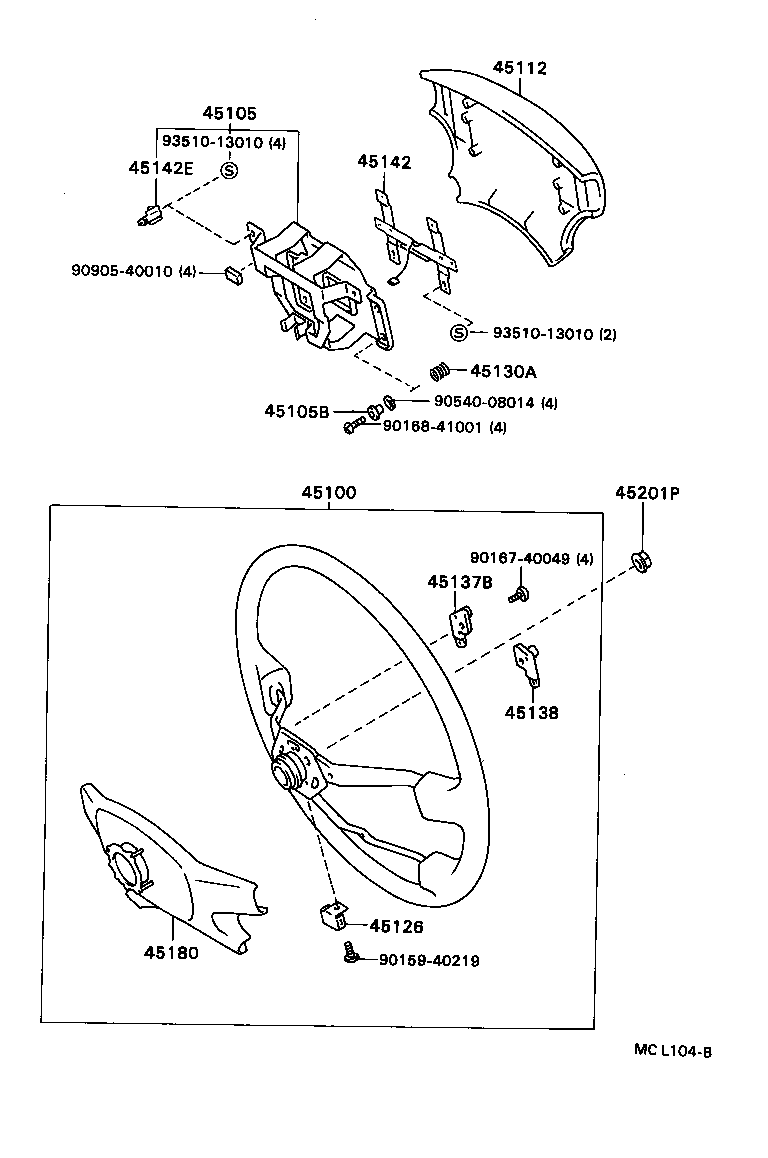

Steering Wheel
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45105 | Plate Sub-assy, Horn Button Contact, NO.1 |
| 45105B | Spacer(FOR HORN BUTTON CONTACT PLATE) |
| 45112 | Pad, Steering Wheel |
| 45126 | Plate, Steering Wheel Pad Set |
| 45129 | Button, Horn, NO.2 |
| 45130 | Button Assy, Horn |
| 45130A | Spring, Compression(FOR HORN BUTTON) |
| 45131 | Button, Horn, NO.1 |
| 45137B | Plate, Horn Button Stop, NO.1 |
| 45138 | Plate, Horn Button Stop, NO.2 |
| 45142 | Seat, Horn Button Contact, NO.1 |
| 45142E | Piece, Horn Contact |
| 45146 | Spring, Horn Button Contact |
| 45180 | Cover Sub-assy, Steering Wheel |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
