Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

5 part groups · 3 illustrations

Illustrations

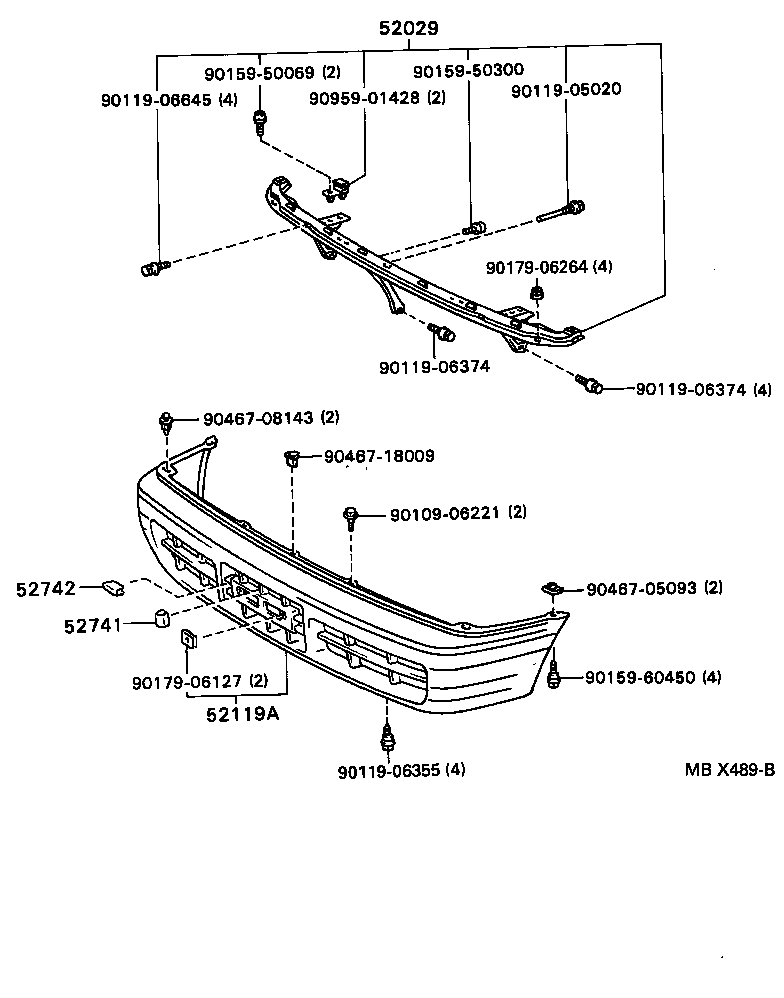

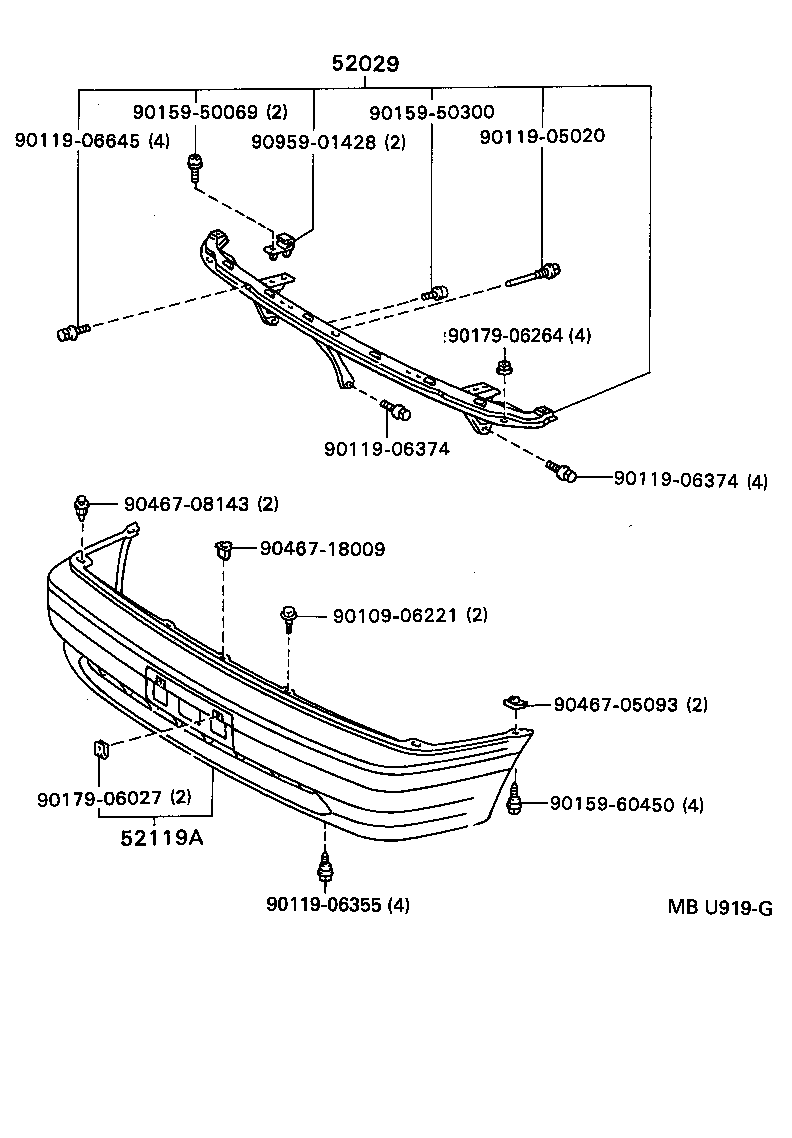

Figure MBU918E MBU918E 1990-09 → — Figure MBU919G MBU919G 1990-09 → 1992-08 Figure MBX489B MBX489B 1992-08 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52147B Bracket, Front Bumper Mounting
52741 Garnish, Front Bumper Bar, NO.1
52742 Garnish, Front Bumper Bar, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
