Toyota Corsa/Tercel
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan
Discontinued model
Data version 1995-03

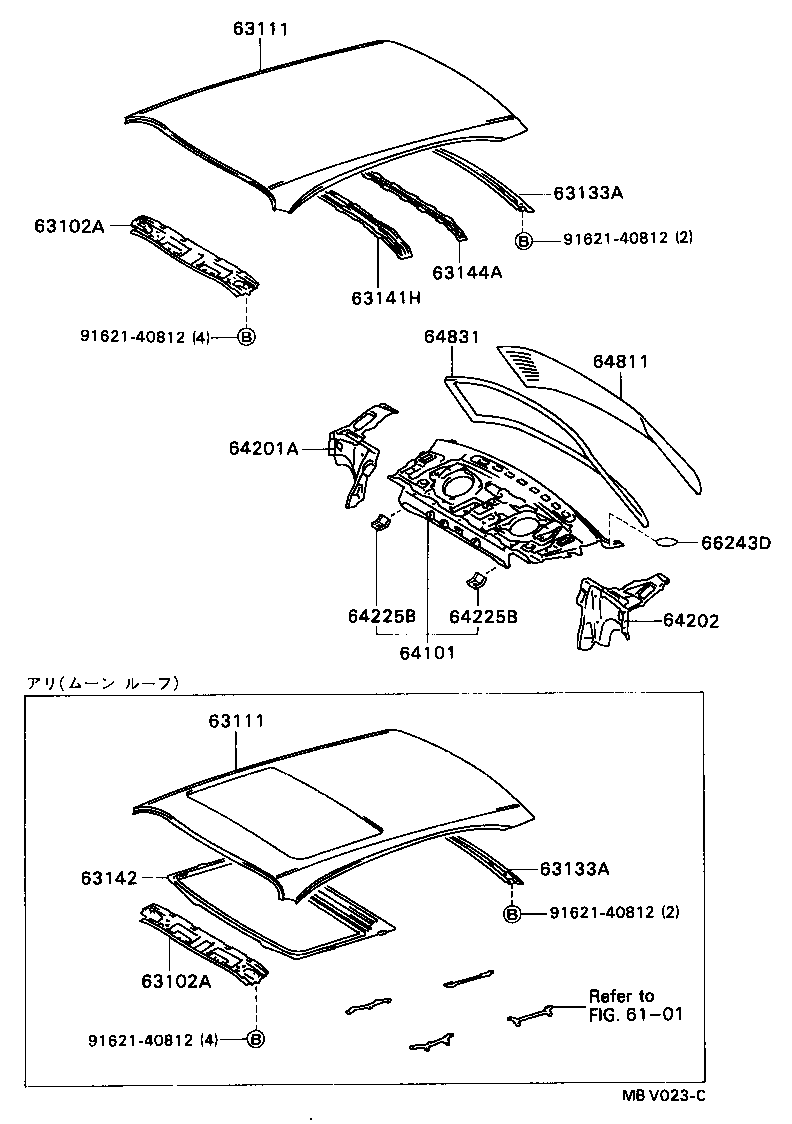

Roof Panel & Back Window Glass
79 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63111 | Panel, Roof |
| 63122A | Reinforcement, Roof Panel, Front |
| 63123C | Reinforcement, Roof Panel |
| 63124B | Reinforcement, Roof Panel, Front LH |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63126A | Damper, Windshield Header Panel |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63133A | Frame, Back Window, Upper |
| 63135A | Frame, Back Door Opening, Lower |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148C | Reinforcement, Roof Panel Side, RH |
| 63149C | Reinforcement, Roof Panel Side, LH |
| 63177 | Reinforcement, Roof Panel, NO.9 |
| 63178A | Reinforcement, Roof Panel, NO.10 |

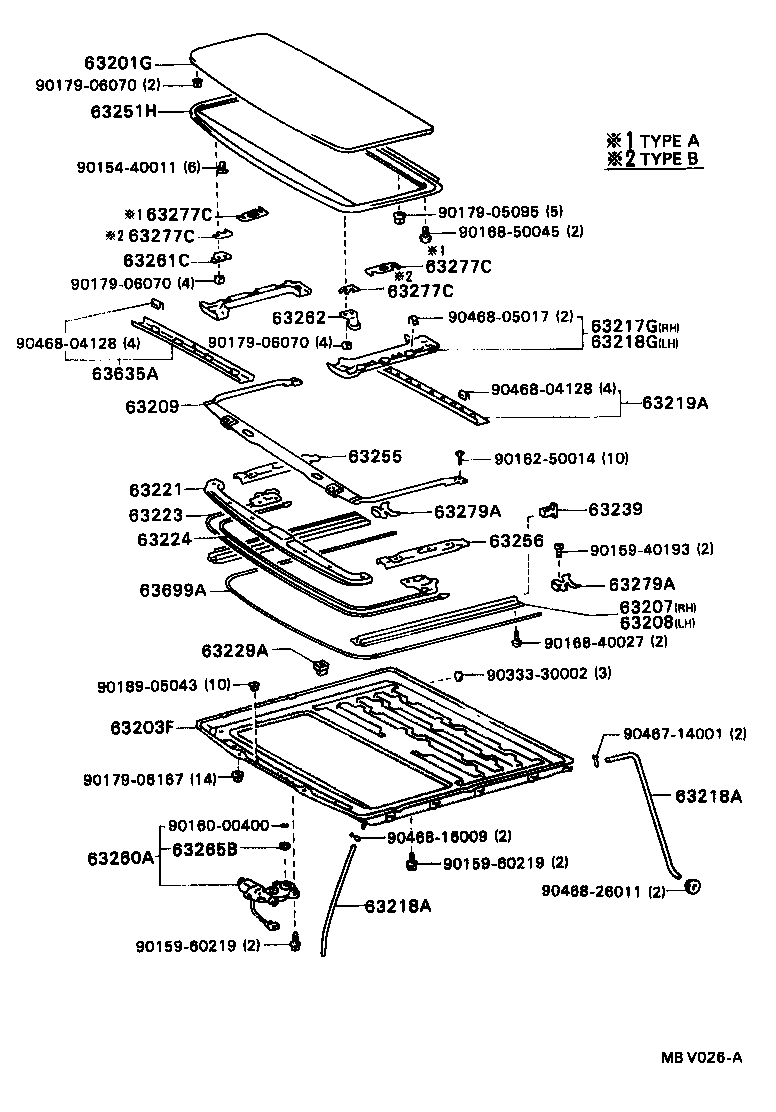

| 63201G | Glass Sub-assy, Sliding Roof |
| 63201K | Canvas Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63207E | Moulding Sub-assy, Removable Roof, Front RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63208E | Moulding Sub-assy, Removable Roof, Front LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63212 | Panel, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63219D | Cushion, Sliding Roof Guide Rail |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63232C | Retainer, Removable Roof |
| 63239 | Stopper, Sliding Roof Panel |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63253F | Bracket, Slide Roof Motor Cover |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63257B | Seal, Sliding Roof |
| 63259D | Seal, Sliding Roof, NO.2 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63261D | Shoe, Sliding Roof |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63262A | Seal, Sliding Roof, Front NO.1 |
| 63263B | Shoe, Sliding Roof |
| 63264 | Seal, Sliding Roof, Front NO.3 |
| 63265B | Gear, Sliding Roof Drive |
| 63277C | Shim, Sliding Roof Panel |
| 63279A | Bracket, Housing TO Rail, NO.3 |
| 63301C | Strength Sub-assy, Roof |
| 63343C | Pad, Roof Silencer, Rear |
| 63345B | Pad, Roof Silencer, Center |
| 63361D | Support, Sliding Roof Headlining |
| 63635A | Garnish, Sliding Roof, Front |
| 63641B | Stopper, Sliding Roof Guide Rail |
| 63699A | Seal, Sliding Roof Guide Rail |
| 63763 | Bracket, Roof Air Deflector, Front RH |
| 63764 | Bracket, Roof Air Deflector, Front LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64201A | Extension Sub-assy, Package Tray, RH |
| 64202 | Extension Sub-assy, Package Tray, LH |
| 64225B | Hanger, Rear Seat Cushion Support |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 66243D | Protector, Rear Body, NO.1 |
| 76085B | Spoiler Sub-assy, Rear |
| 76857 | Retainer, Front Spoiler Side, RH |
| 76858 | Retainer, Front Spoiler Side, LH |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76866 | Retainer, Rear Spoiler, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
