Toyota Corsa/Tercel
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan
Discontinued model
Data version 1995-03

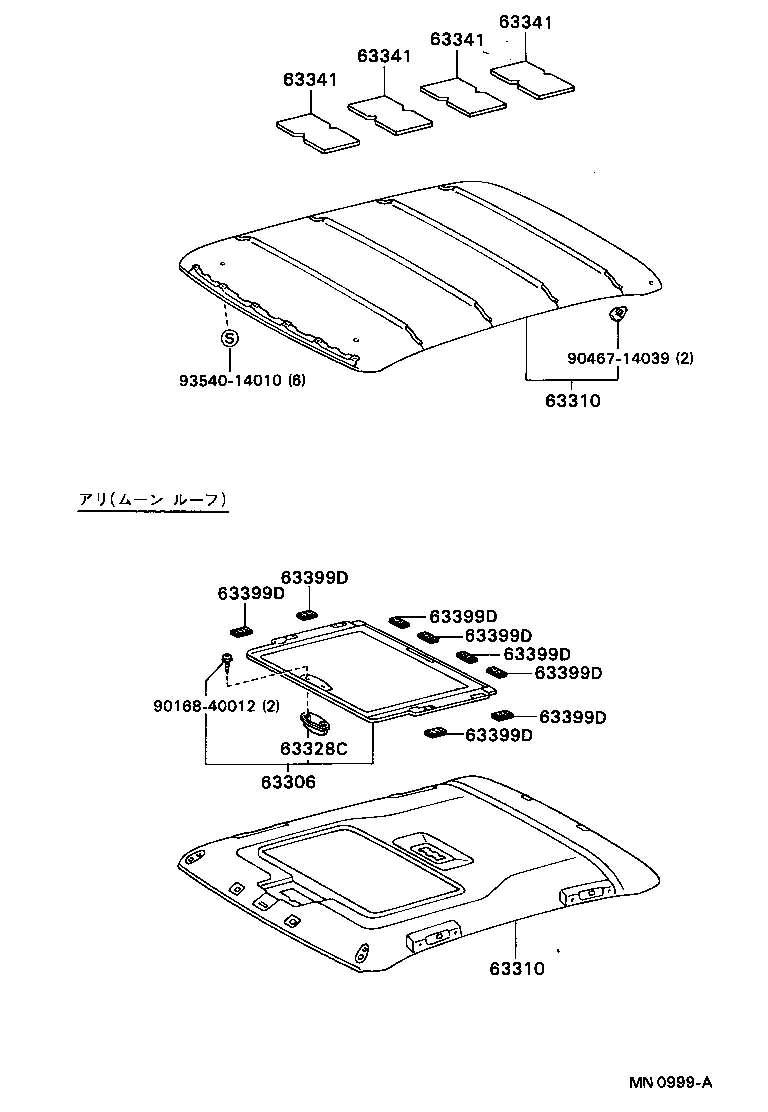

Roof Headlining & Silencer Pad
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63305B | Trim Sub-assy, Roof Headlining, Rear |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310A | Plug, Hole(FOR ROOF HEADLINING ASSY) |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63399D | Clip, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
