Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

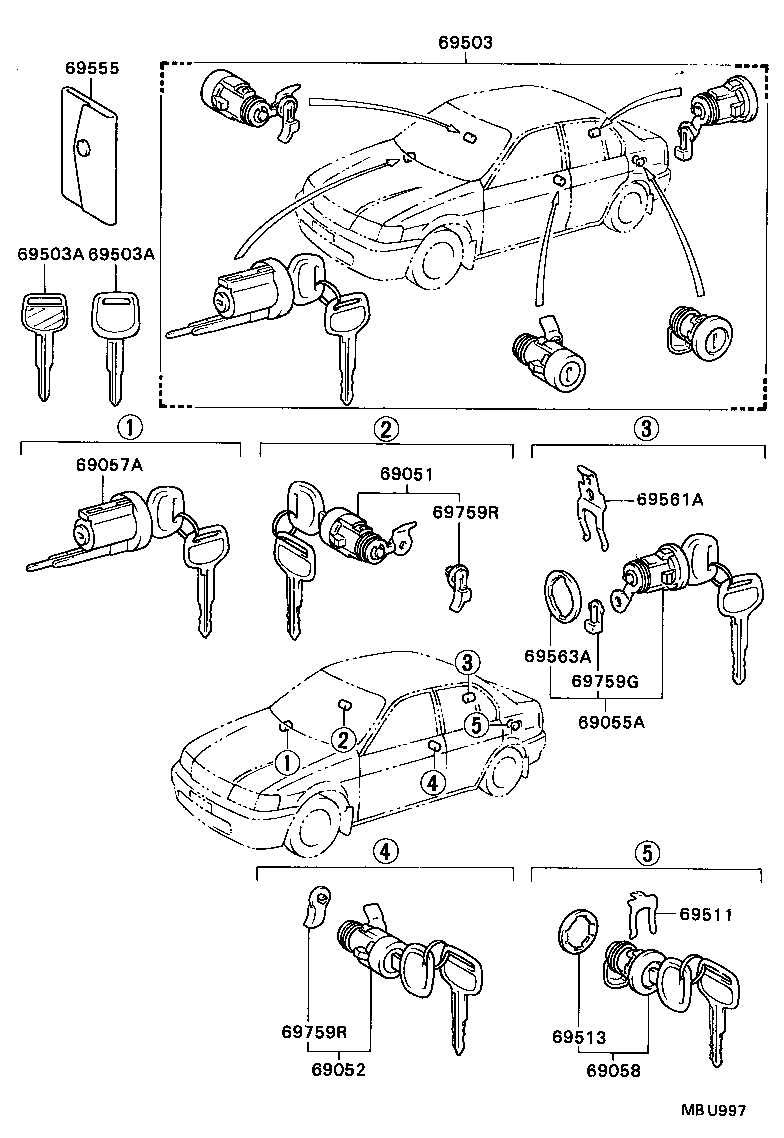

Figure MBU996 MBU996 1990-09 → — Figure MBU997 MBU997 1990-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69513 Pad, Fuel Filler Lid Lock Cylinder
69555 Cover, Key
69561A Retainer, Luggage Compartment Lock Cylinder
69563A Pad, Luggage Compartment Door Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
