Toyota Corsa/Tercel
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan
Discontinued model
Data version 1995-03

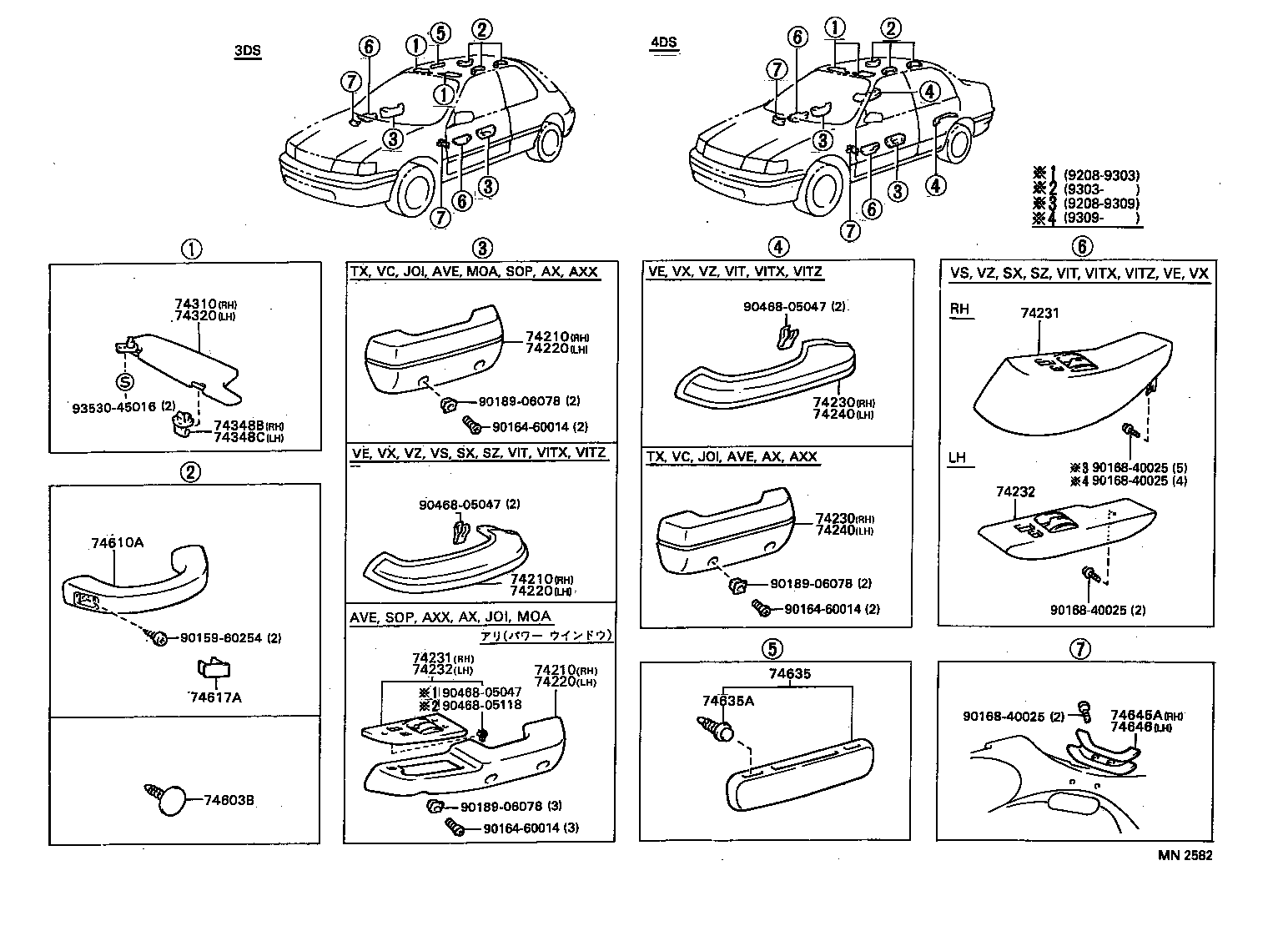

Armrest & Visor
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74635 | Holder, Card |
| 74635A | Clip |
| 74645A | Cover, Door Assist Grip, RH |
| 74646 | Cover, Door Assist Grip, LH |
| 74647 | Base, Door Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
