Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

20 part groups · 2 illustrations

Illustrations

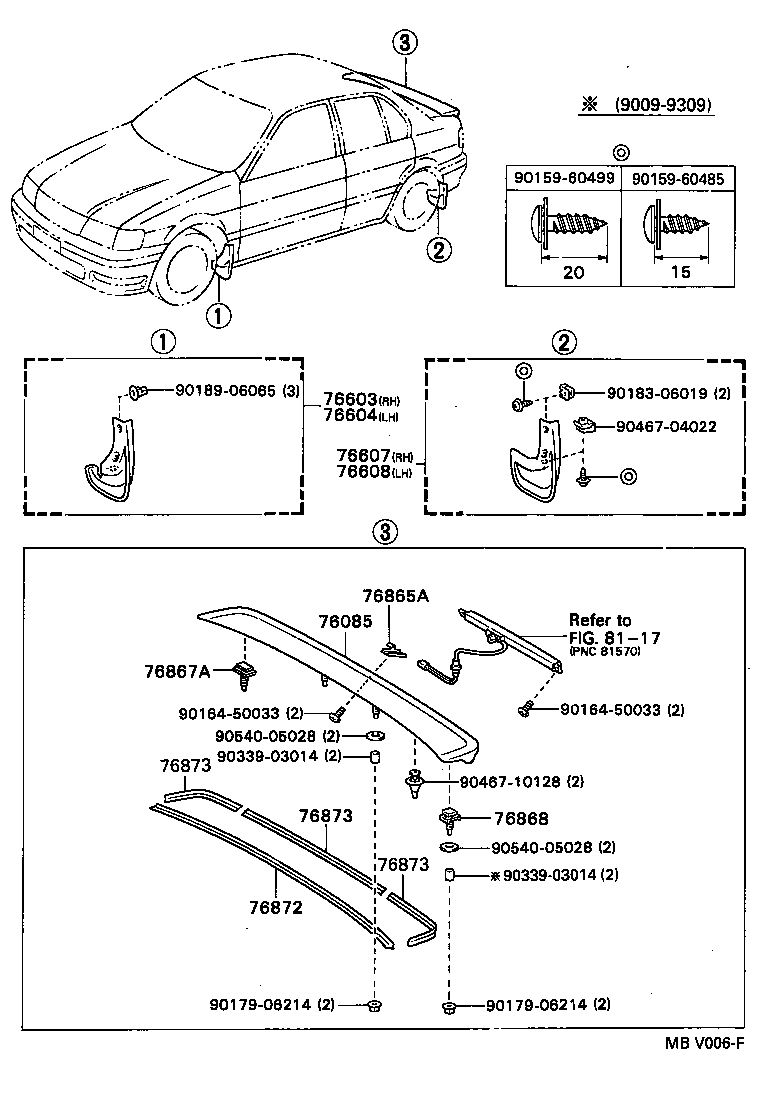

Figure MBV005E MBV005E 1990-09 → — Figure MBV006F MBV006F 1990-09 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76865A Retainer, Side Mudguard
76867 Retainer, Rear Spoiler Side, RH
76867A Retainer, Rear Spoiler, NO.3
76868 Retainer, Rear Spoiler Side, LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76879 Clip, Rear Spoiler, NO.1
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76887 Seal, Rear Spoiler
76887A Seal, Rear Spoiler
76889 Clip, Rear Spoiler, NO.2
76899A Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
