Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

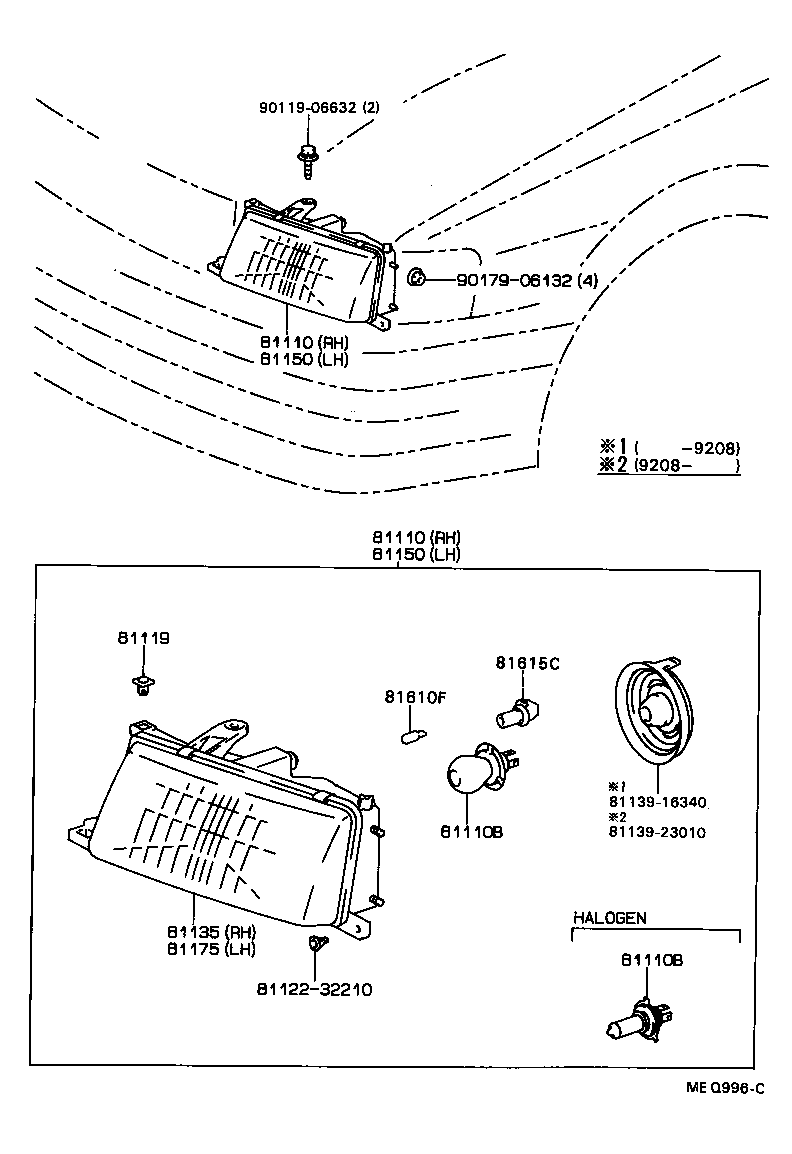

Figure MEQ999A MEQ999A 1990-09 → — Figure MEQ996C MEQ996C 1990-09 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81119 Screw, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
