Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 2 illustrations

Illustrations

Figure MEQ872B

MEQ872B 1990-09 → —

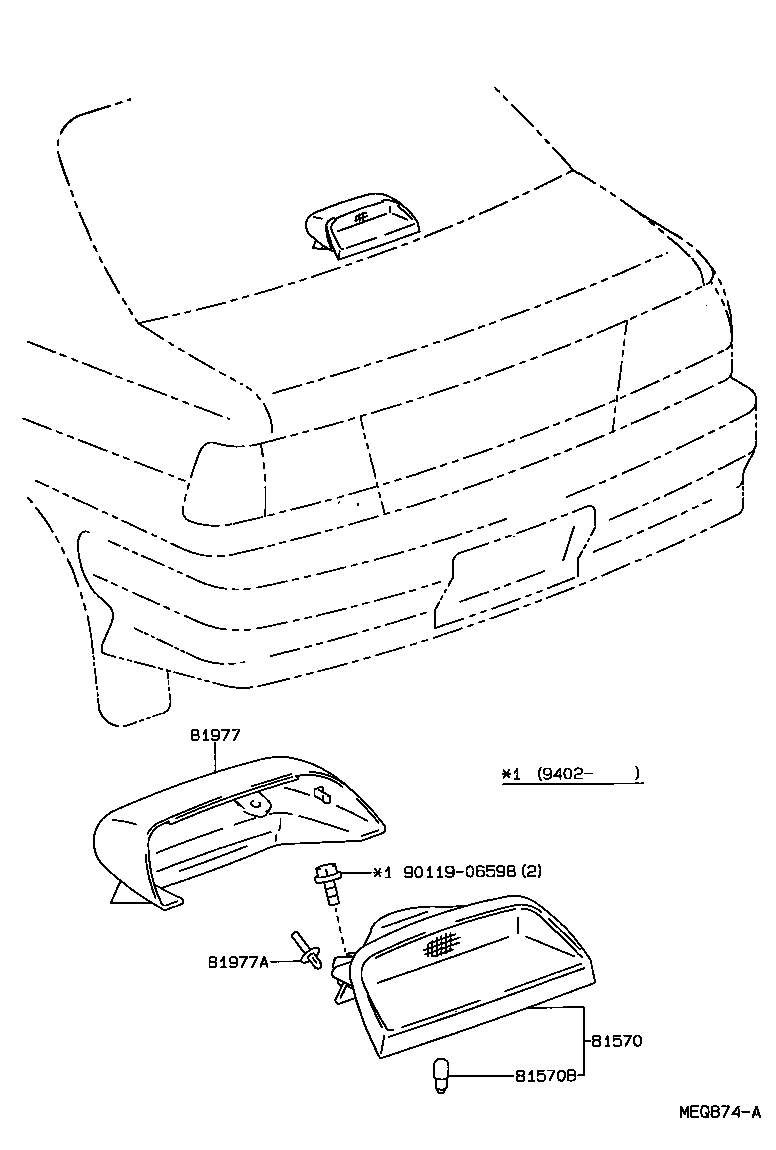

Figure MEQ874A

MEQ874A 1992-08 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81977	Cover, Center Stop Lamp
81977A	Clip (FOR CENTER STOP LAMP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
