Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

12 part groups · 3 illustrations

Illustrations

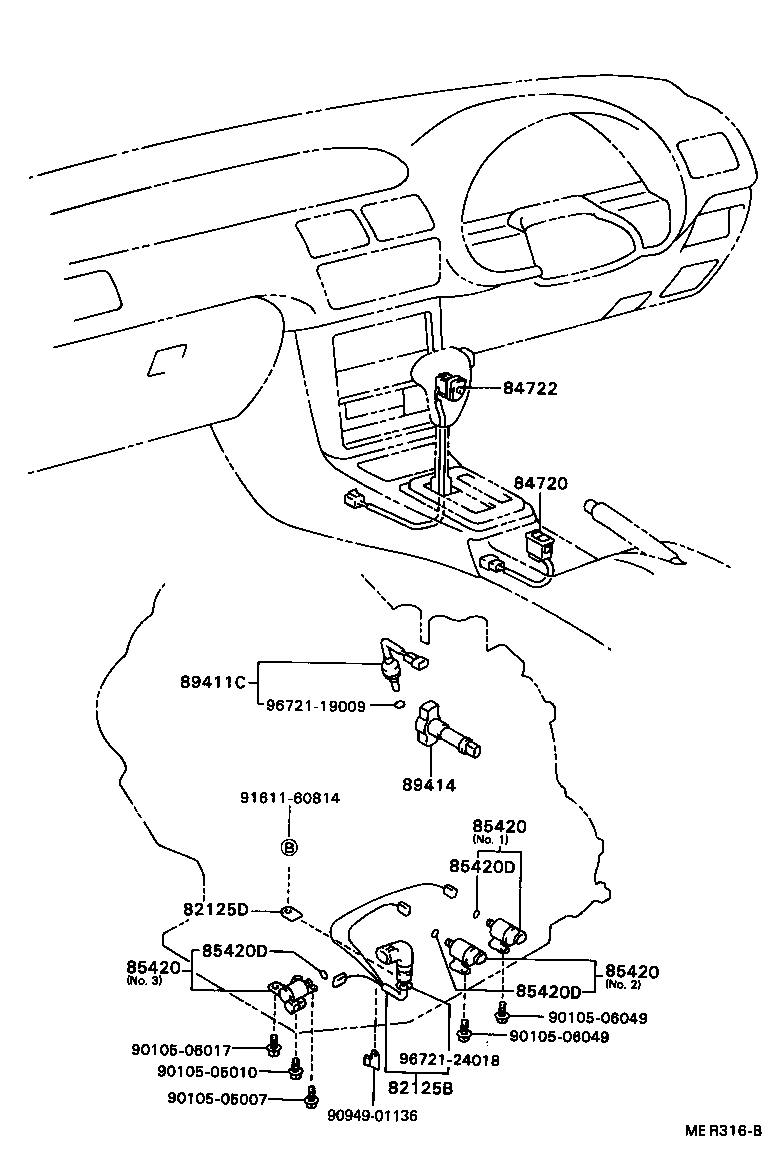

Figure MER162D MER162D 1990-09 → 1992-08 Figure MER162D MER162D 1992-08 → — Figure MER316B MER316B 1992-08 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125B Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85425A Ring, O (FOR OVERDRIVE SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89427A Switch, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
