Toyota Corsa/Tercel

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 141150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 6 illustrations

Illustrations

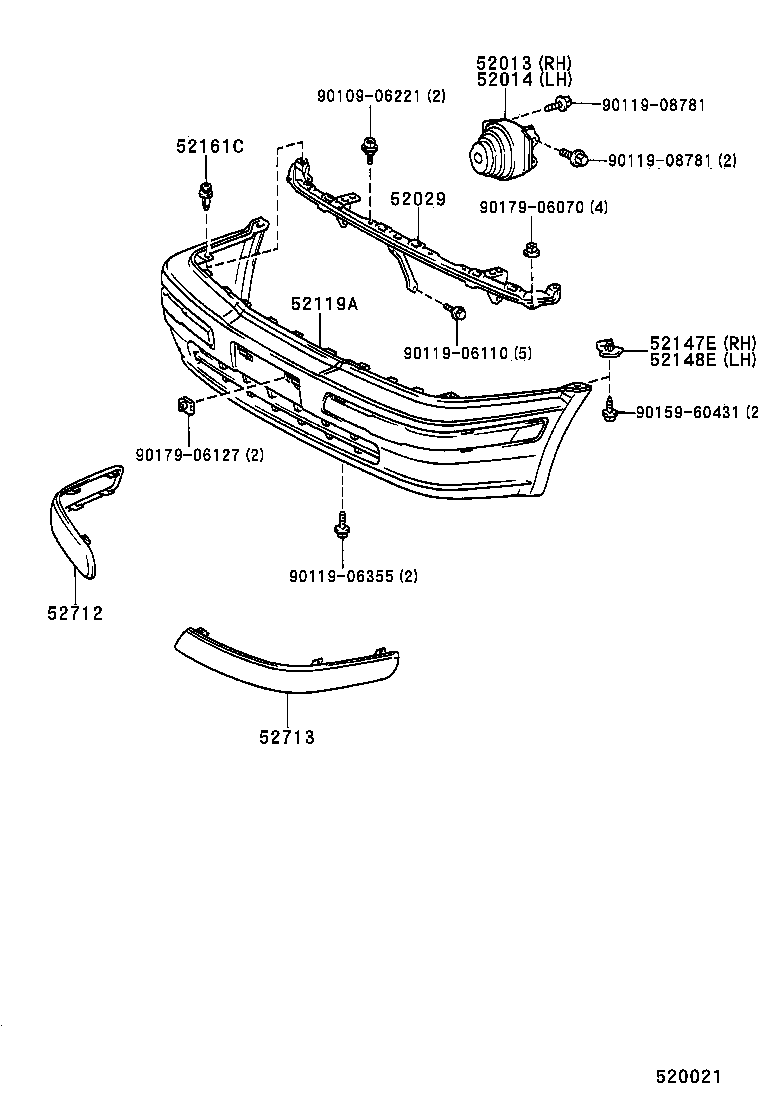

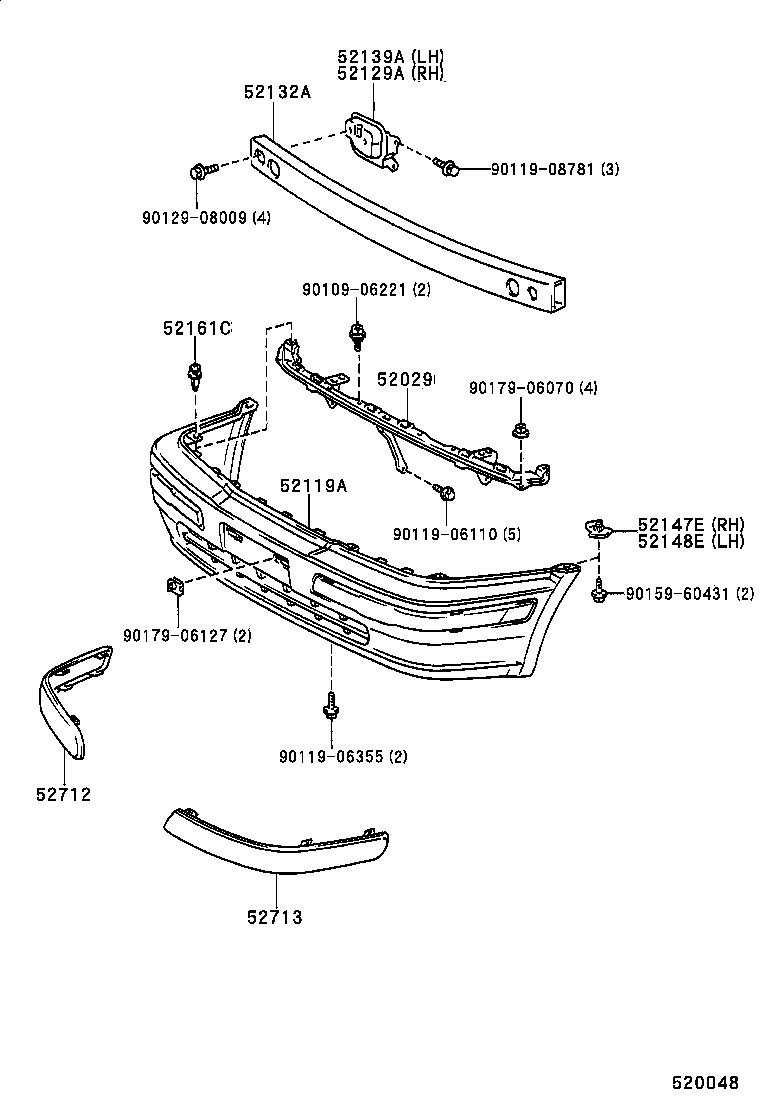

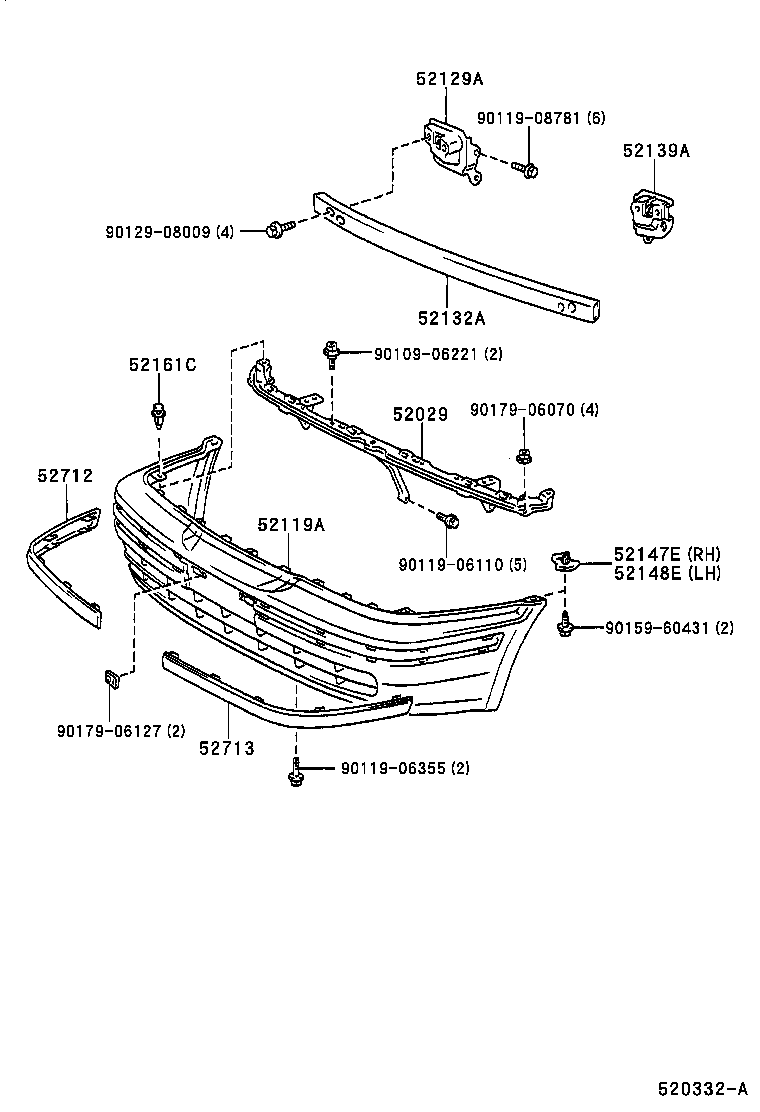

Figure 520022 520022 1994-09 → 1996-08 Figure 520021 520021 1994-09 → 1996-08 Figure 520051 520051 1996-08 → 1997-12 Figure 520048 520048 1996-08 → 1997-12 Figure 520331A 520331A 1997-12 → — Figure 520332A 520332A 1997-12 → —

Part groups

PNCDescription
52013 Arm Sub-assy, Front Bumper, Inner RH
52014 Arm Sub-assy, Front Bumper, Inner LH
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52129A Arm, Front Bumper, Upper NO.2 RH
52132A Reinforcement, Front Bumper, NO.2
52139A Arm, Front Bumper, Upper NO.2 LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
