Toyota Corsa/Tercel
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 141150 · Japan
Discontinued model
Data version 2000-02

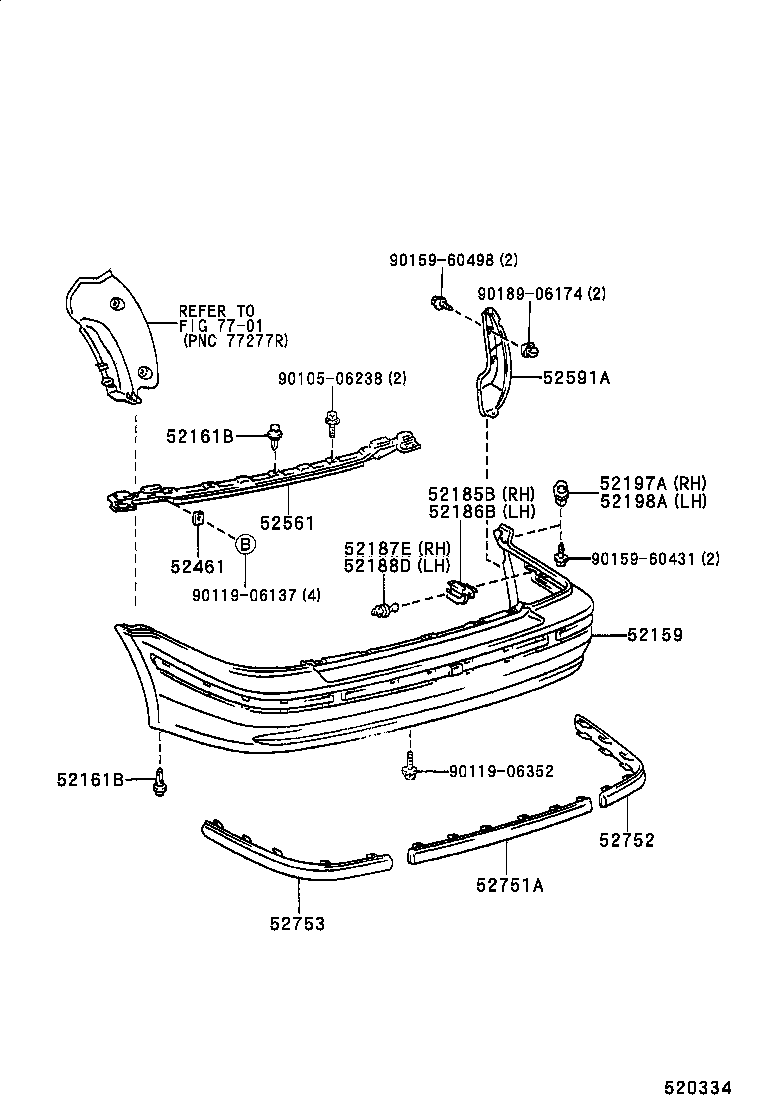

Rear Bumper & Bumper Stay
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52187E | Guide, Rear Bumper Location, RH |
| 52188D | Guide, Rear Bumper Location, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52461 | Pad, Rear Bumper, Center |
| 52561 | Retainer, Rear Bumper, Upper Center |
| 52591A | Seal, Rear Bumper |
| 52751A | Moulding, Rear Bumper, Center |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
