Toyota Corsa/Tercel
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 141150 · Japan
Discontinued model
Data version 2000-02

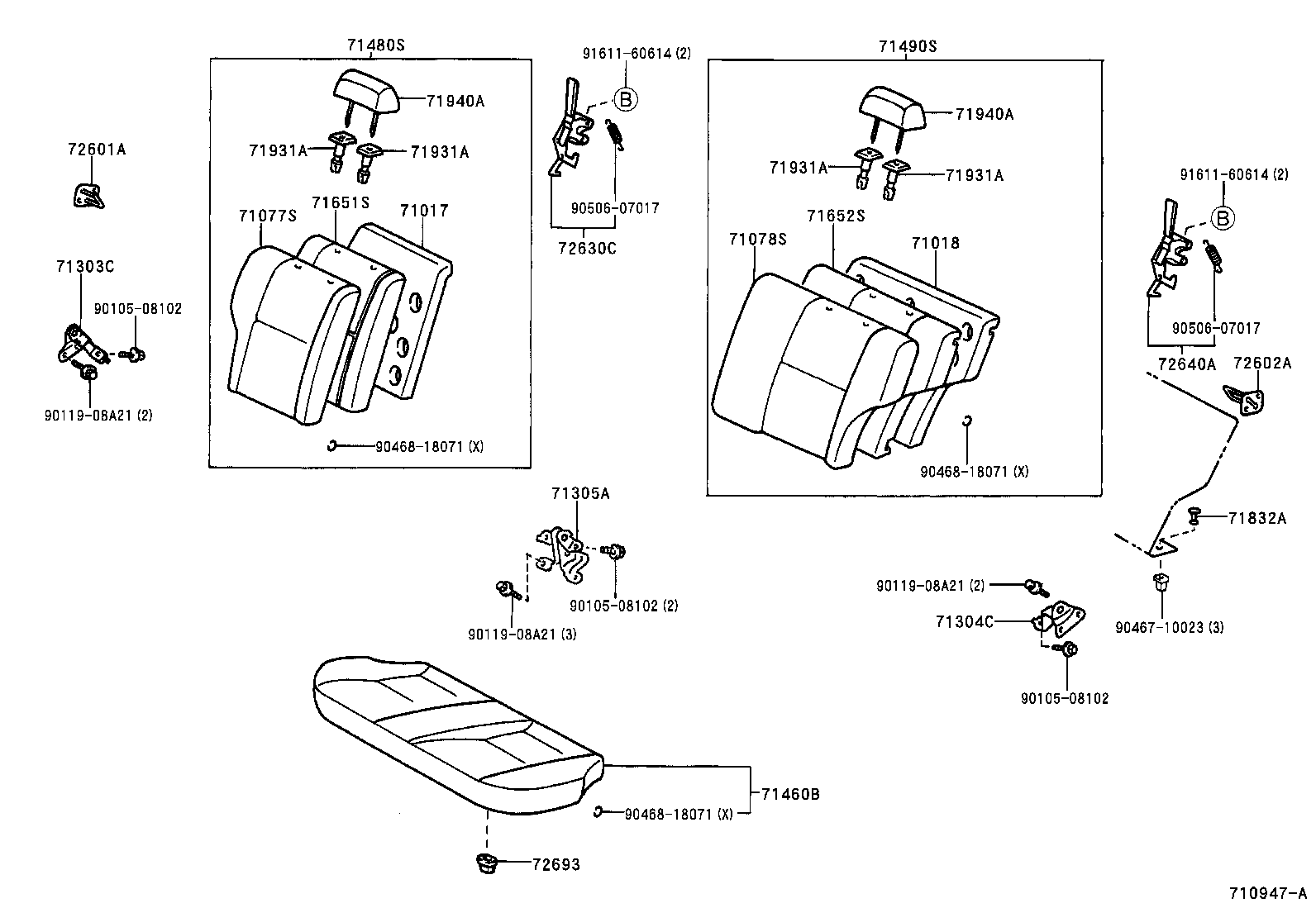

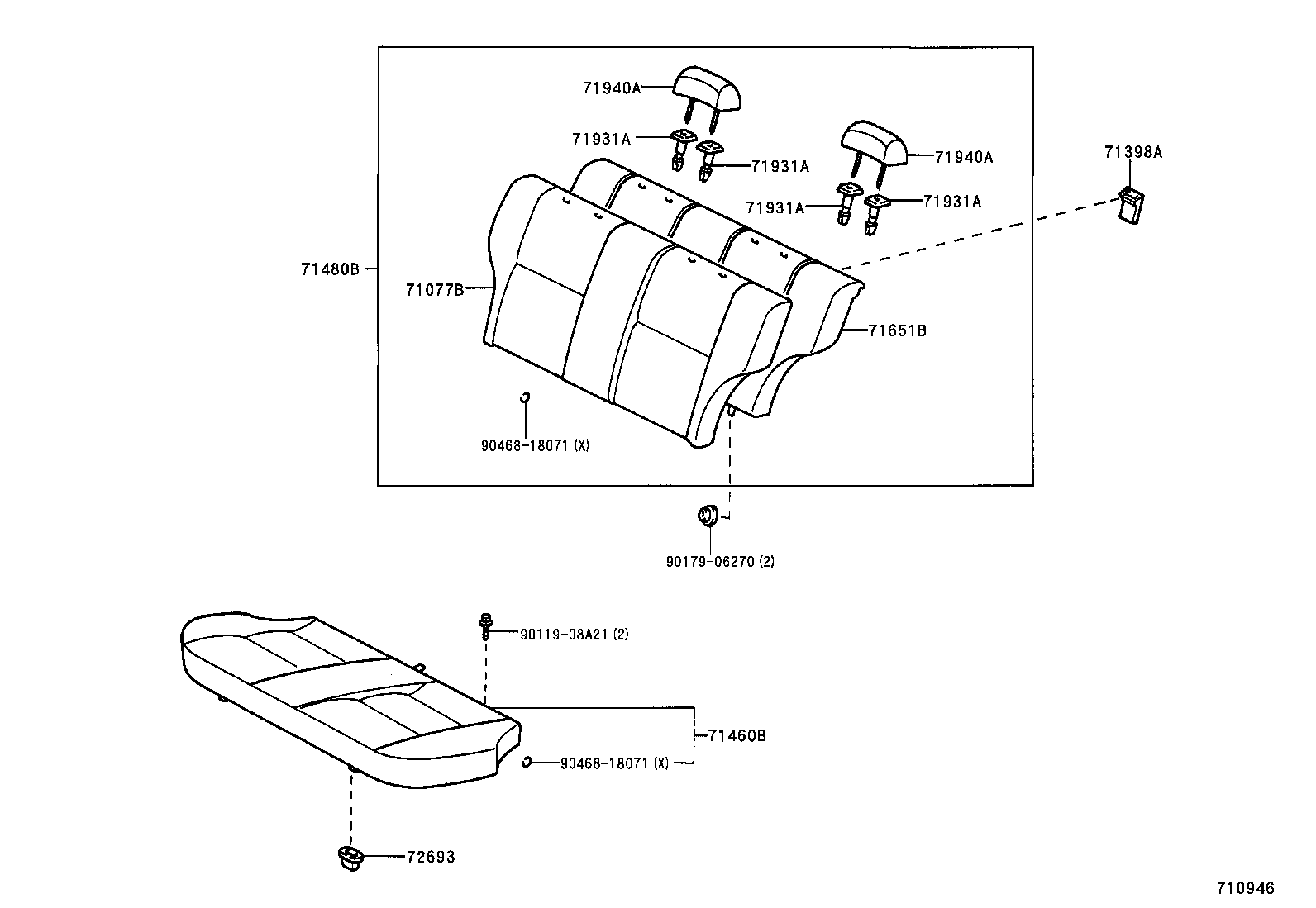

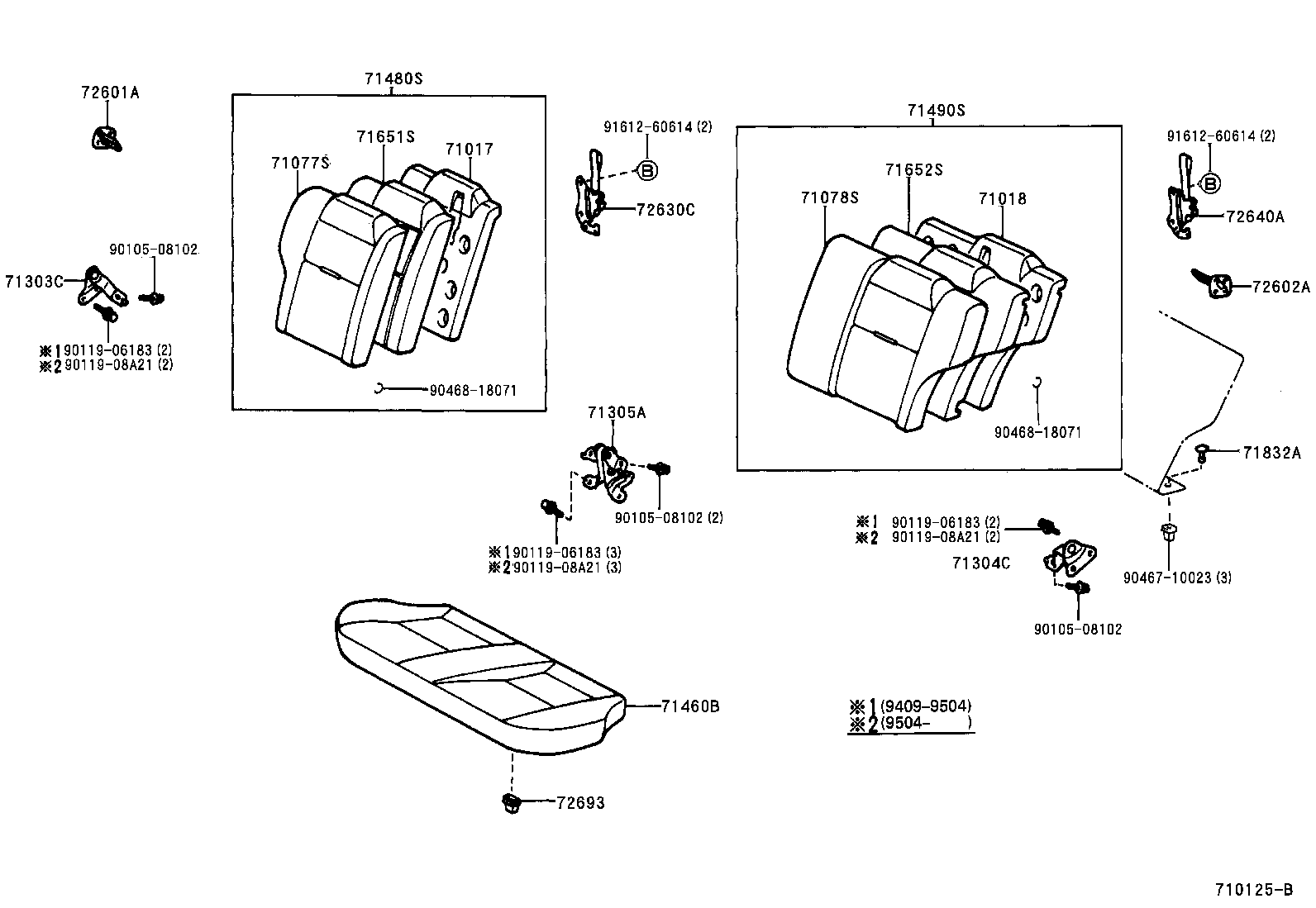

Rear Seat & Seat Track
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71398A | Holder, Rear Seatback |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71832A | Clip, Rear Seatback Carpet OR Mat |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72655A | Grommet, Rear Seatback Stop Button |
| 72656B | Button, Rear Seatback Stop Release |
| 72693 | Hook, Rear Seat Cushion Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
