Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 4 illustrations

Illustrations

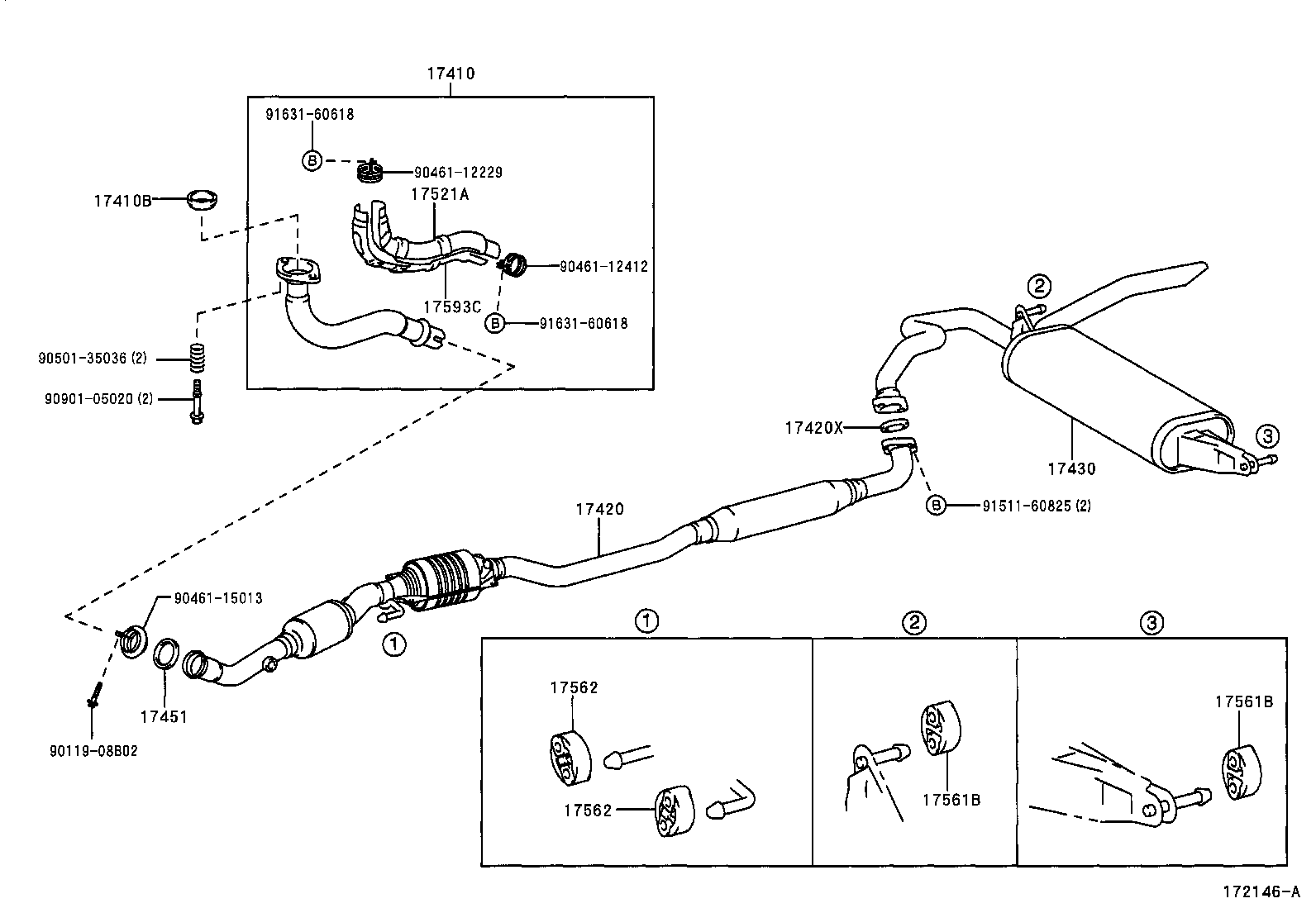

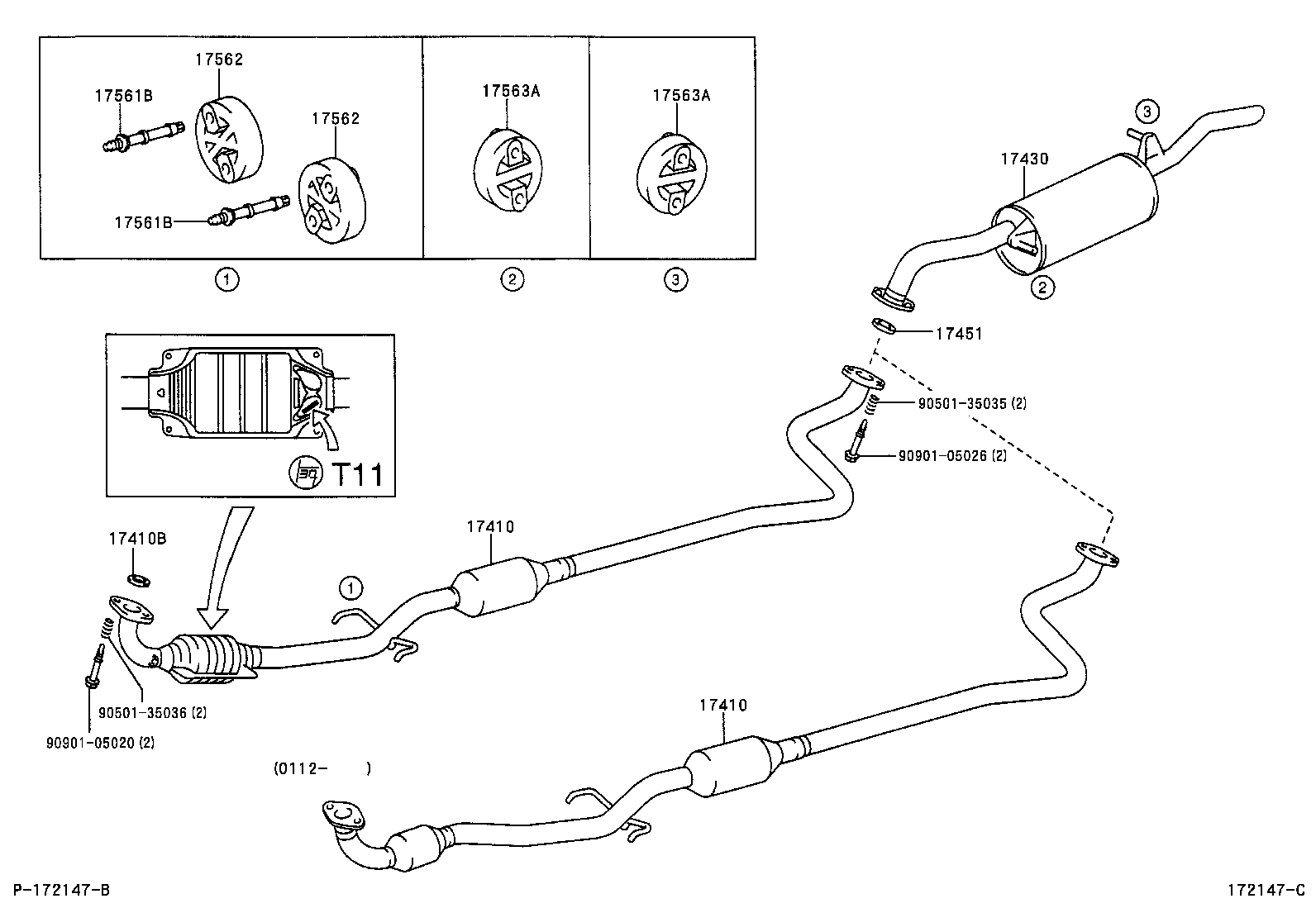

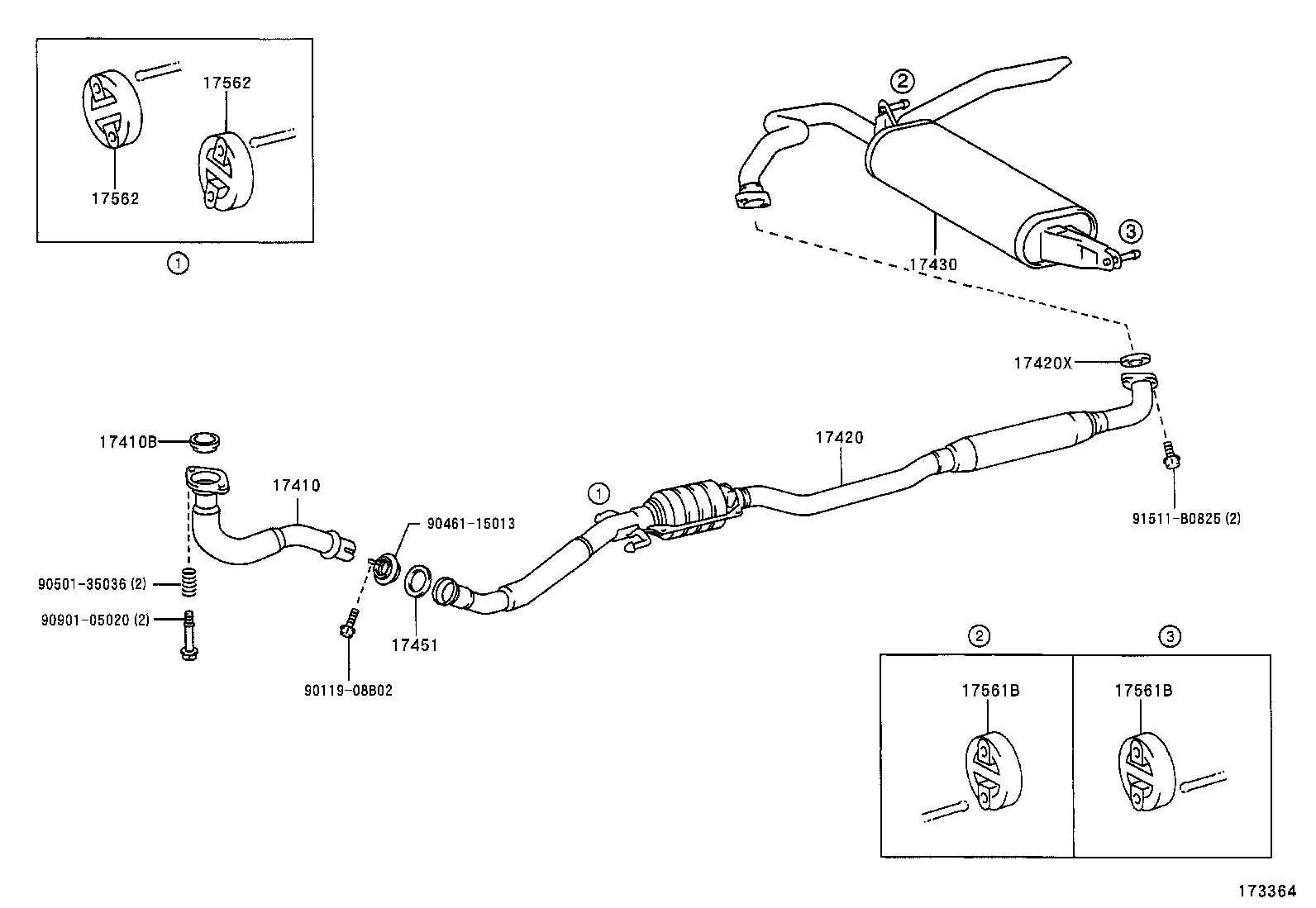

Figure 172145 172145 1999-08 → — Figure 172146A 172146A 1999-08 → 2002-08 Figure 173364 173364 2002-08 → — Figure 172147C 172147C 1999-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17593C Protector, Exhaust Pipe, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
