Parking Brake & Cable

9 part groups · 3 illustrations

Illustrations

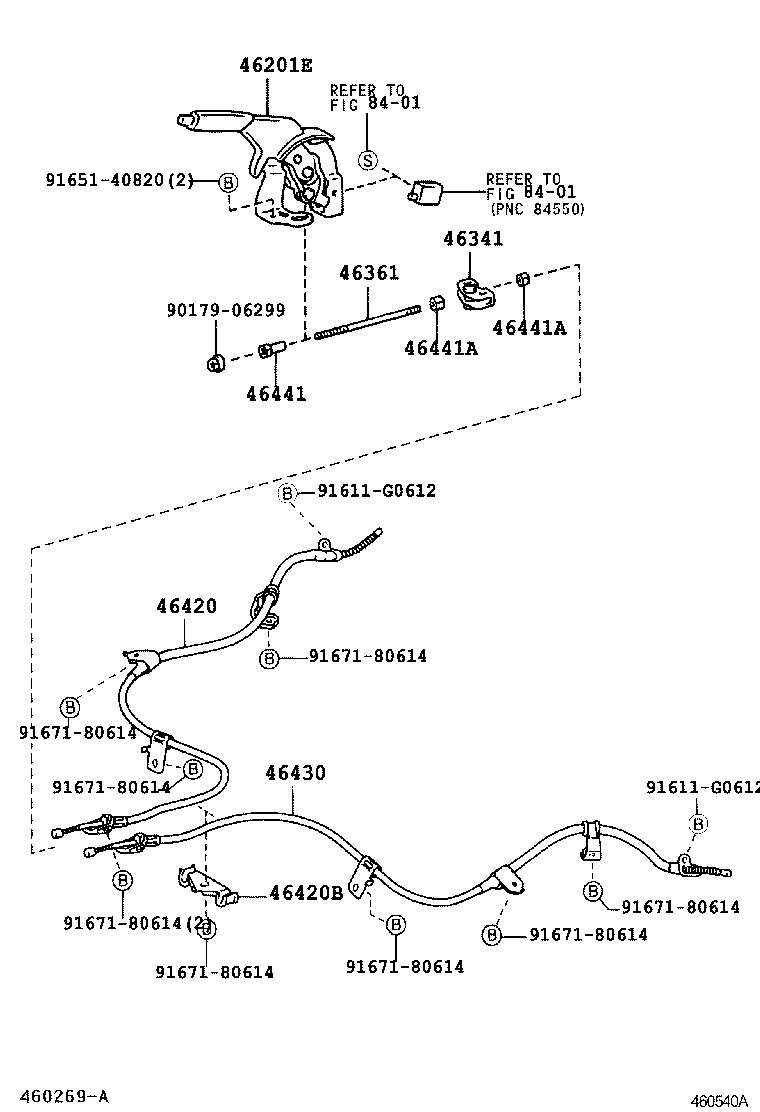

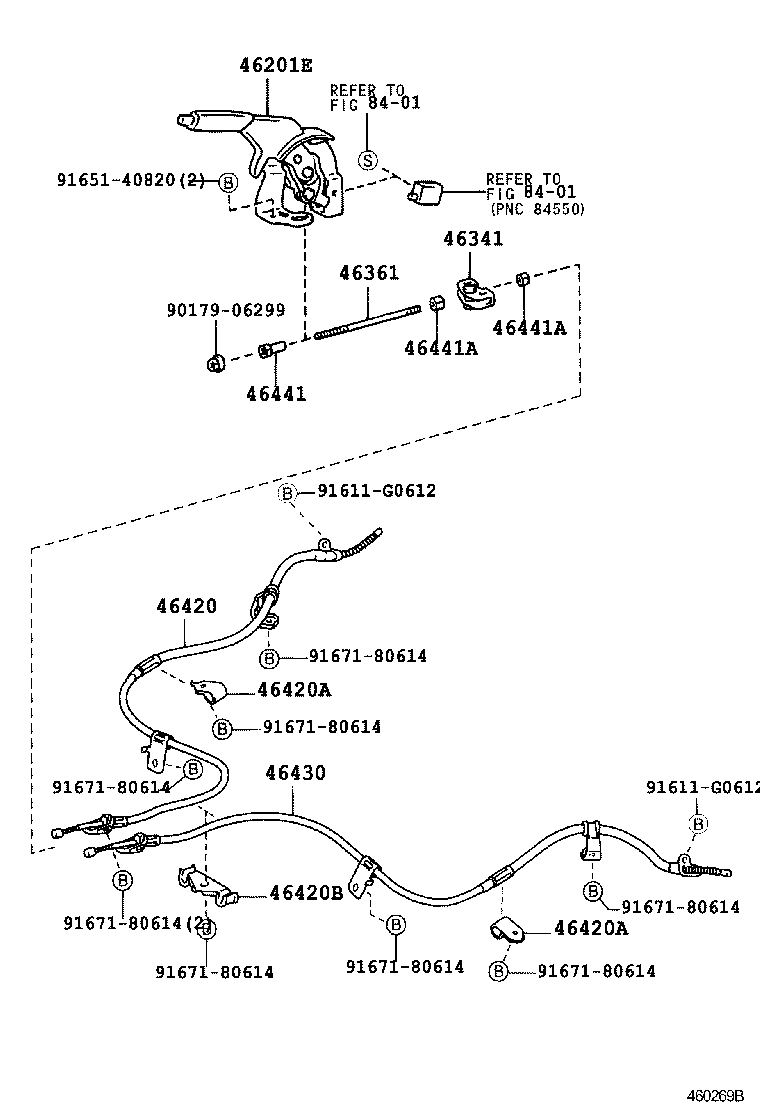

Figure 460242B 460242B 1999-08 → — Figure 460269B 460269B 1999-08 → 2003-02 Figure 460540A 460540A 2003-02 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46341 Equalizer, Parking Brake
46361 Rod, Parking Brake Pull
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
