Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 2 illustrations

Illustrations

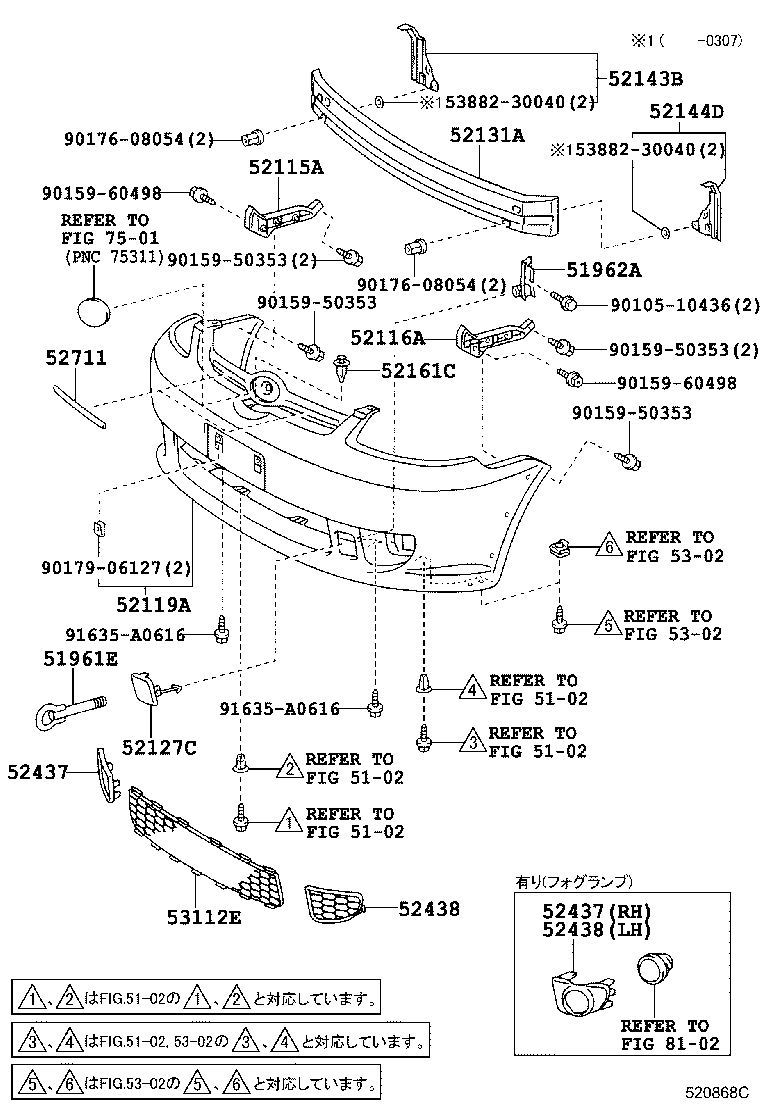

Figure 520539F 520539F 1999-08 → 2002-08 Figure 520868C 520868C 2002-08 → —

Part groups

PNCDescription
51961E Hook, Front
51962A Hook, Front LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52143B Bracket, Front Bumper Side
52144D Bracket, Front Bumper Side, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
