Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

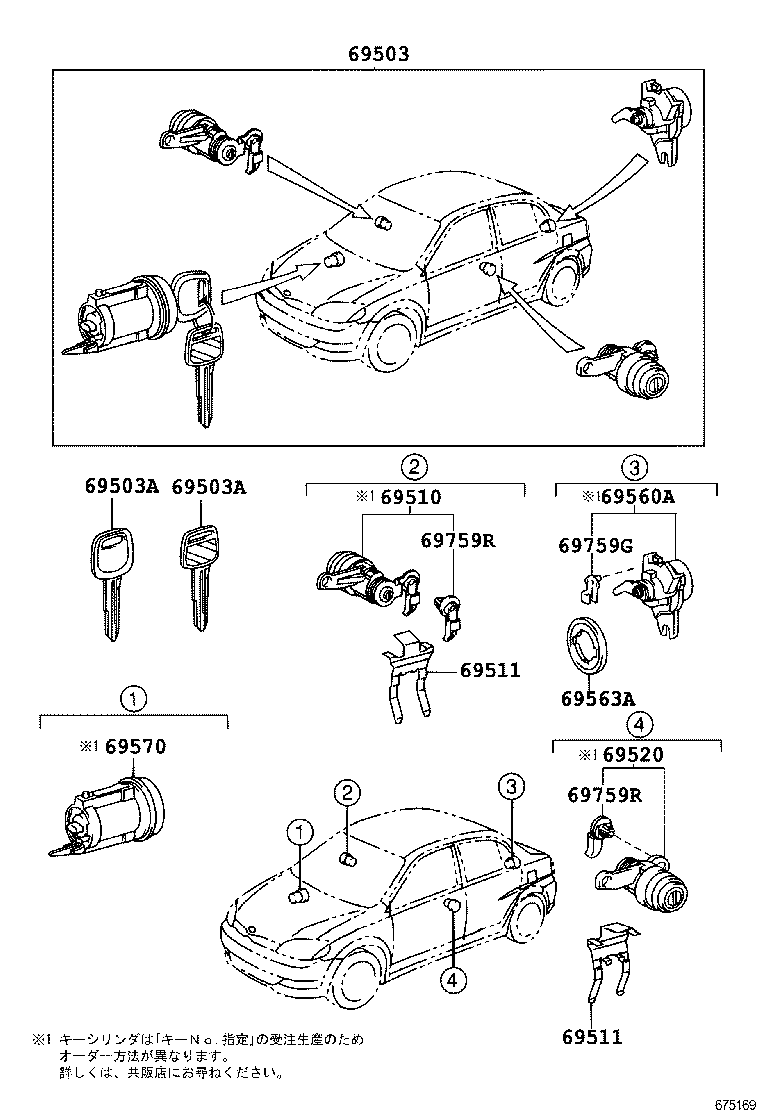

Figure 671689B 671689B 1999-08 → 2002-08 Figure 675169A 675169A 2002-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69511 Retainer, Front Door Lock Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69560A Cylinder Assy, Luggage Compartment Door Lock
69563A Pad, Luggage Compartment Door Lock Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
