Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

32 part groups · 5 illustrations

Illustrations

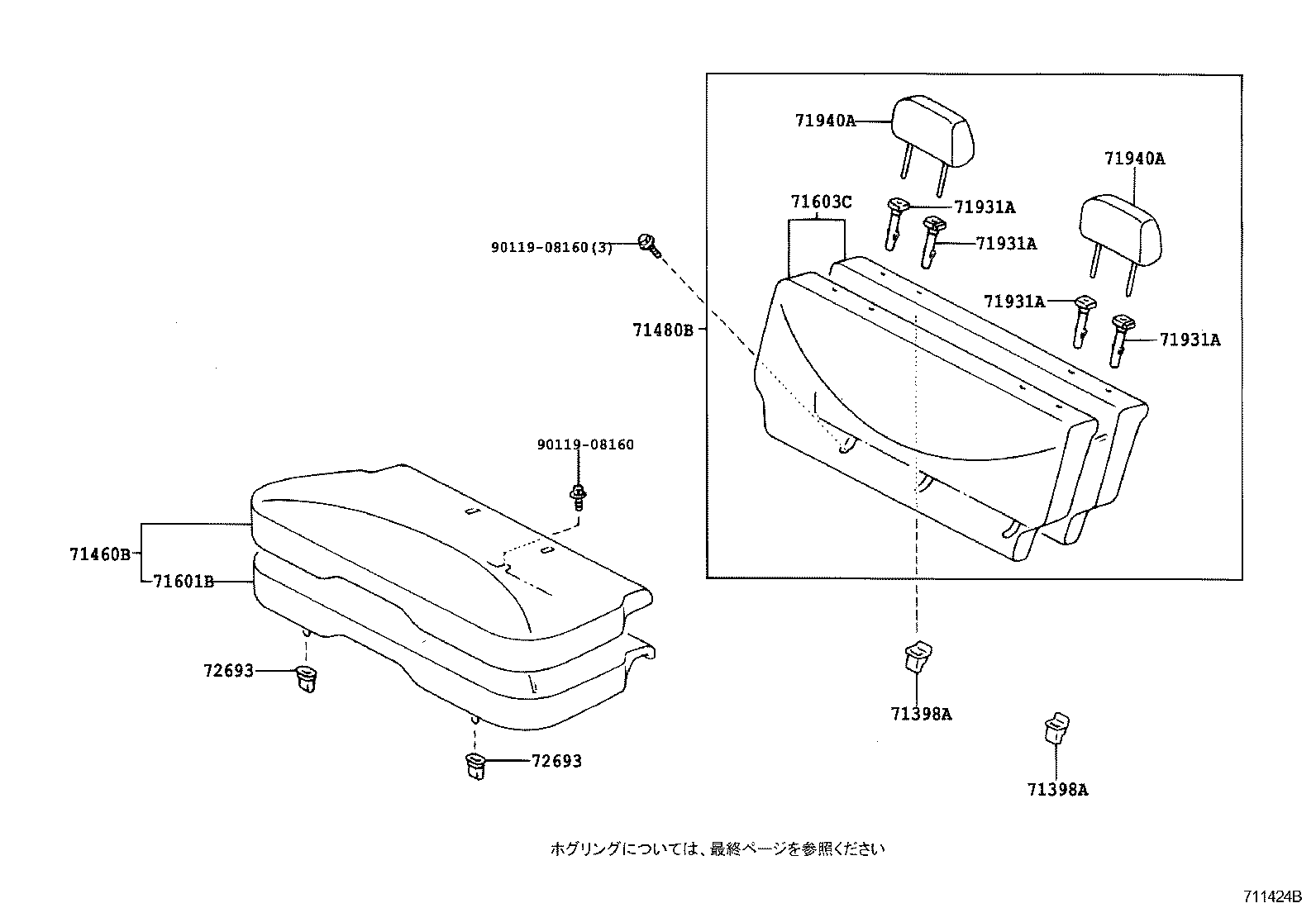

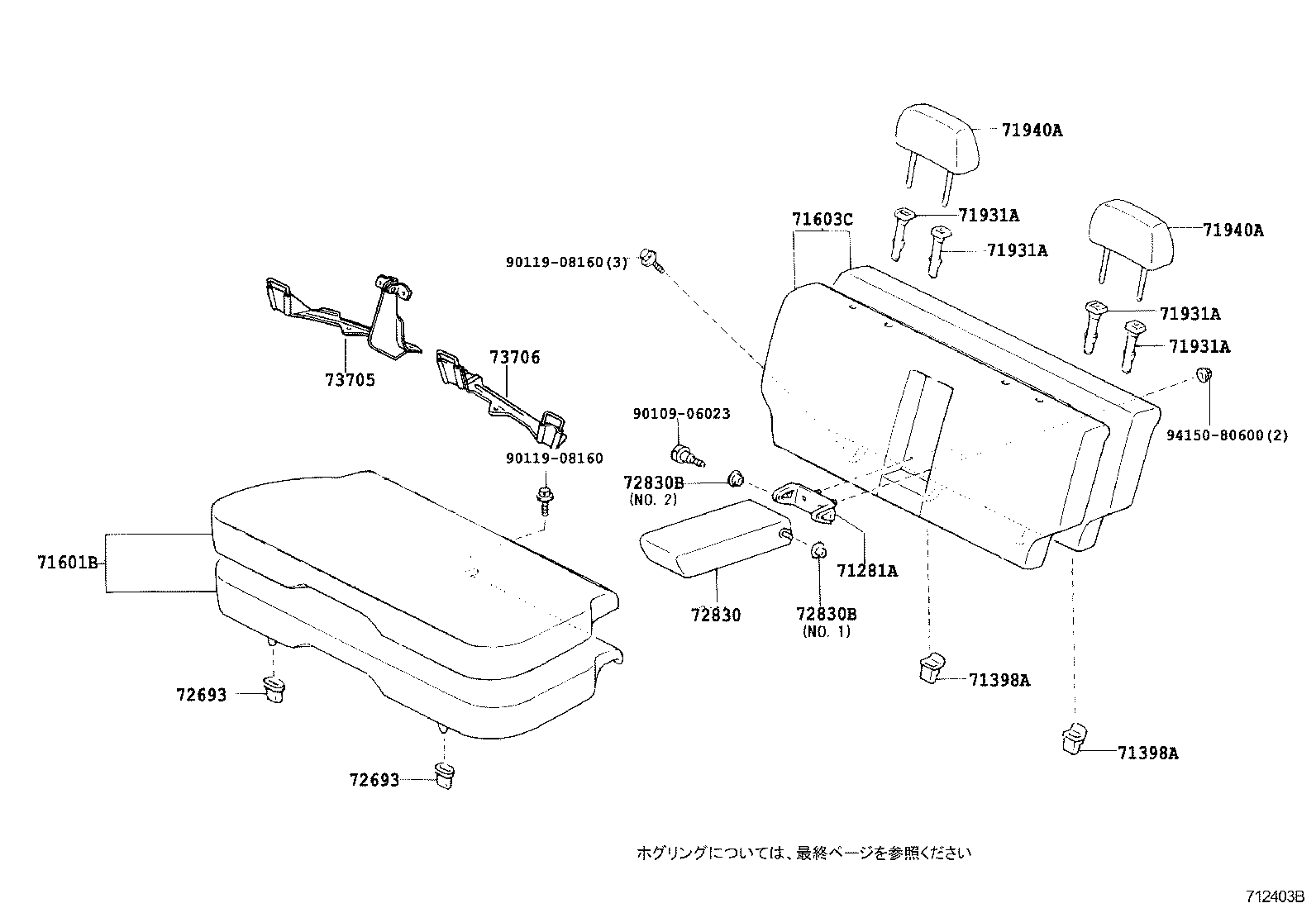

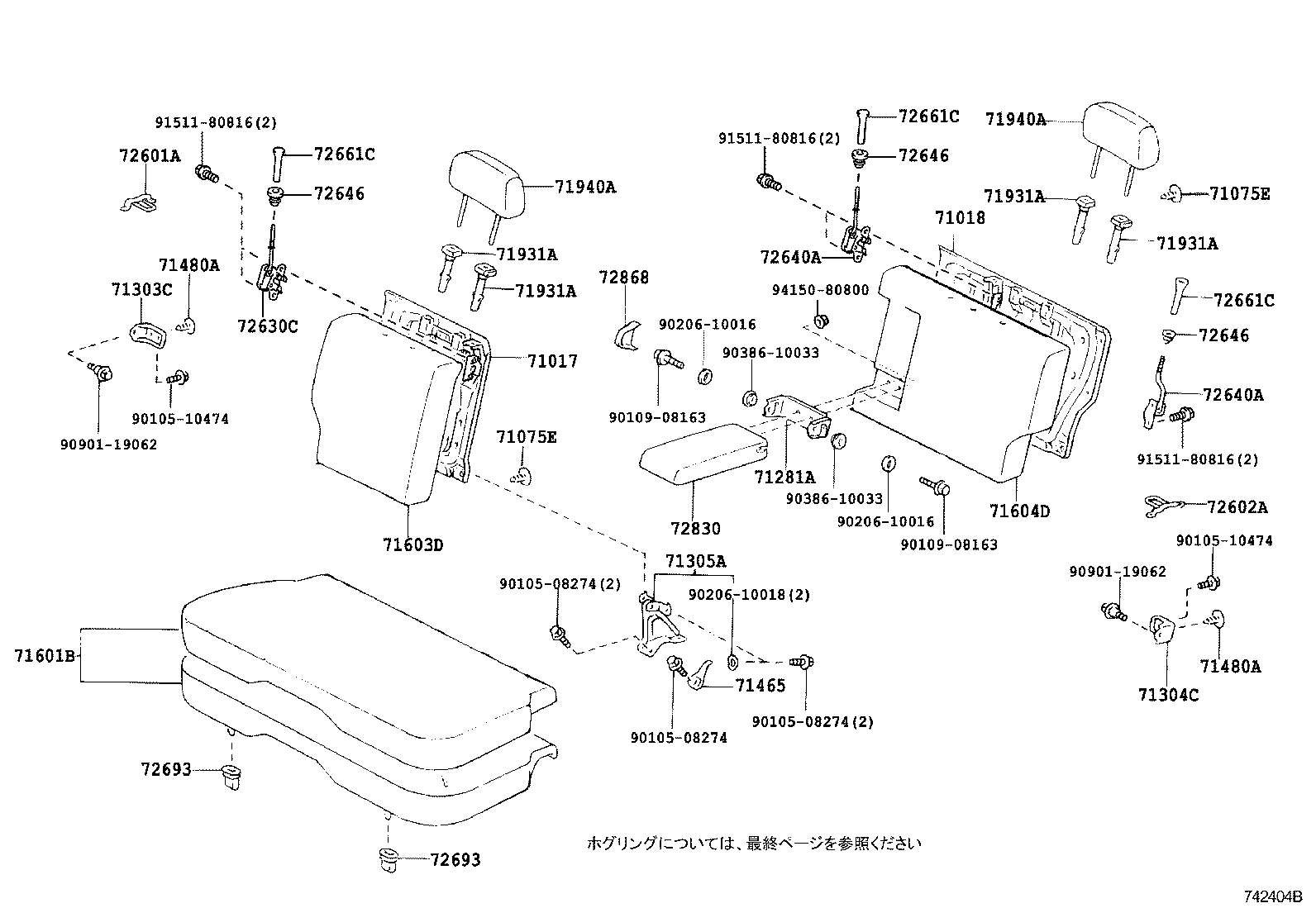

Figure 711423C 711423C 1999-08 → 2002-08 Figure 711424B 711424B 1999-08 → 2002-08 Figure 712404B 712404B 2002-08 → — Figure 712403B 712403B 2002-08 → — Figure 718165A 718165A 1999-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075E Clip(FOR REAR SEAT)
71281A Hinge, Rear Seat Center Armrest
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71465 Spring, Rear Seat Cushion, NO.5
71480A Clip (FOR REAR SEATBACK)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71601B Pad Sub-assy, Rear Seat Cushion W/Cover
71603C Pad Sub-assy, Rear Seatback W/Cover
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72868 Cover, Center Armrest Hinge, RH
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
