Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 2 illustrations

Illustrations

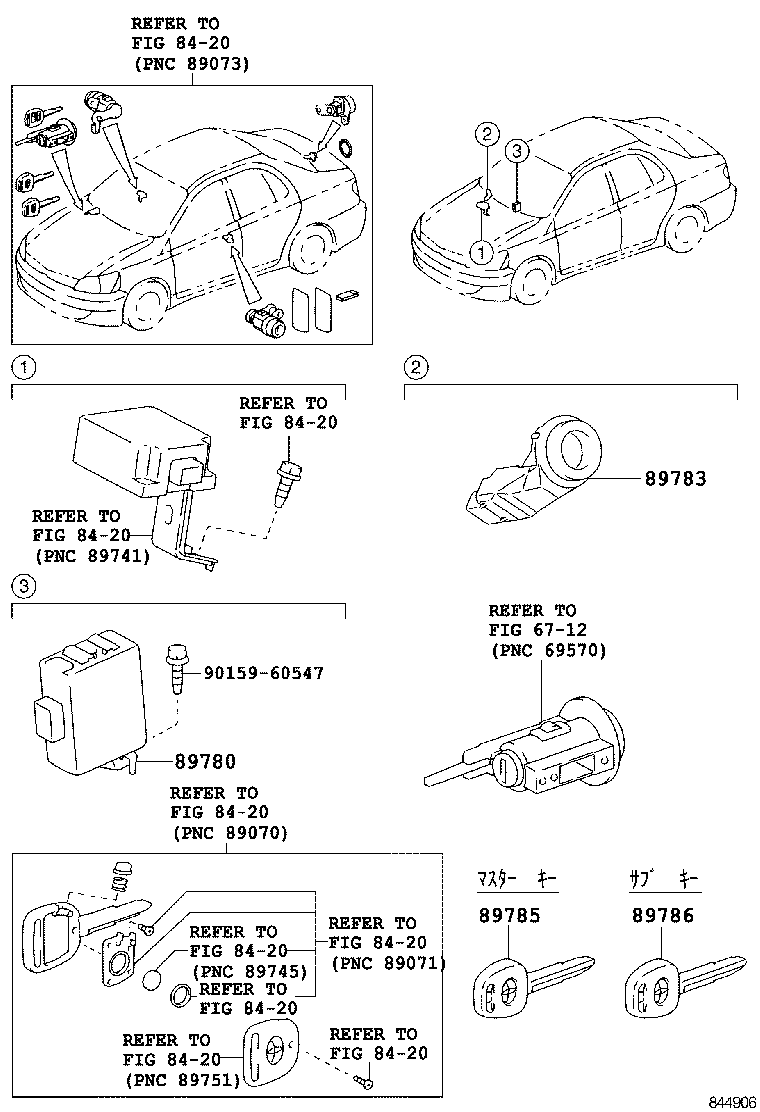

Figure 844905B 844905B 2002-08 → — Figure 844906B 844906B 2002-08 → —

Part groups

PNCDescription
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
