Factory parts data · Europe

Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

Figure 860867E

860867E 1999-08 → —

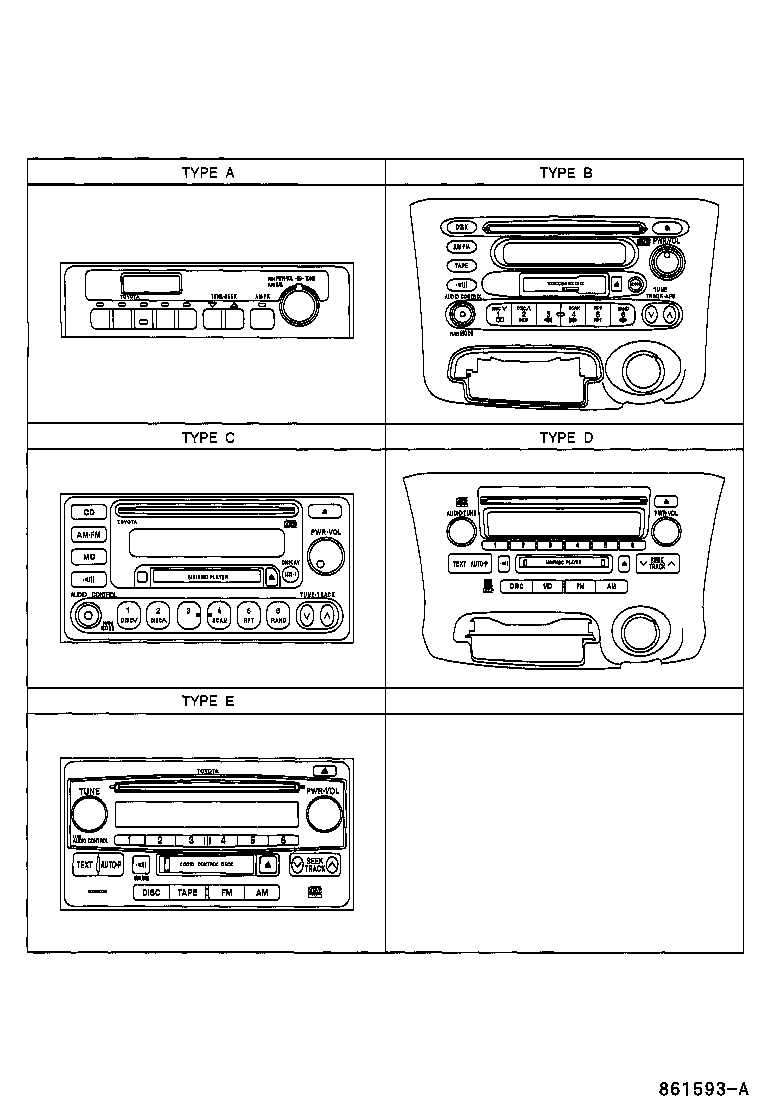

Figure 861593A

861593A 1999-08 → —

Figure 860933D

860933D 1999-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011Q	Condenser, Radio Setting
86011R	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
