Toyota Platz

1999-08 → 2005-11 · chassis NCP1#,SCP11 · catalogue 141160 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 3 illustrations

Illustrations

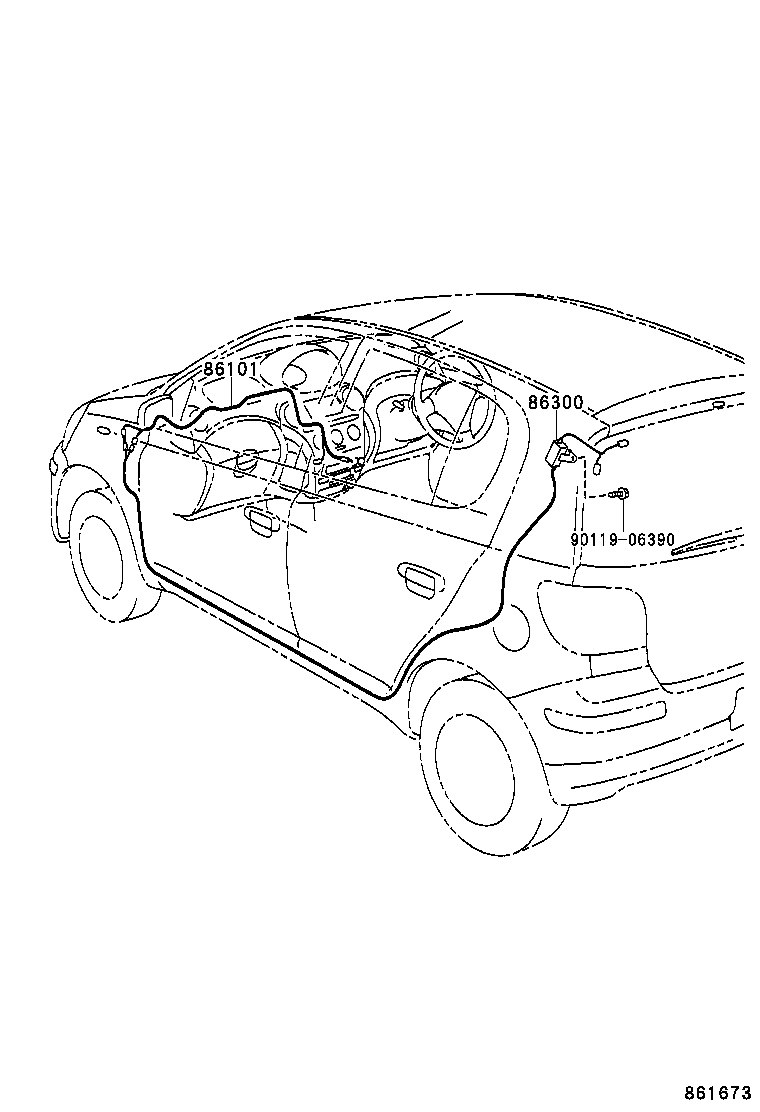

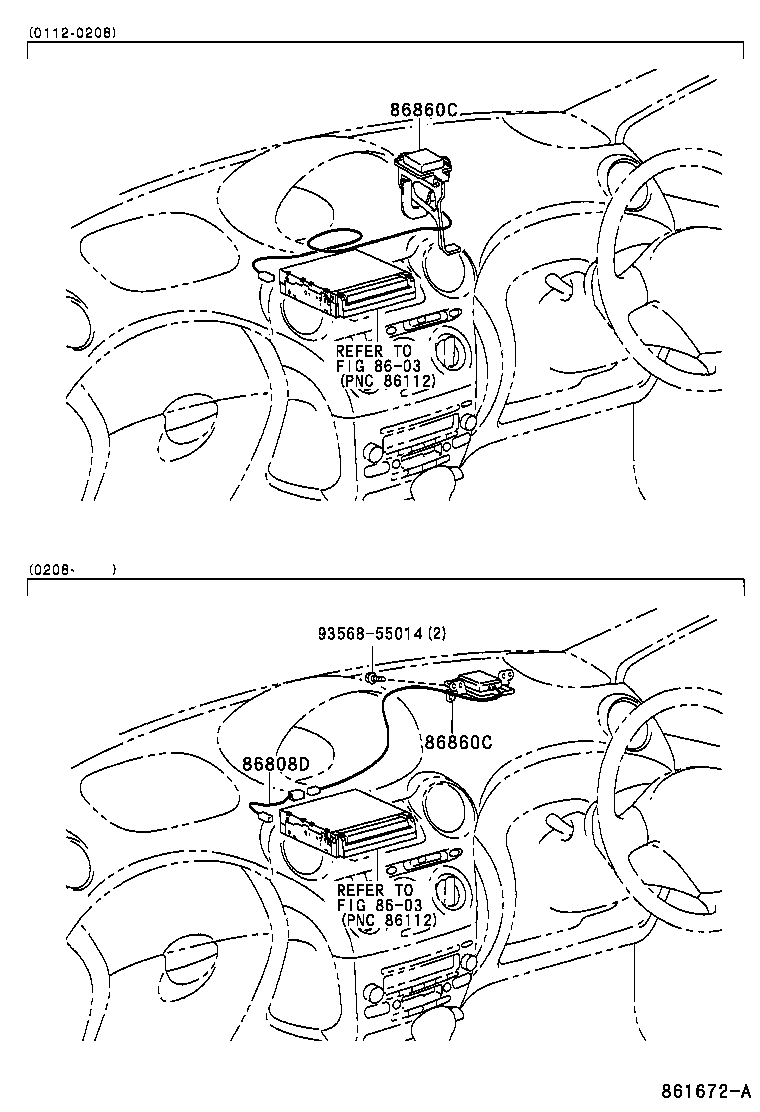

Figure 860937B 860937B 1999-08 → 2002-08 Figure 861673 861673 2002-08 → — Figure 861672A 861672A 2001-12 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86808D Cord Sub-assy, Navigation Antenna
86860C Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
