Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

15 part groups · 2 illustrations

Illustrations

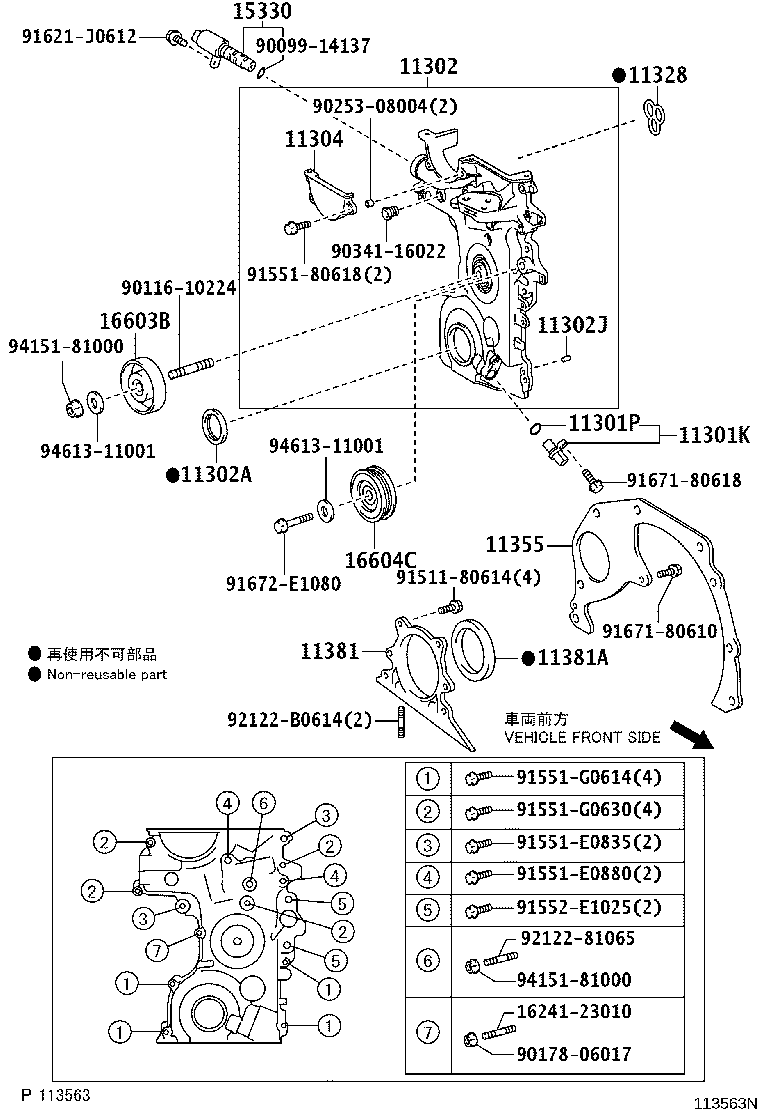

Figure 113537P 113537P 2005-11 → — Figure 113563N 113563N 2005-11 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15193A Gasket, Oil Pump
15330 Valve Assy, Cam Timing Oil Control
16603B Pulley Sub-assy, Idler
16604C Pulley Sub-assy, Idler, NO.2
