Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 4 illustrations

Illustrations

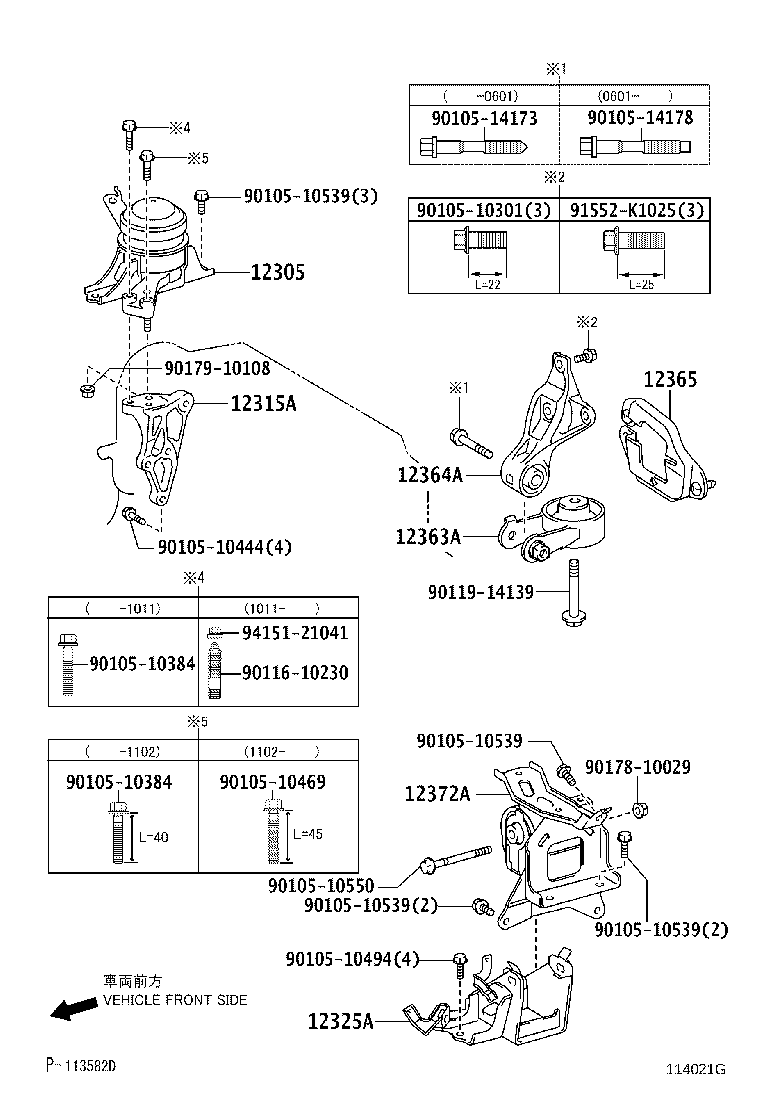

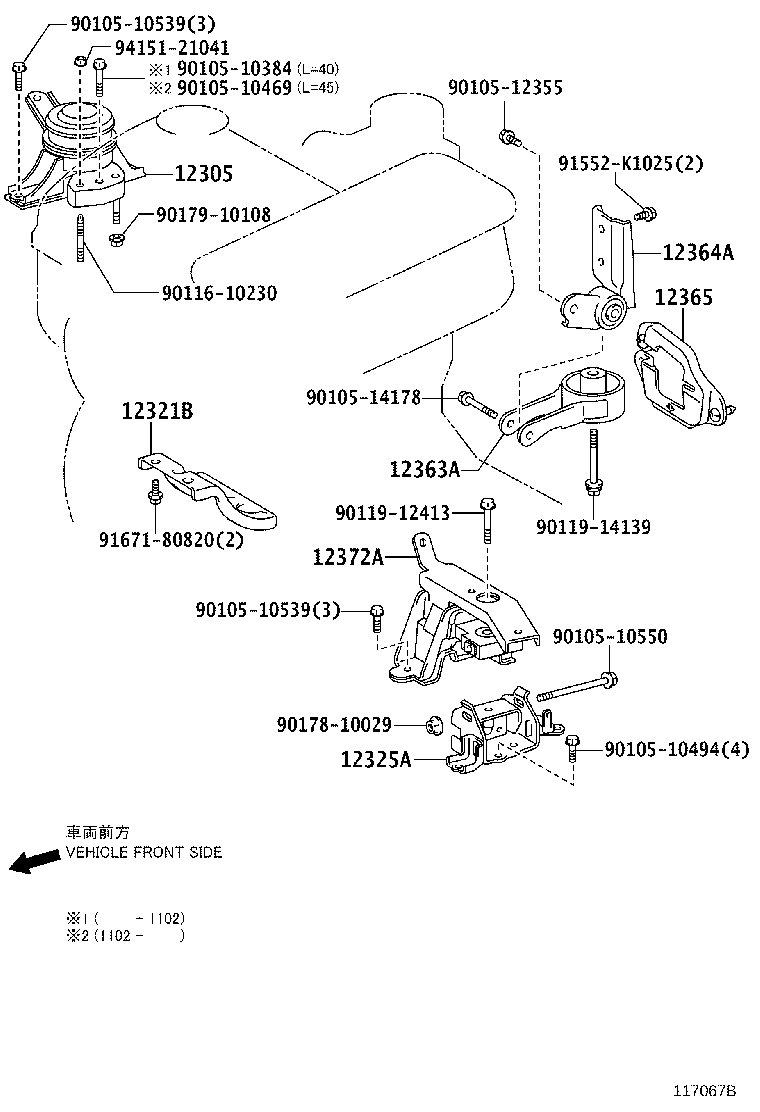

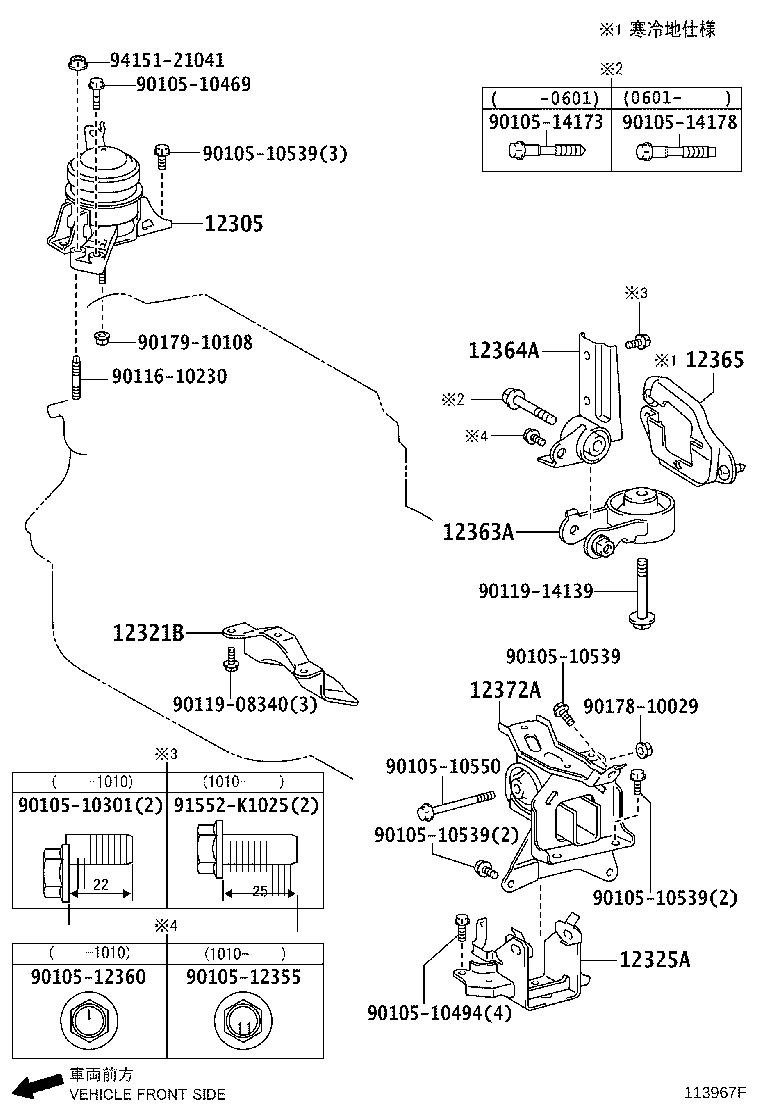

Figure 113960M 113960M 2005-11 → 2010-11 Figure 117067B 117067B 2010-11 → — Figure 114021G 114021G 2005-11 → — Figure 113967F 113967F 2005-11 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12364A Rod, Engine Lateral Control
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
