Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

21 part groups · 3 illustrations

Illustrations

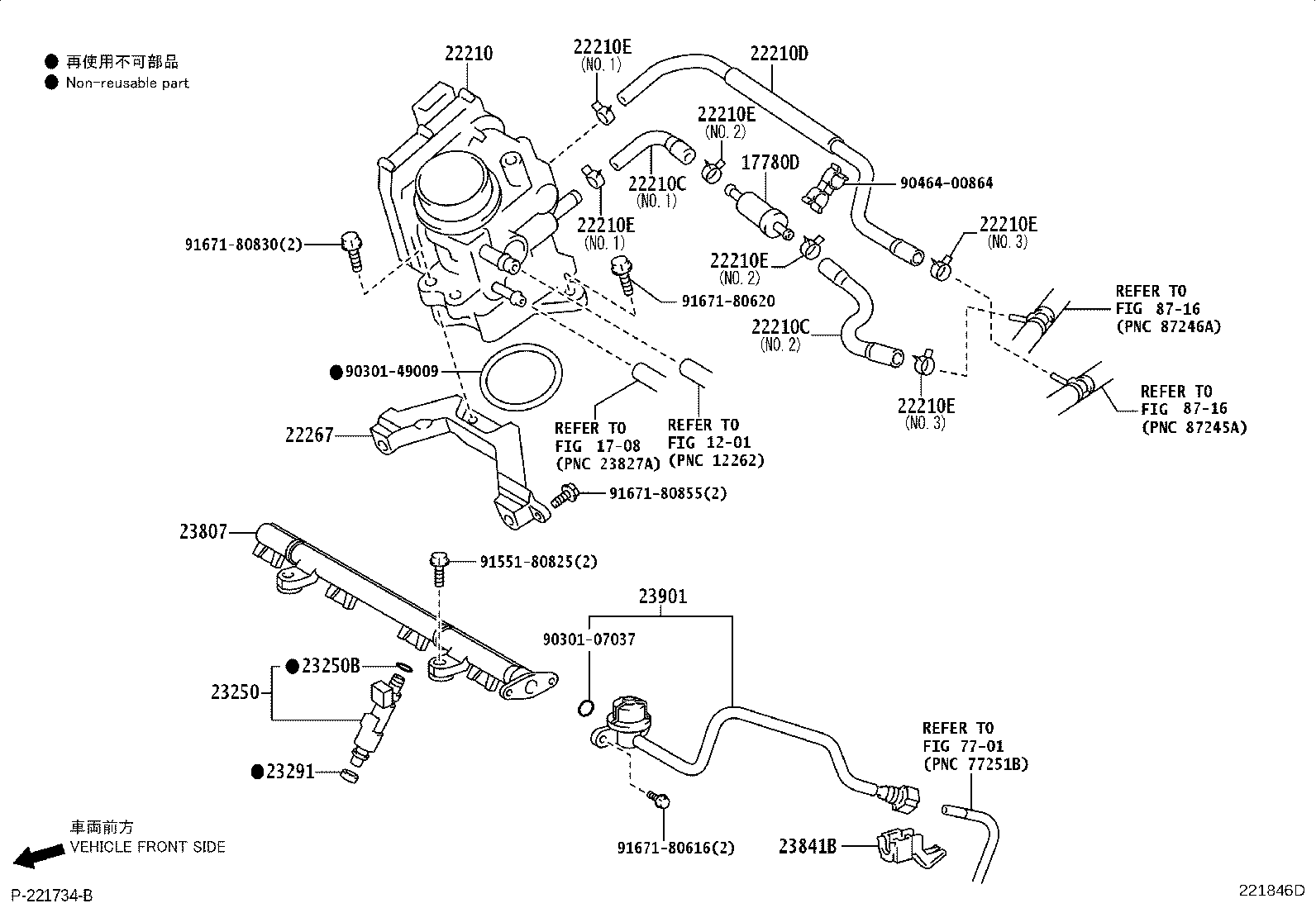

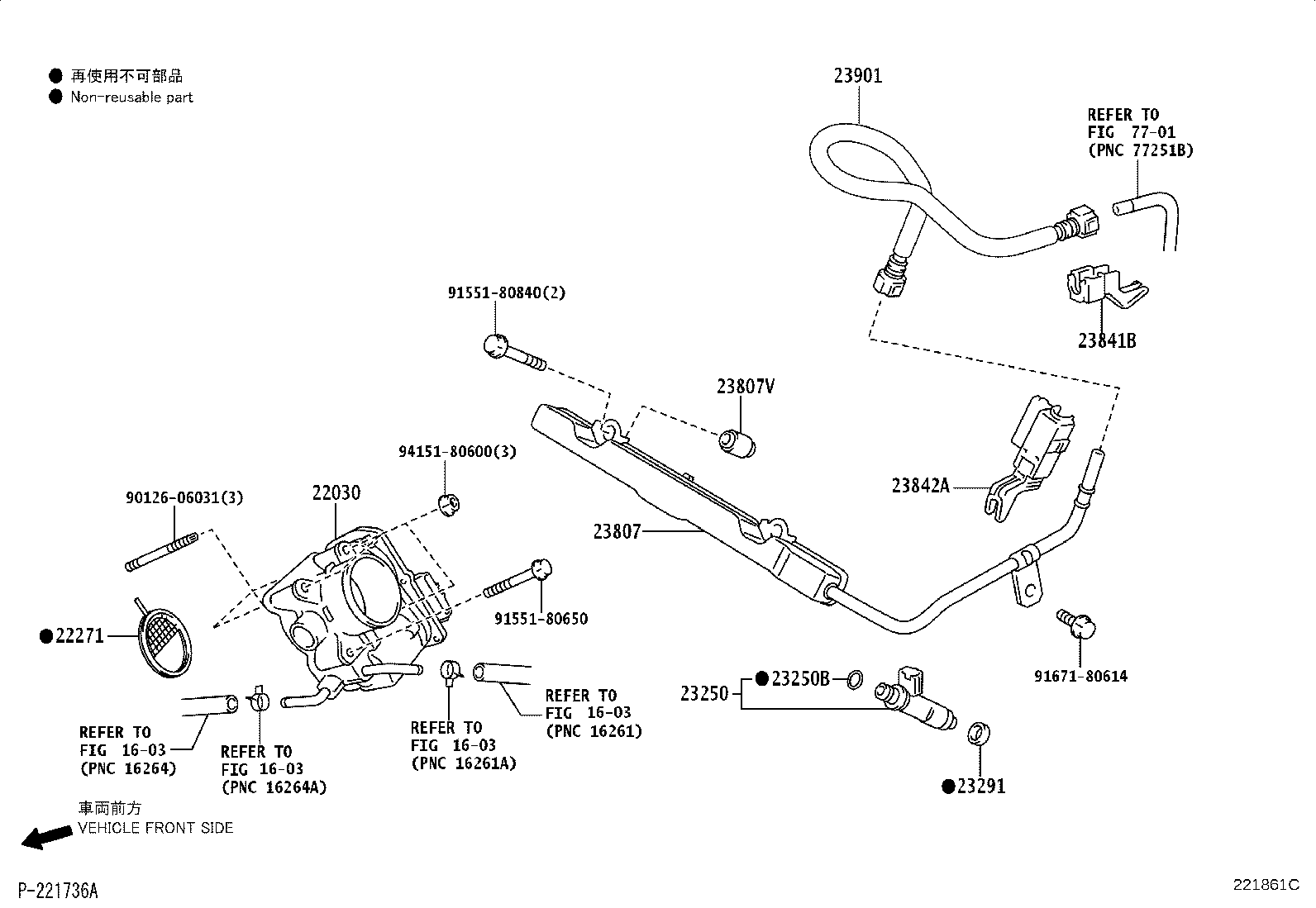

Figure 222274A 222274A 2005-11 → — Figure 221861C 221861C 2005-11 → — Figure 221846D 221846D 2005-11 → —

Part groups

PNCDescription
17780D Valve Assy, Thermostat
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23804 Pipe Sub-assy, Fuel, NO.4
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
