Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

5 part groups · 2 illustrations

Illustrations

Figure 250335A

250335A 2005-11 → —

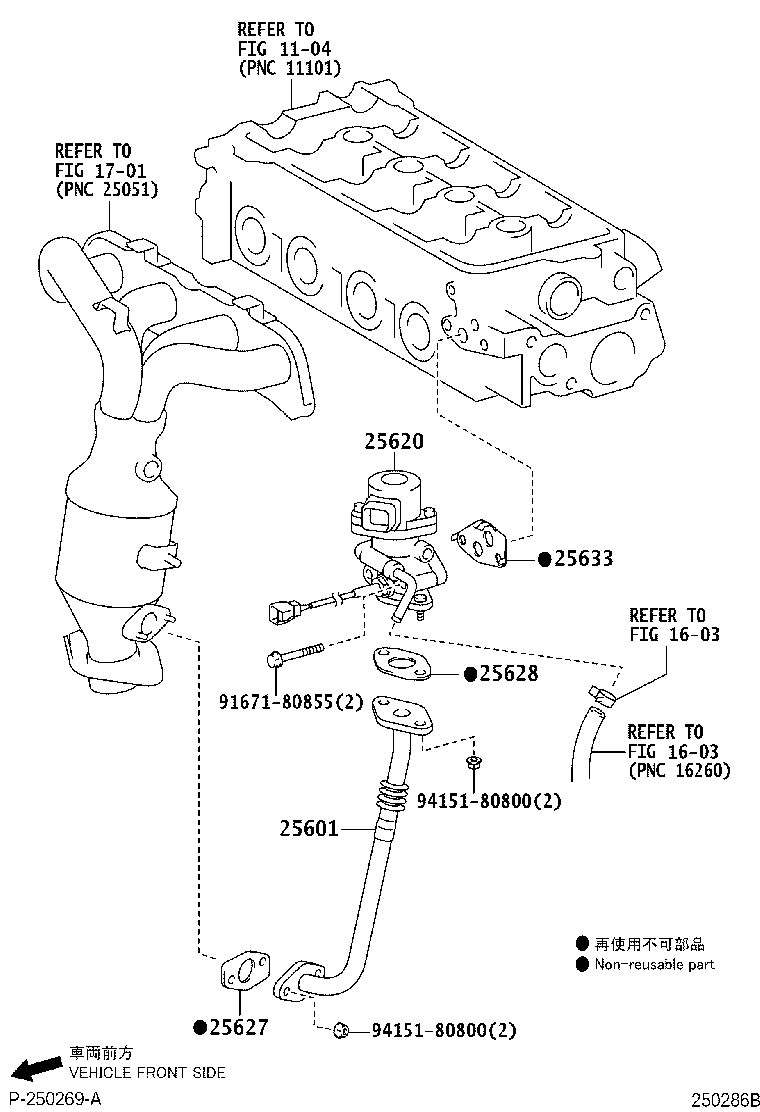

Figure 250286B

250286B 2005-11 → —

Part groups

PNC	Description
25601	Pipe Sub-assy, Egr, NO.1
25620	Valve Assy, Egr
25627	Gasket, Egr Valve
25628	Gasket, Egr Inlet
25633	Gasket, Egr Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
