Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

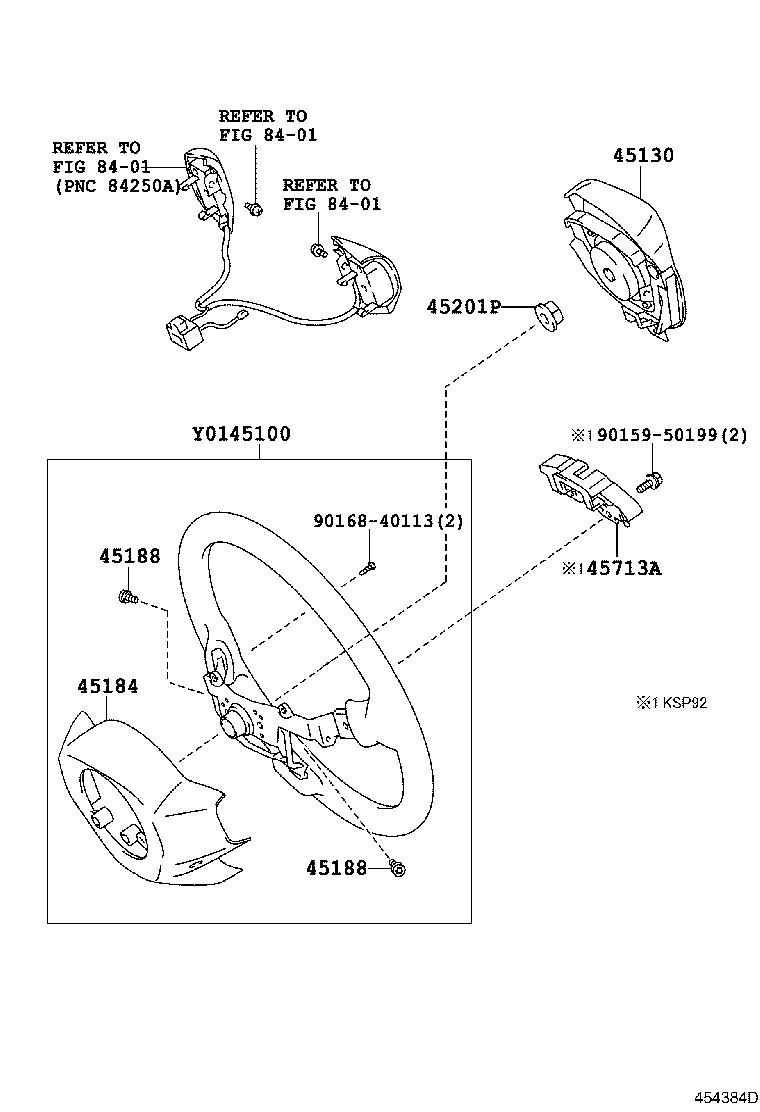

Figure 454383B 454383B 2005-11 → — Figure 454384D 454384D 2005-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
