Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

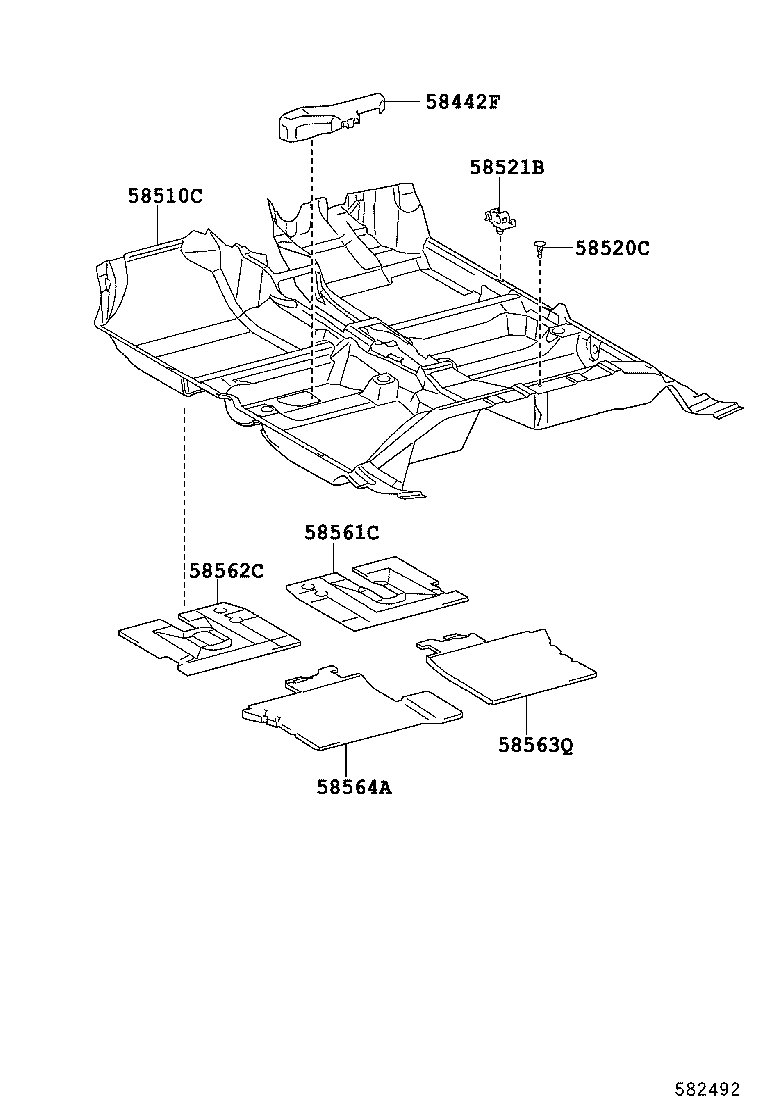

Figure 583897 583897 2005-11 → — Figure 582492 582492 2005-11 → —

Part groups

PNCDescription
58442F Cover, Jack
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
