Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

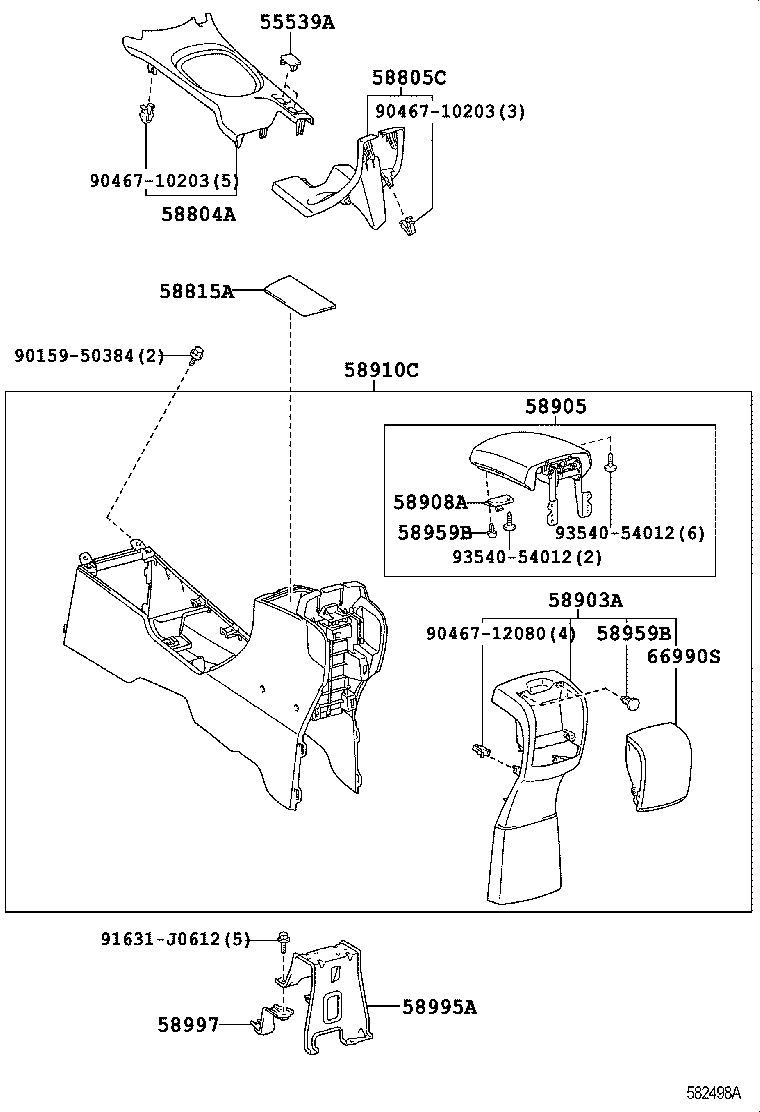

Figure 582497B 582497B 2005-11 → — Figure 582498A 582498A 2005-11 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58815A Carpet, Console Box
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
66990S Console Box Cup Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
