Toyota Belta
2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan
Supported model
Data version 2013-01
Electronic Fuel Injection System
6 part groups · 3 illustrations

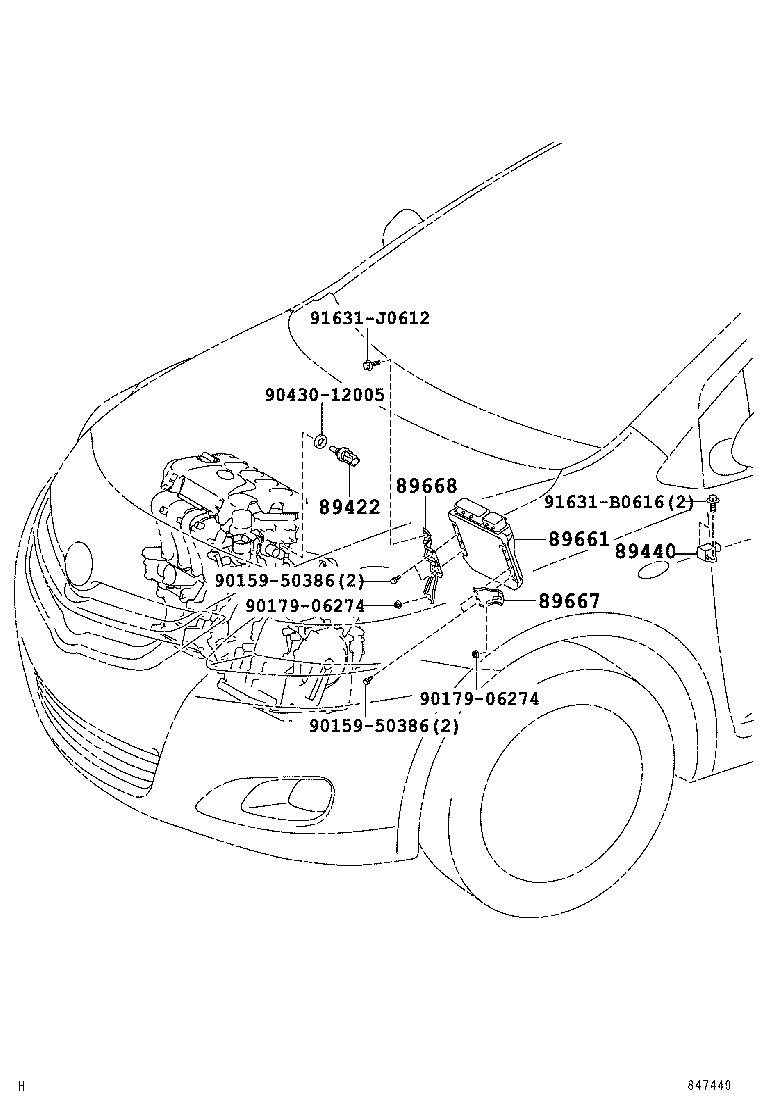

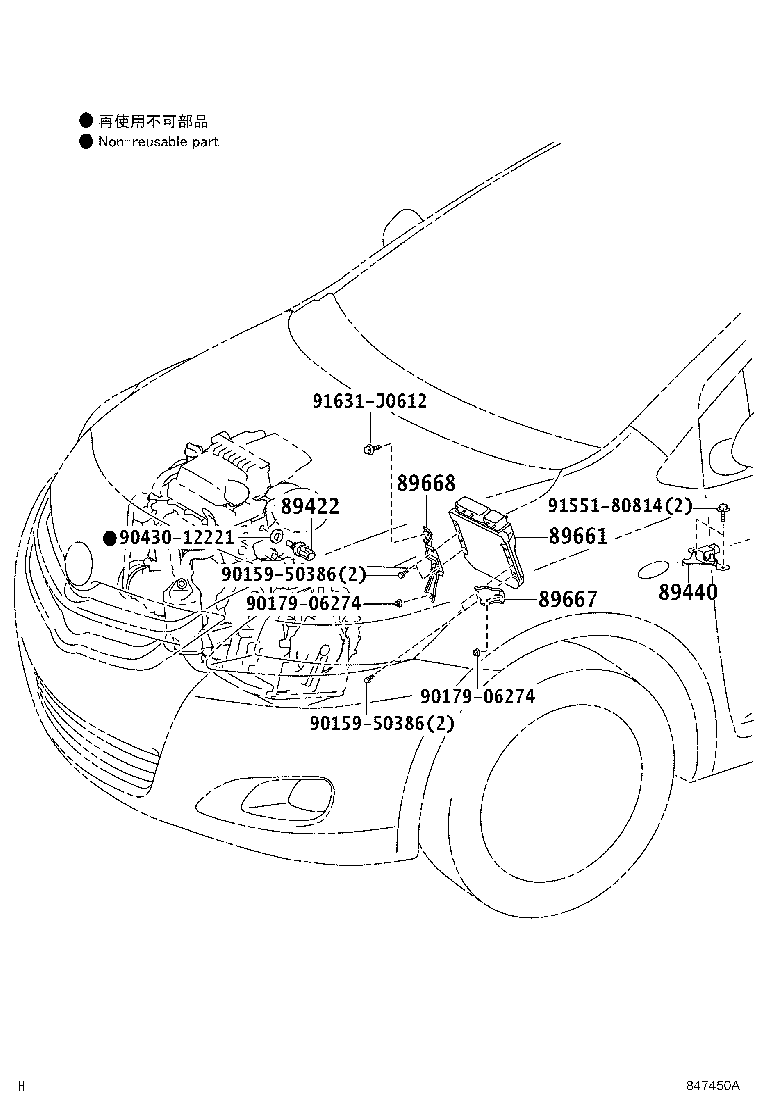

Part groups
| PNC | Description |
|---|---|
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89440 | Sensor Assy, Deceleration |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
