Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 2 illustrations

Illustrations

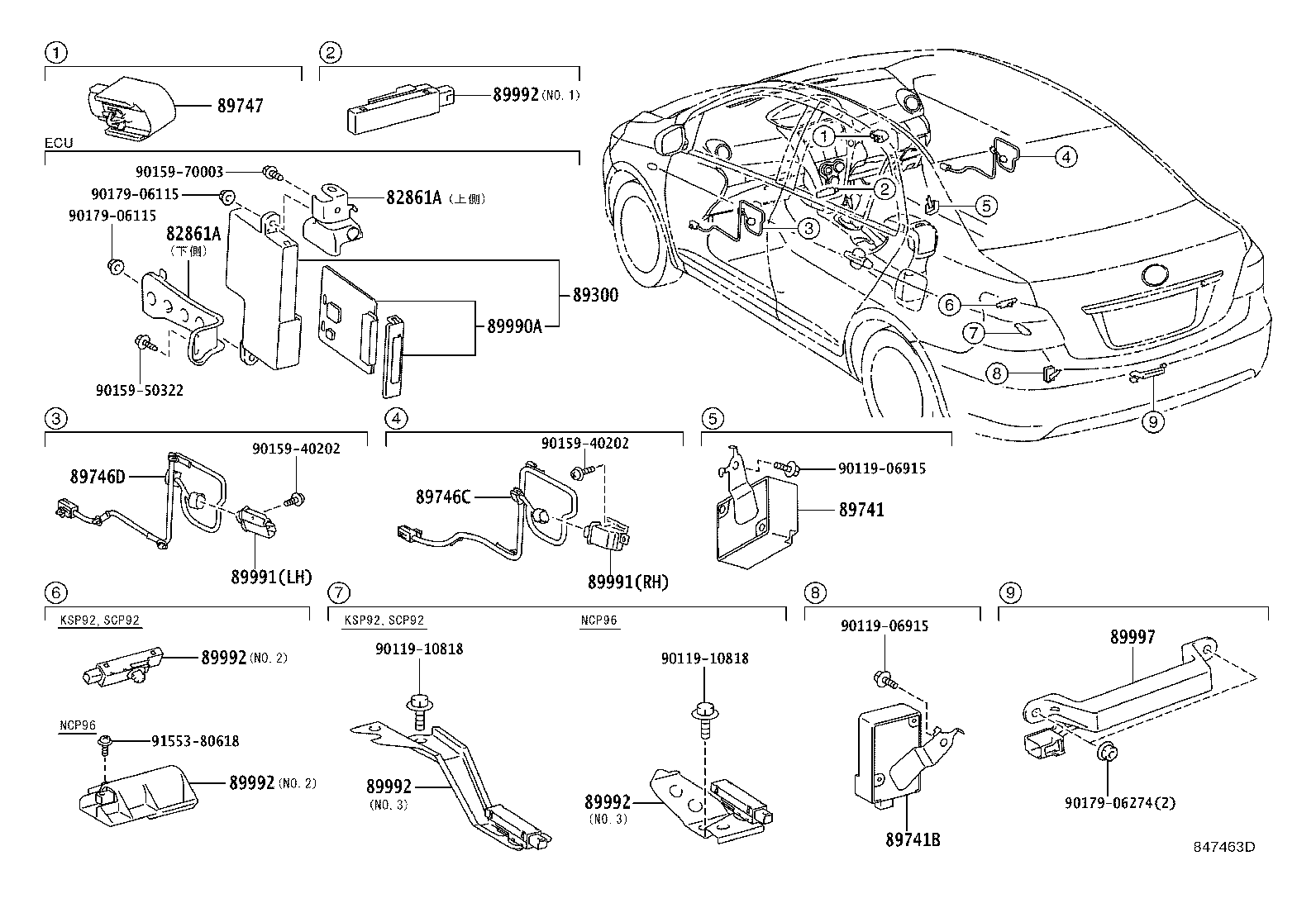

Figure 847464 847464 2005-11 → — Figure 847463D 847463D 2005-11 → —

Part groups

PNCDescription
82861A Bracket, Computer Integration, NO.1
89300 Box Assy, Ecu Aggregation
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
