Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 862681C

862681C 2005-11 → —

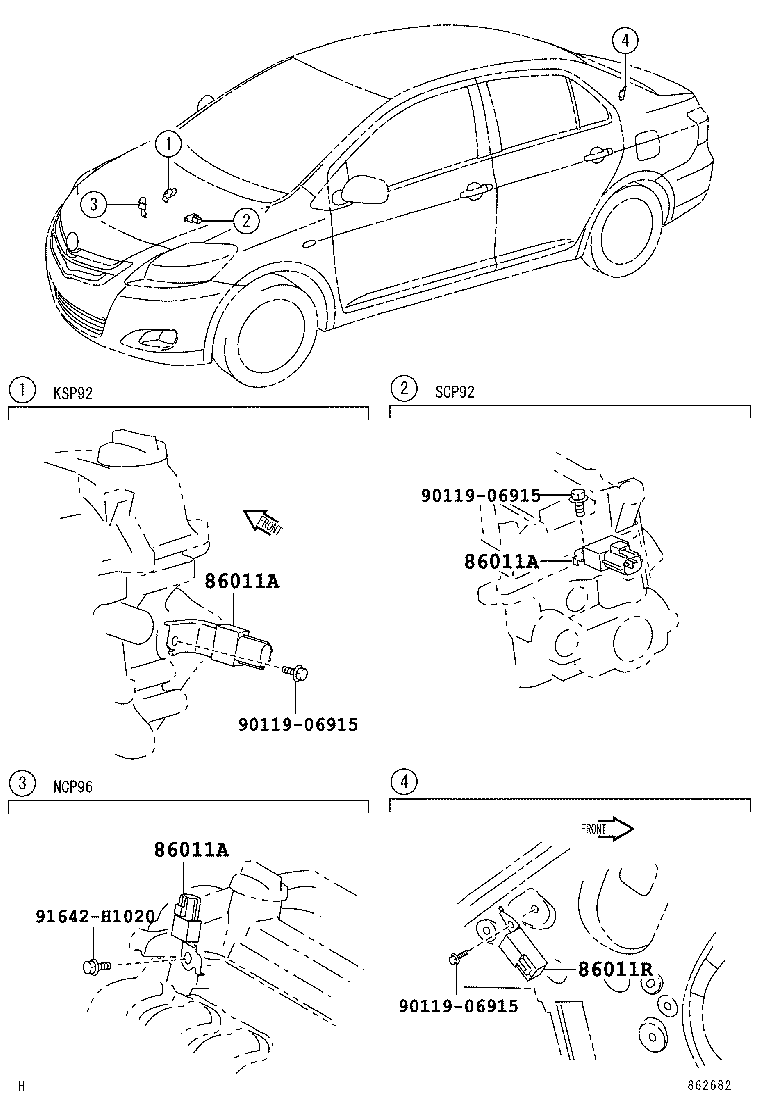

862682 2005-11 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011R	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
