Toyota Belta

2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 6 illustrations

Illustrations

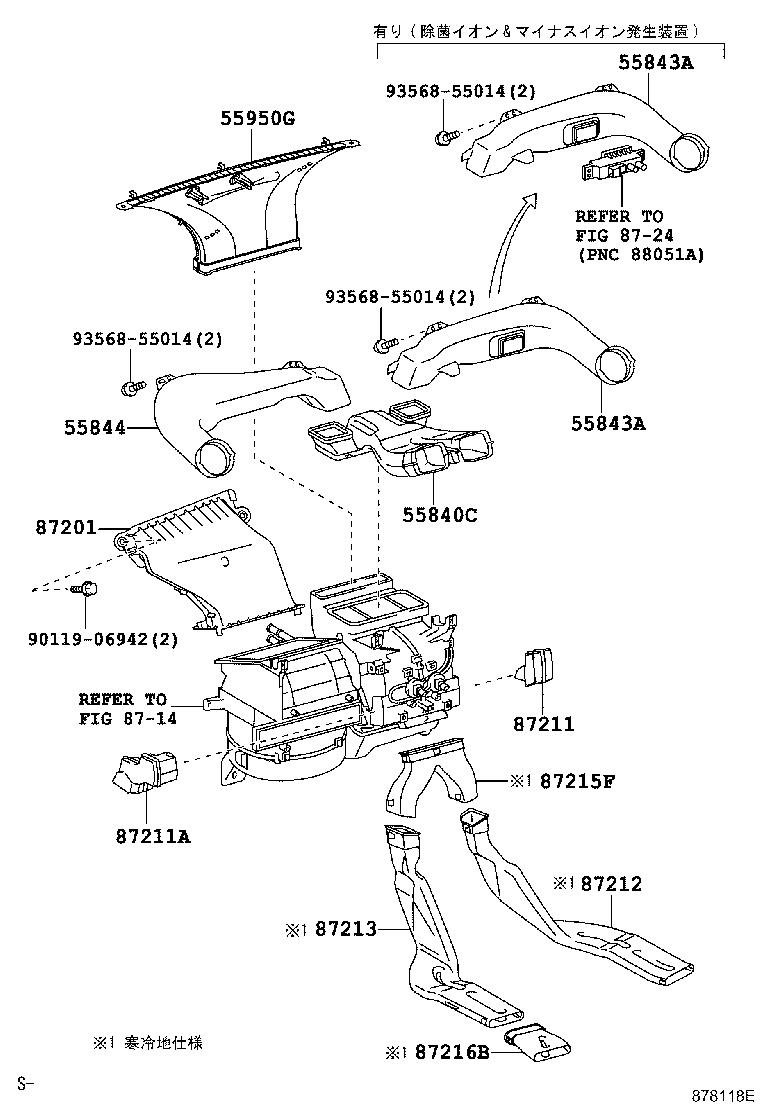

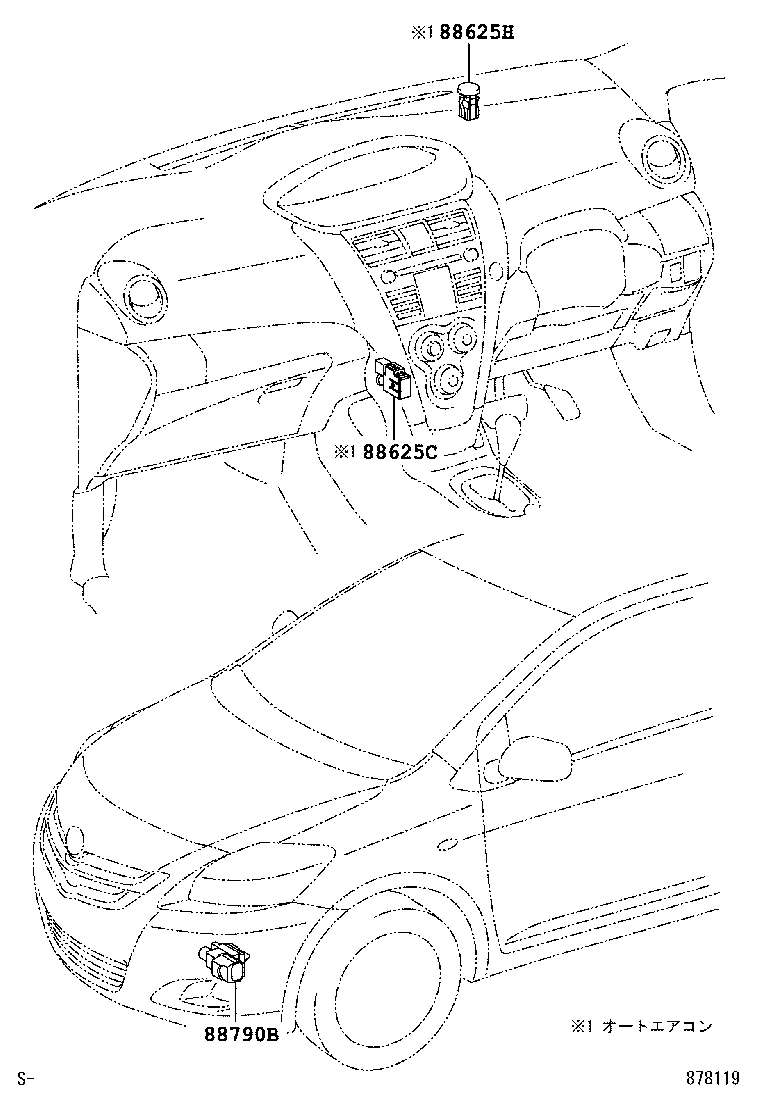

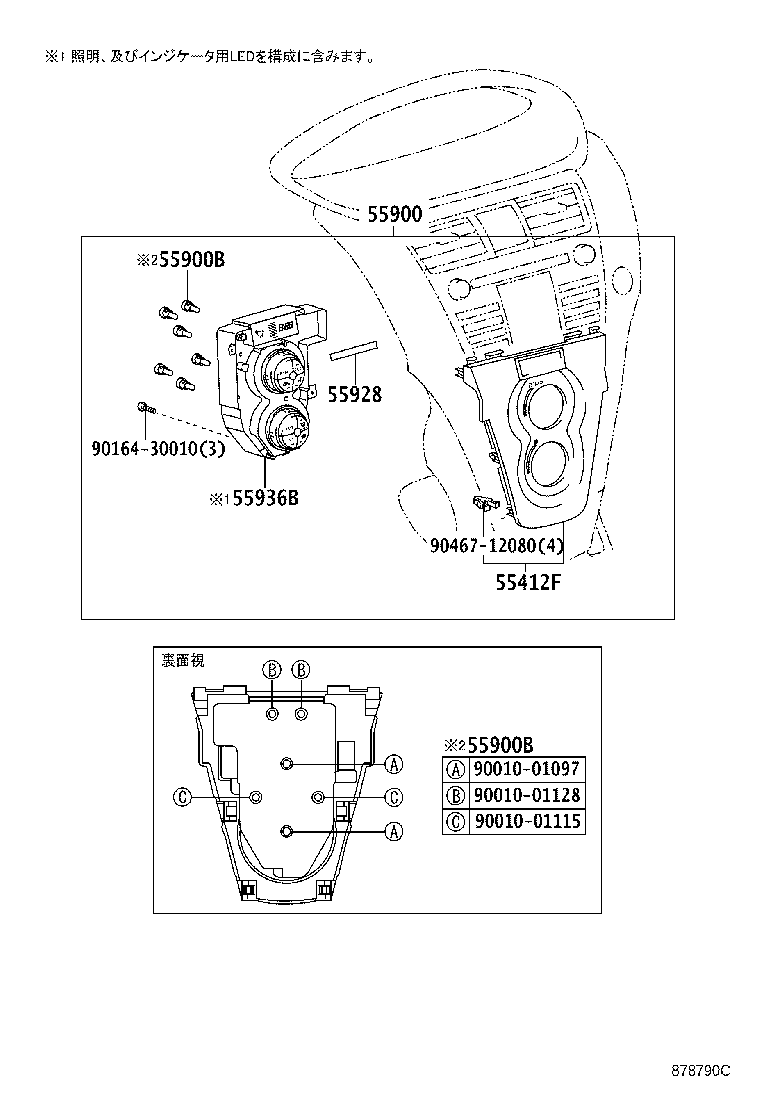

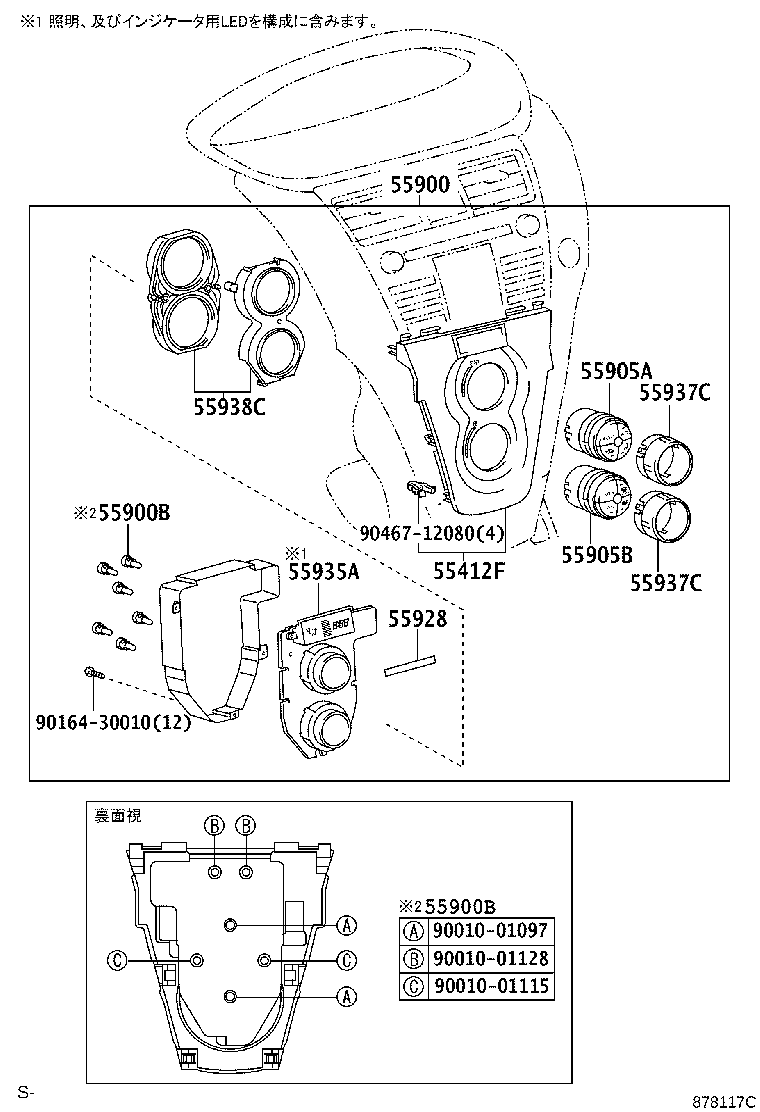

Figure 878116E 878116E 2005-11 → — Figure 878117C 878117C 2005-11 → 2006-10 Figure 878790C 878790C 2006-10 → 2008-08 Figure 878790C 878790C 2008-08 → — Figure 878118E 878118E 2005-11 → — Figure 878119 878119 2005-11 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55928 Protector, Heater Control
55935A Circuit, Center Cluster Module
55936B Switch, Center Cluster Module
55937C Knob, Center Cluster Module
55938C Lens, Center Cluster Module
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
