Toyota Belta
2005-11 → 2012-06 · chassis KSP92,NCP96,SCP92 · catalogue 141170 · Japan
Supported model
Data version 2013-01

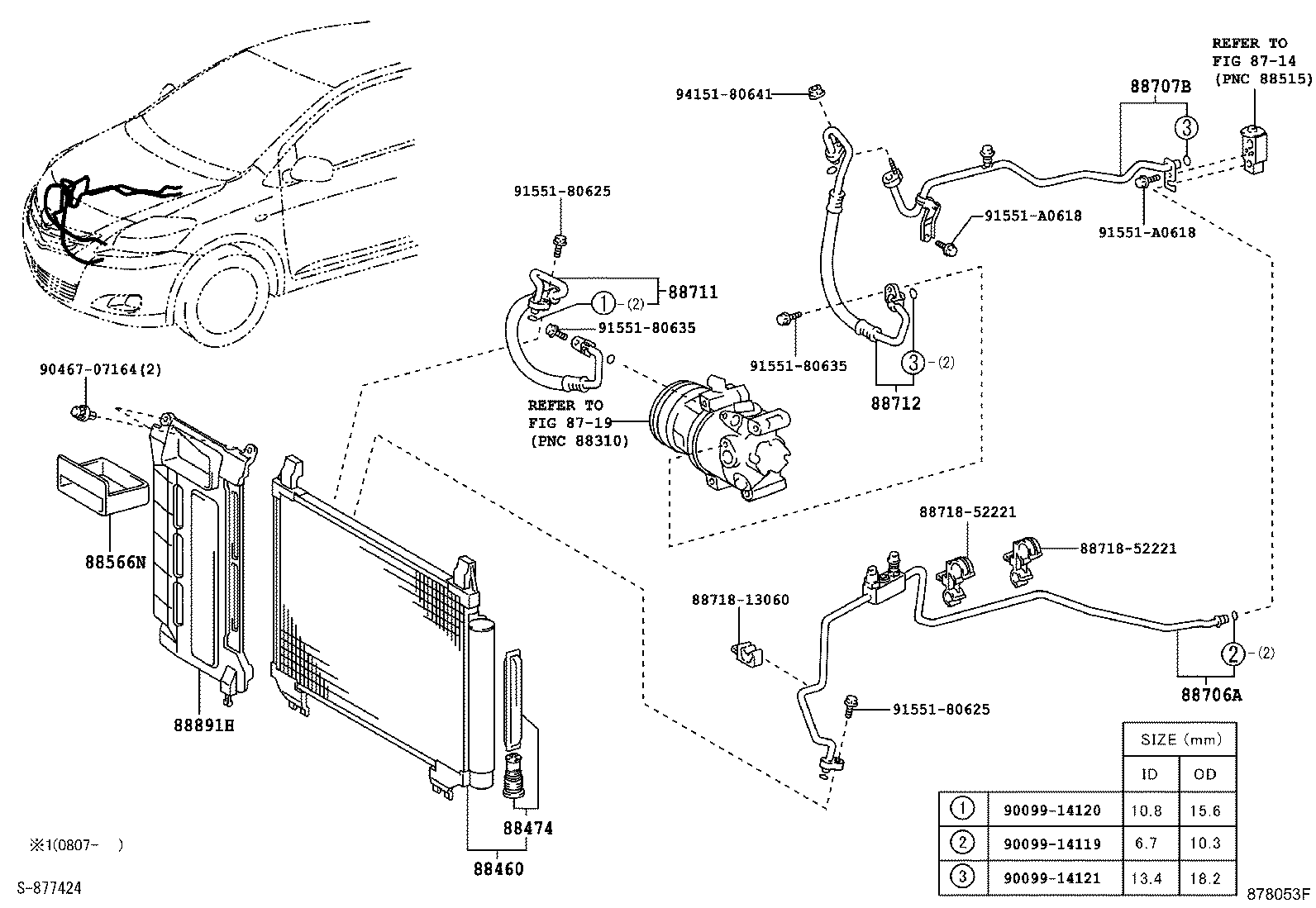

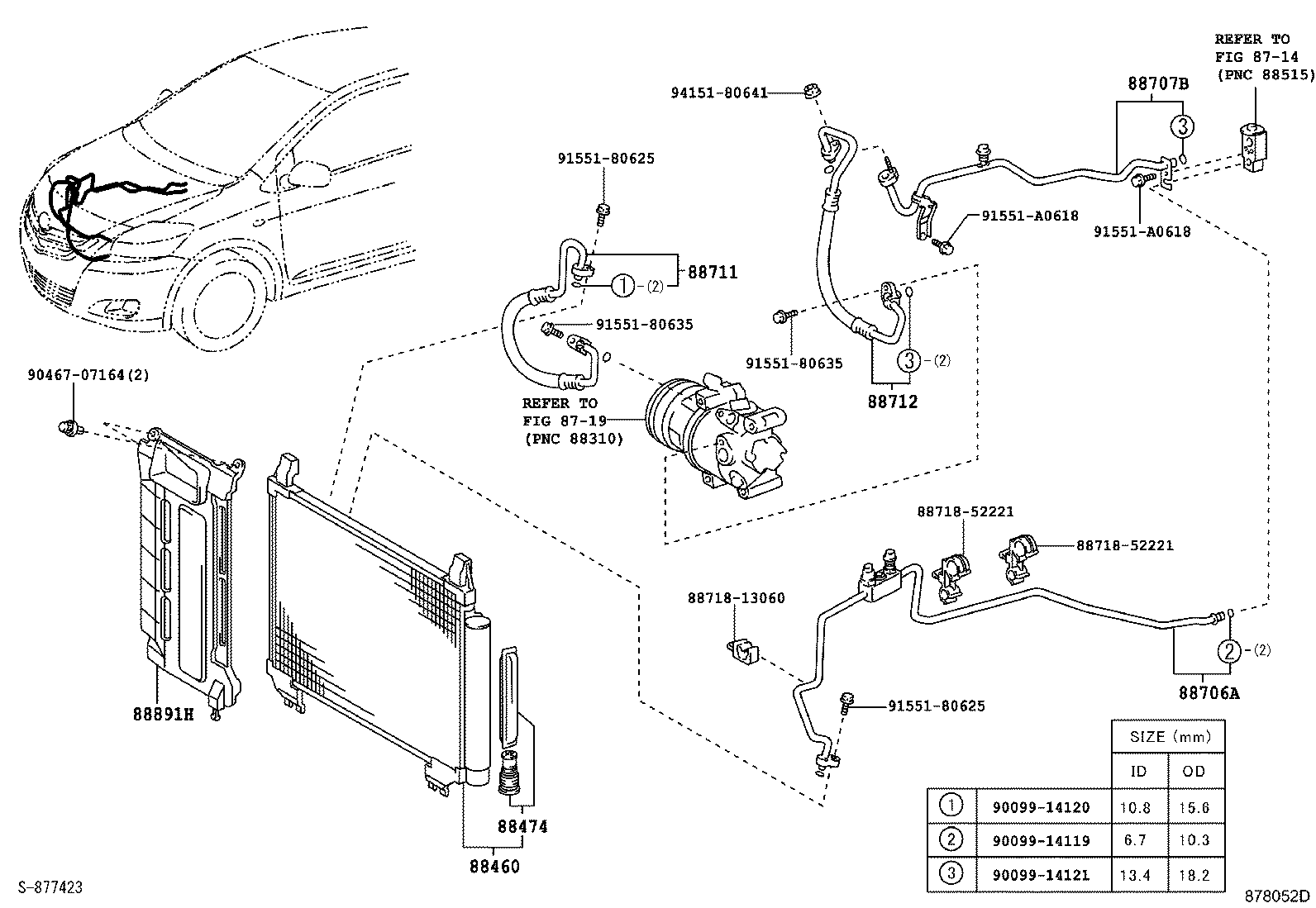

Heating & Air Conditioning - Cooler Piping
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88566N | Duct, Cooler Air, NO.1 |
| 88706A | Tube Sub-assy, Liquid, A |
| 88707B | Tube Sub-assy, Suction, B |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
