Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 3 illustrations

Illustrations

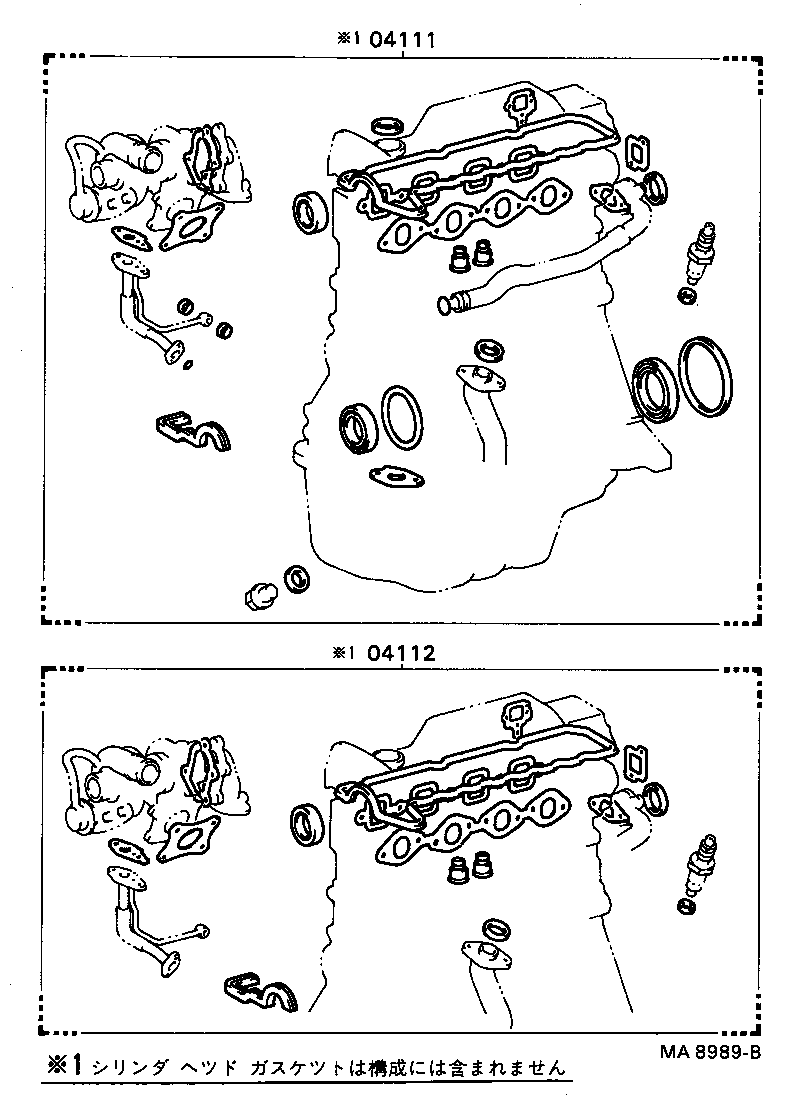

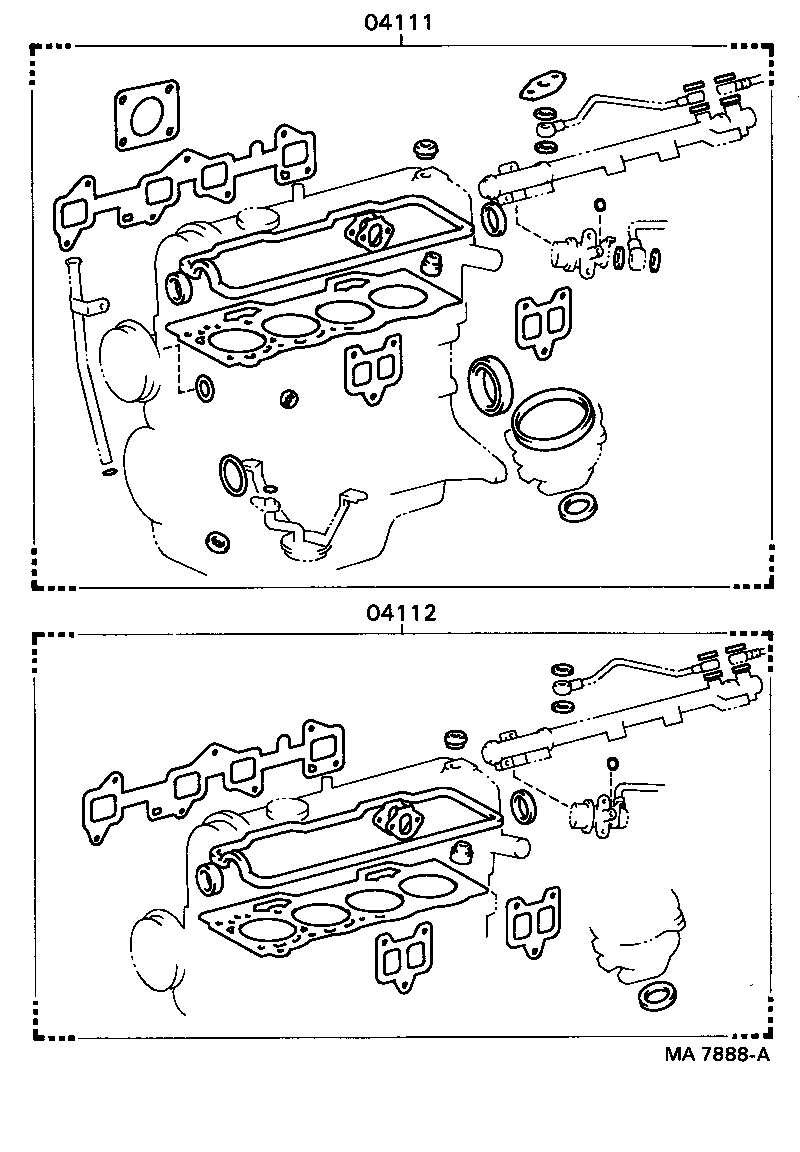

Figure MA7887A MA7887A 1986-05 → — Figure MA7888A MA7888A 1986-09 → — Figure MA8989B MA8989B 1986-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
