Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

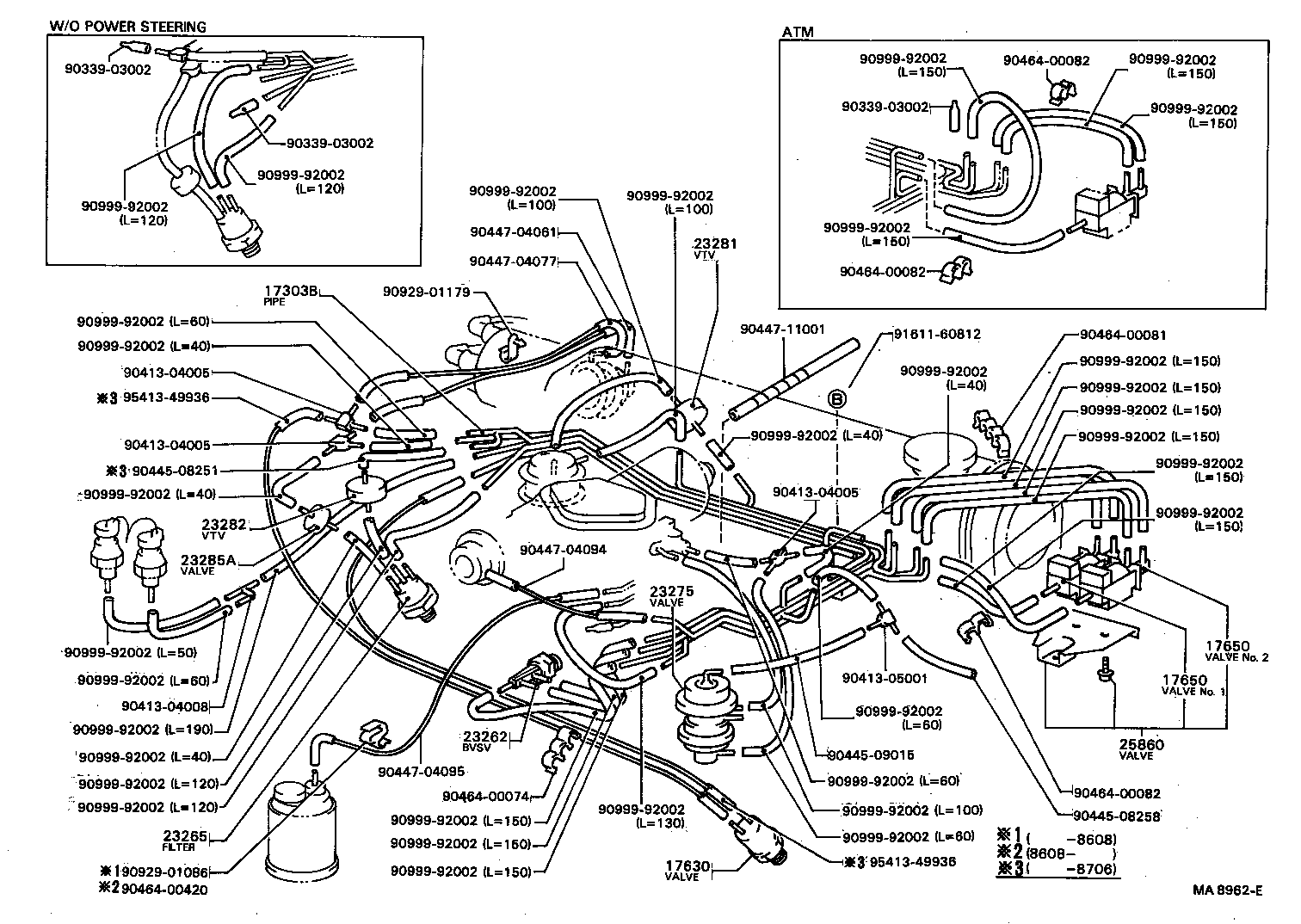

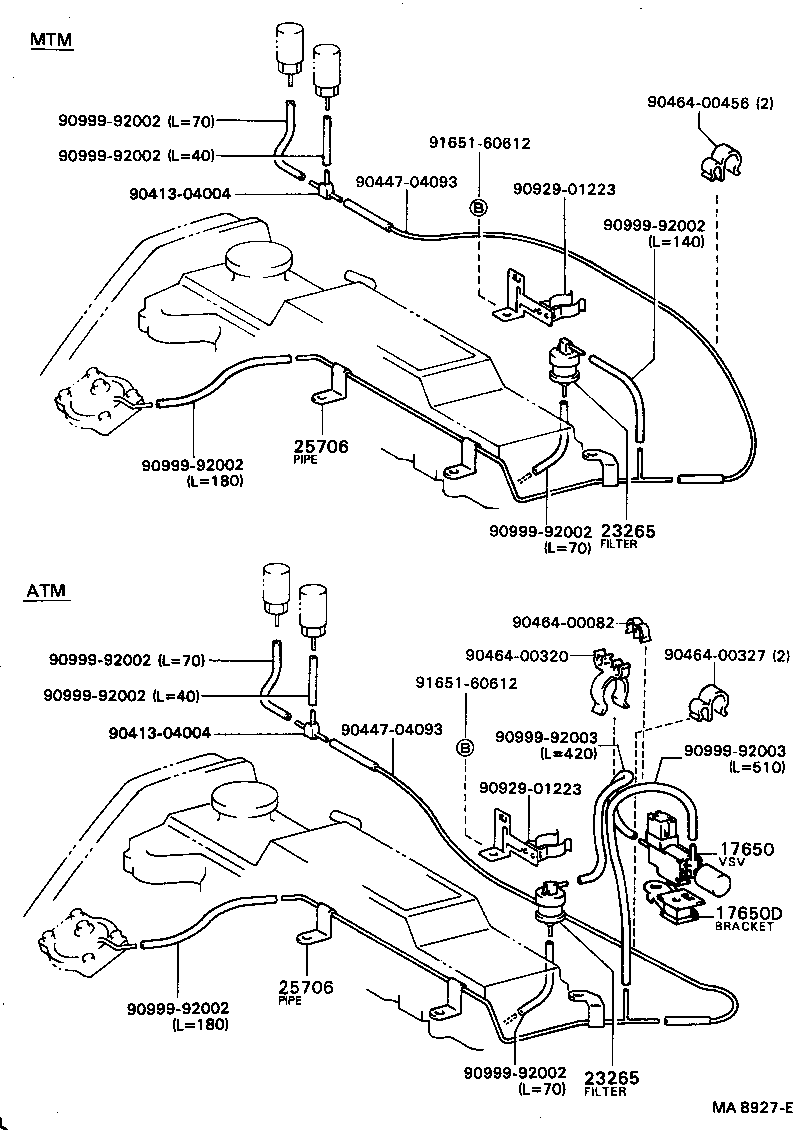

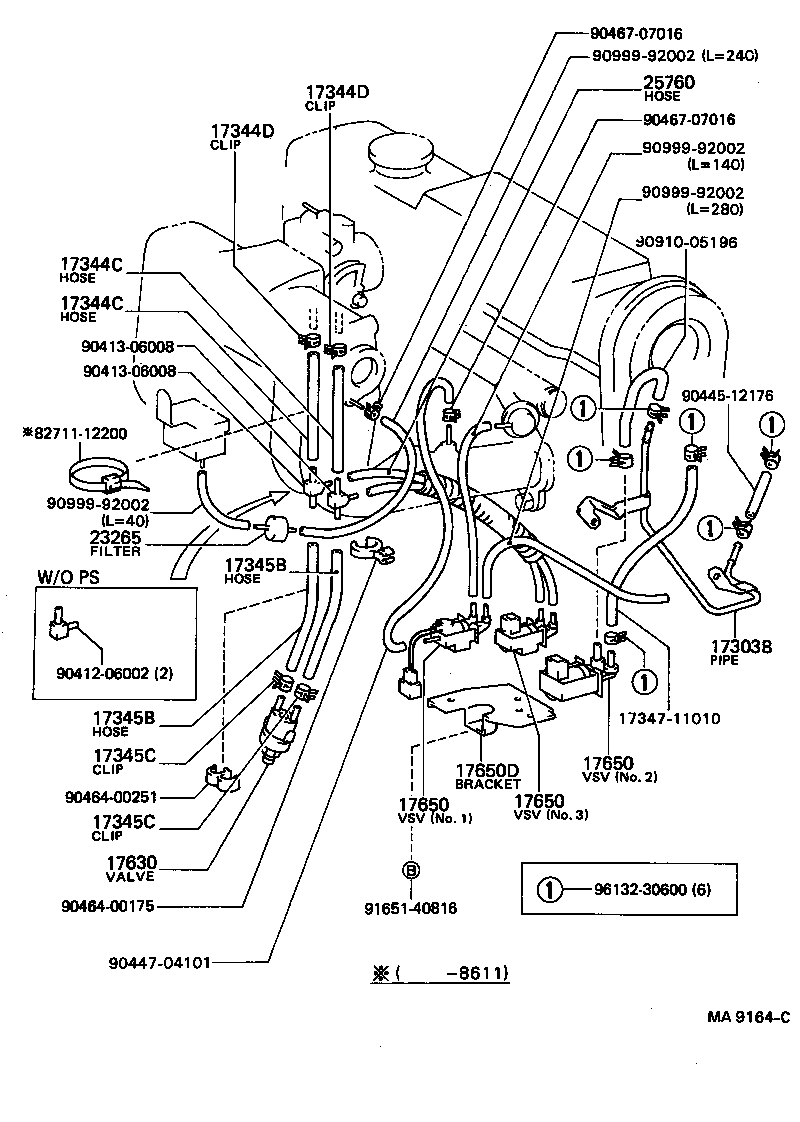

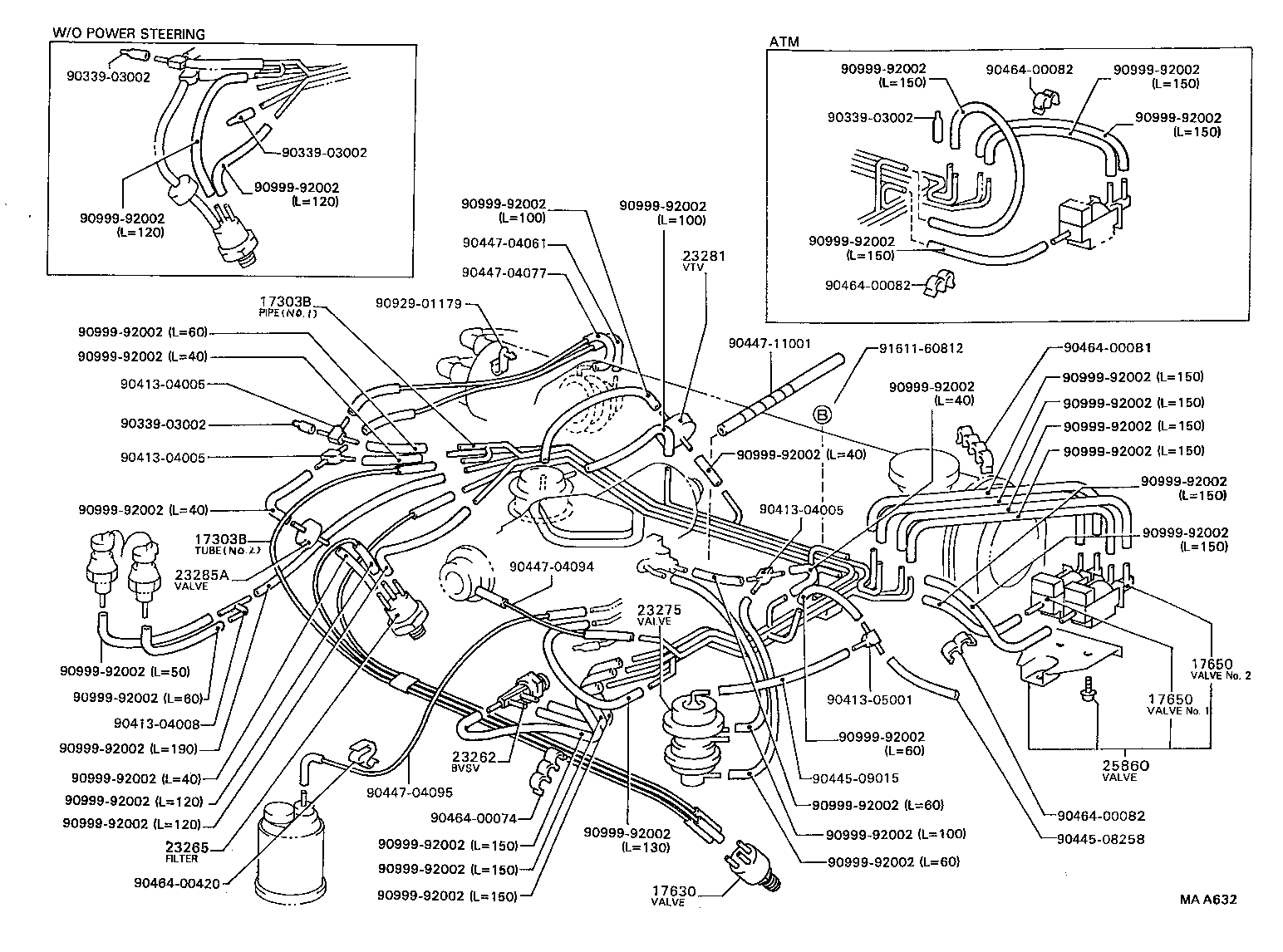

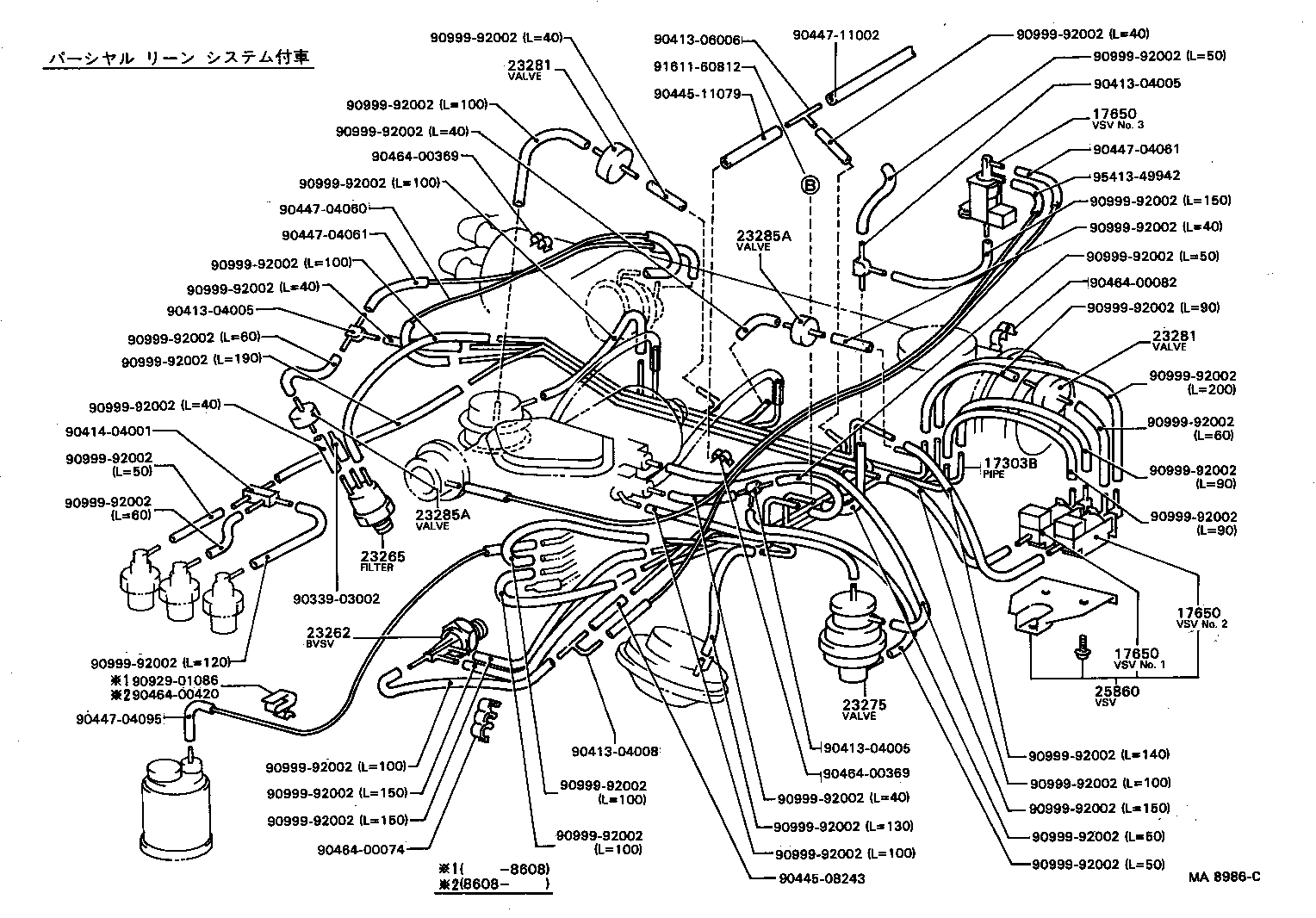

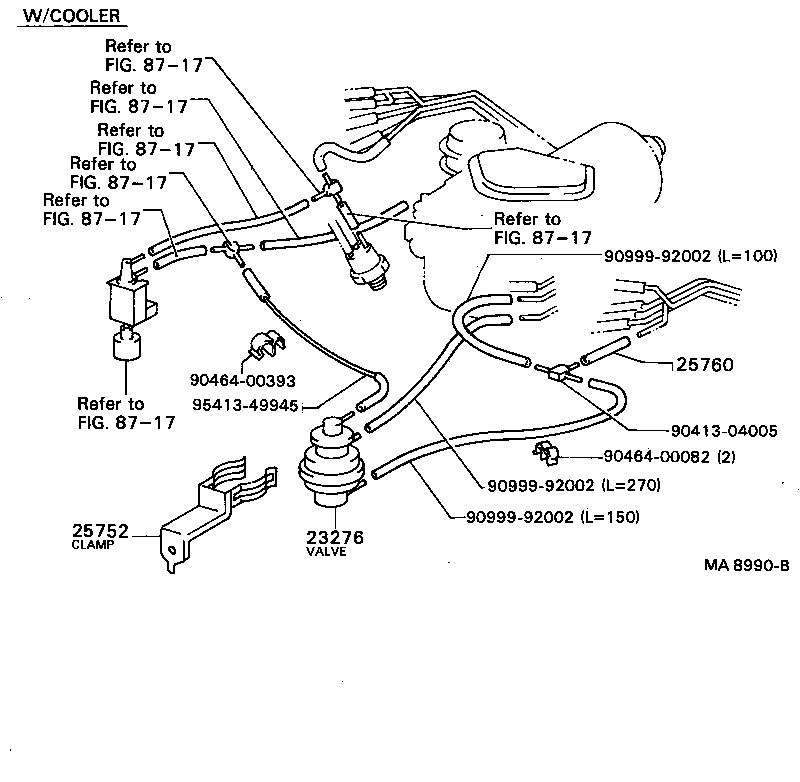

Figure MA9503A MA9503A 1986-05 → — Figure MA9164C MA9164C 1986-09 → — Figure MA8962E MA8962E 1986-05 → 1987-06 Figure MAA632 MAA632 1987-06 → — Figure MA8986C MA8986C 1986-05 → — Figure MA8990B MA8990B 1986-05 → — Figure MA9503A MA9503A 1986-05 → — Figure MA8927E MA8927E 1986-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
