Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

6 part groups · 2 illustrations

Illustrations

Figure MCD356A

MCD356A 1986-05 → —

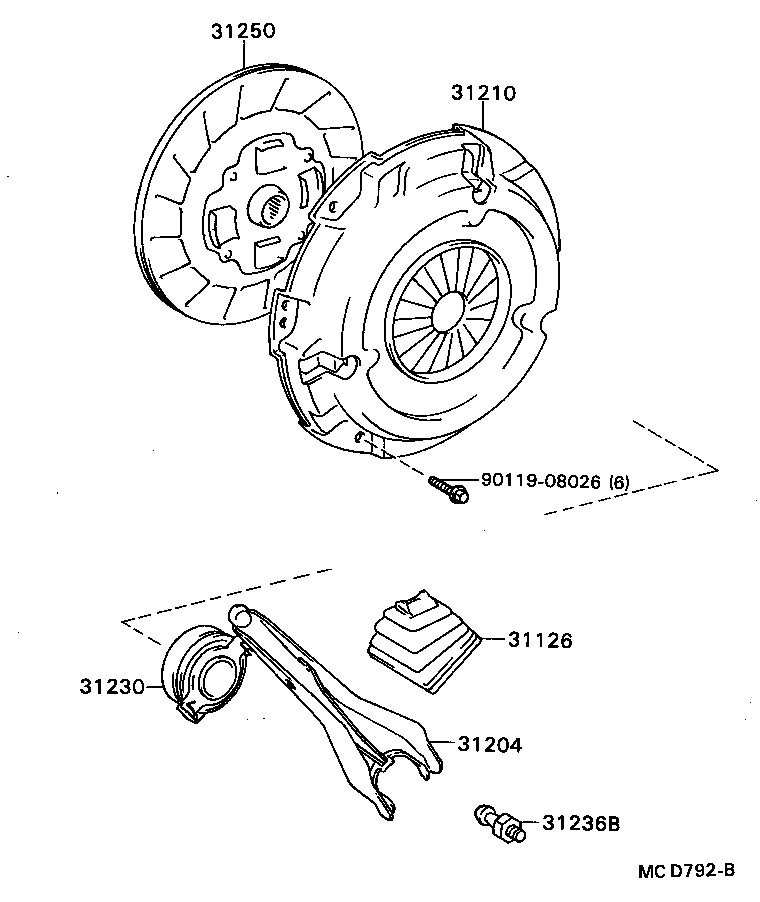

Figure MCD792B

MCD792B 1986-09 → —

Part groups

PNC	Description
31126	Boot, Clutch Release Fork
31204	Fork Sub-assy, Clutch Release
31210	Cover Assy, Clutch
31230	Bearing Assy, Clutch Release
31236B	Support, Release Fork
31250	Disc Assy, Clutch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
