Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

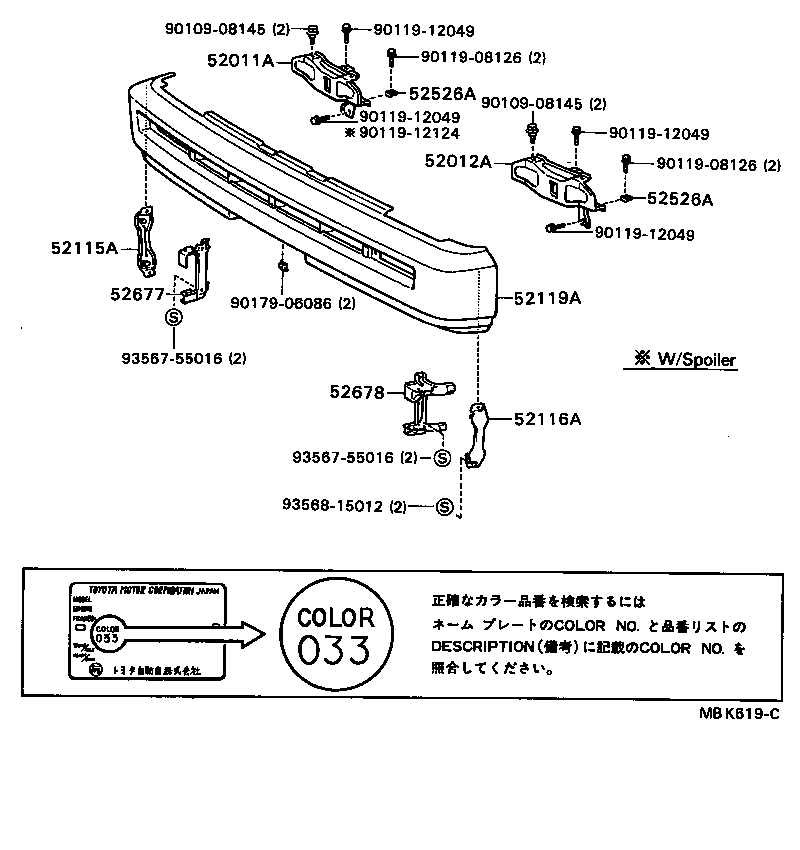

Figure MBK618B MBK618B 1986-05 → — Figure MBK619C MBK619C 1986-05 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52526A Retainer, Front Bumper, Lower NO.1
52677 Support, Front Bumper Side, NO.2, RH
52678 Support, Front Bumper Side, NO.2, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
