Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

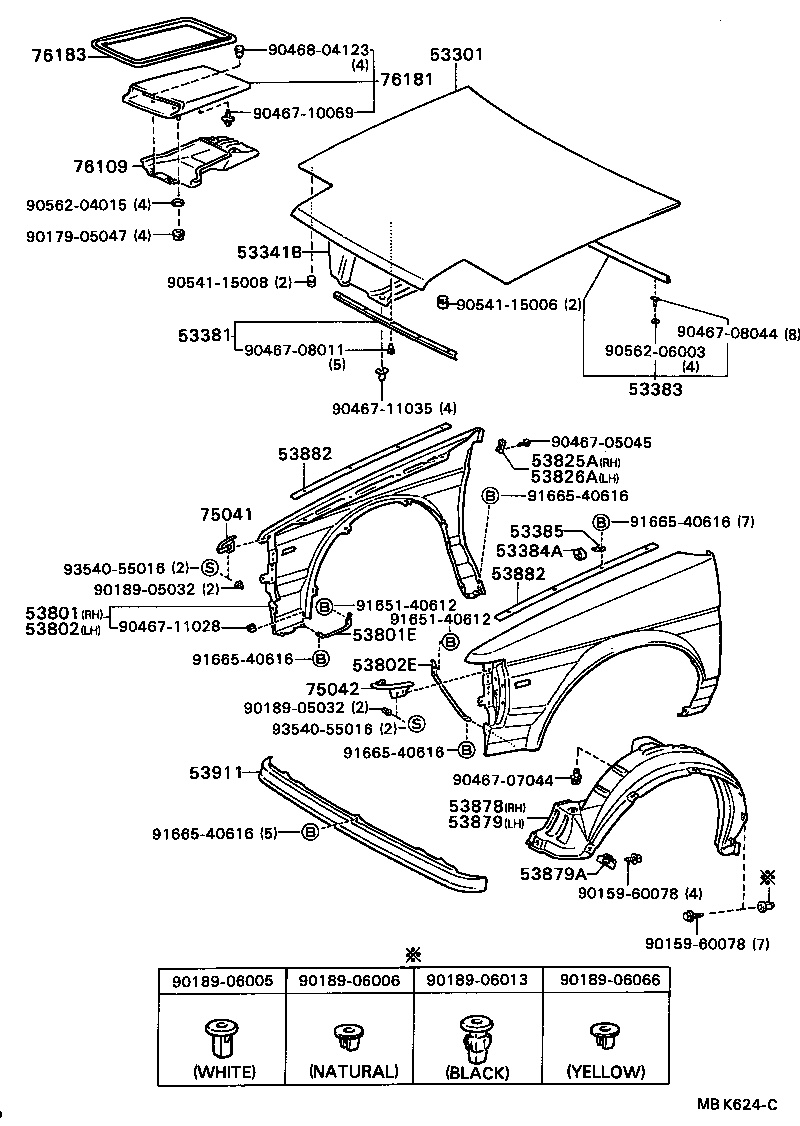

Figure MBK623D MBK623D 1986-05 → — Figure MBK624C MBK624C 1986-05 → —

Part groups

PNCDescription
53155C Seal, Radiator Grille, NO.1
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53383 Seal, Hood TO Cowl Top
53384A Bumper, Fender TO Hood
53385 Retainer, Hood, Bumper
53801 Fender Sub-assy, Front RH
53801E Brace, Front Fender TO Apron, RH
53802 Fender Sub-assy, Front LH
53802E Brace, Front Fender TO Apron, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882 Packing, Front Fender Main
53911 Panel, Front Valance
75041 Garnish Sub-assy, Front Fender, RH
75042 Garnish Sub-assy, Front Fender, LH
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
