Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

16 part groups · 3 illustrations

Illustrations

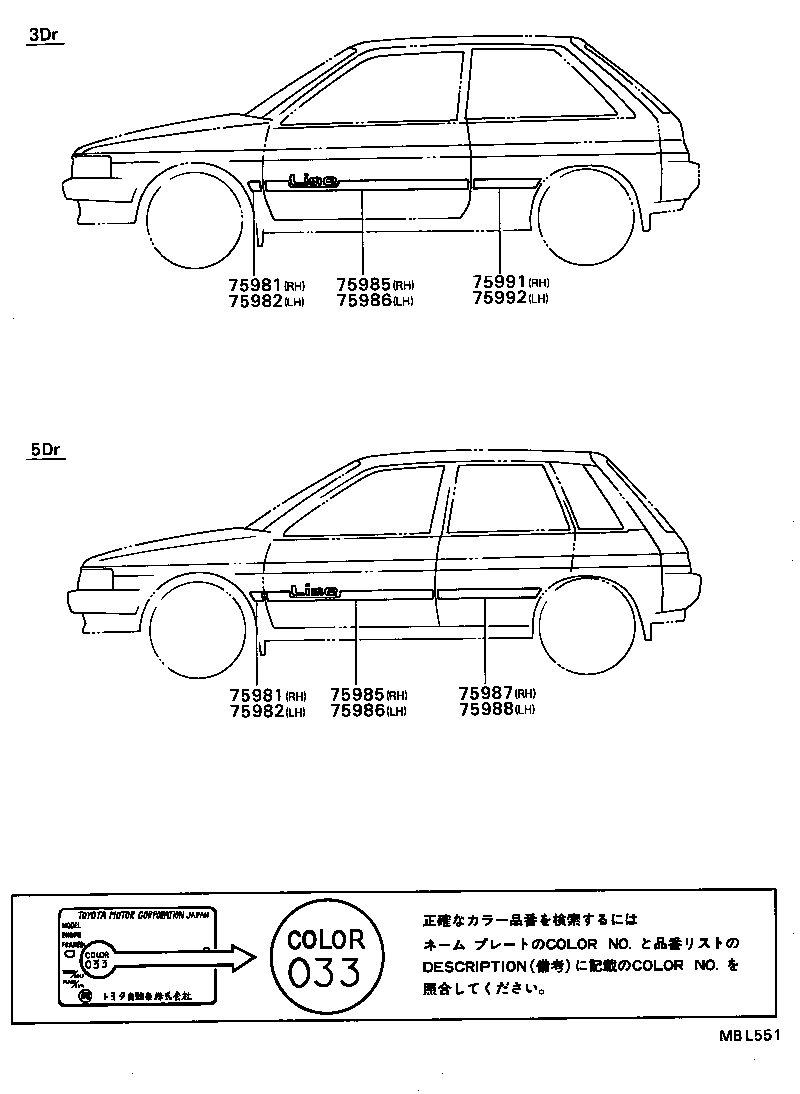

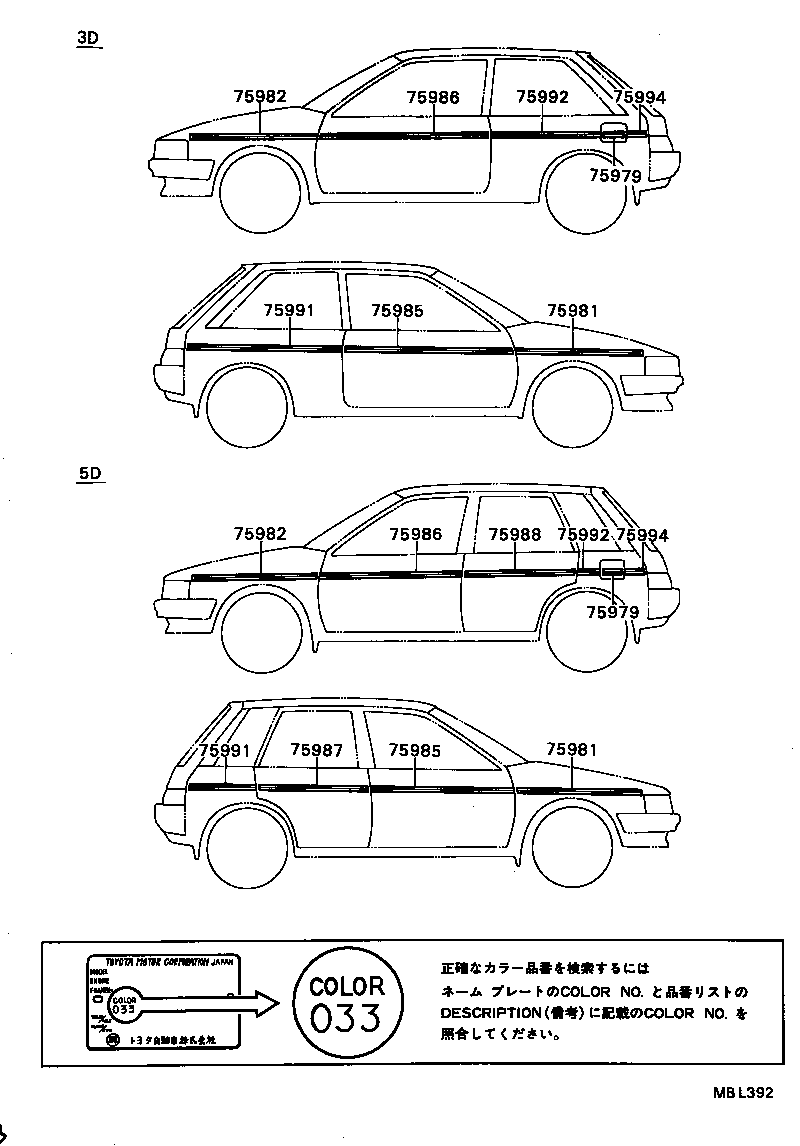

Figure MBK855 MBK855 1986-09 → — Figure MBL392 MBL392 1986-11 → — Figure MBL551 MBL551 1986-12 → —

Part groups

PNCDescription
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75979 Stripe, Fuel Filler Opening Lid
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75994 Stripe, Quarter, LH NO.2
76983 Stripe, Front Door Mark, RH
76984 Stripe, Front Door Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
