Factory parts data · Europe

Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

Figure MEH206B

MEH206B 1986-05 → —

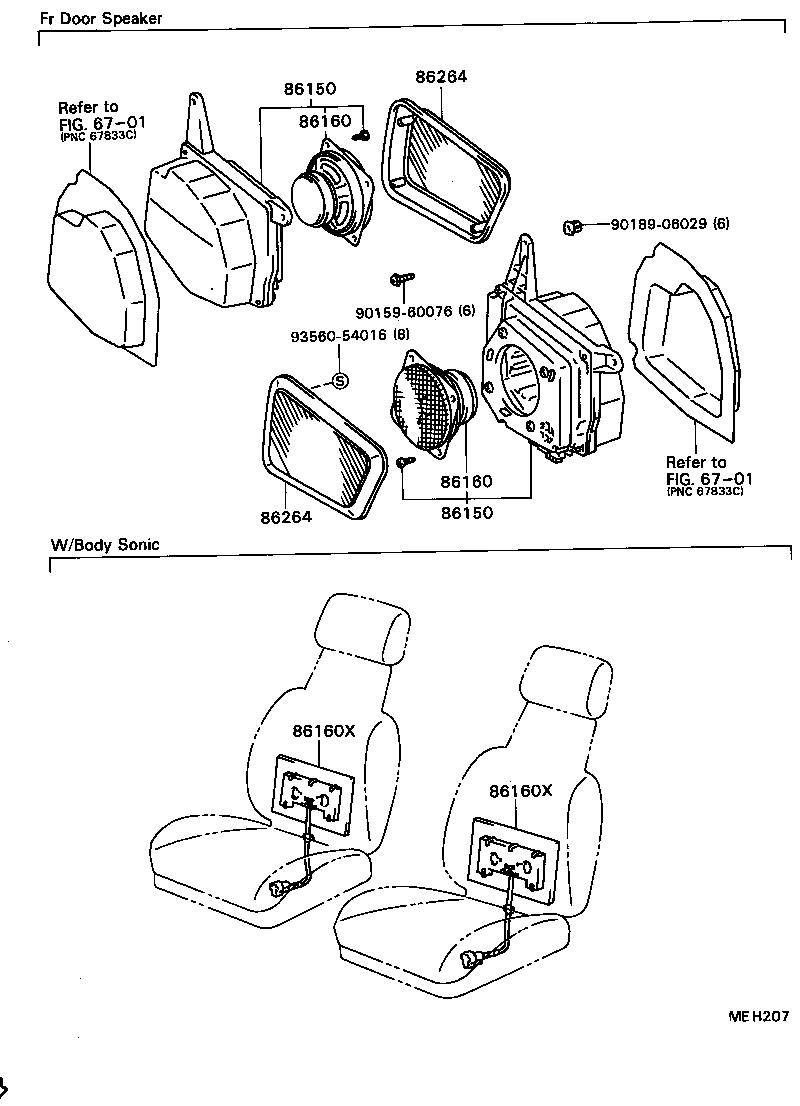

Figure MEH207

MEH207 1986-05 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160X	Transducer, Bodysonic
86264	Grille, Speaker, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
