Toyota Corolla 2

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 143110 · Japan

Discontinued model Data version 1988-10

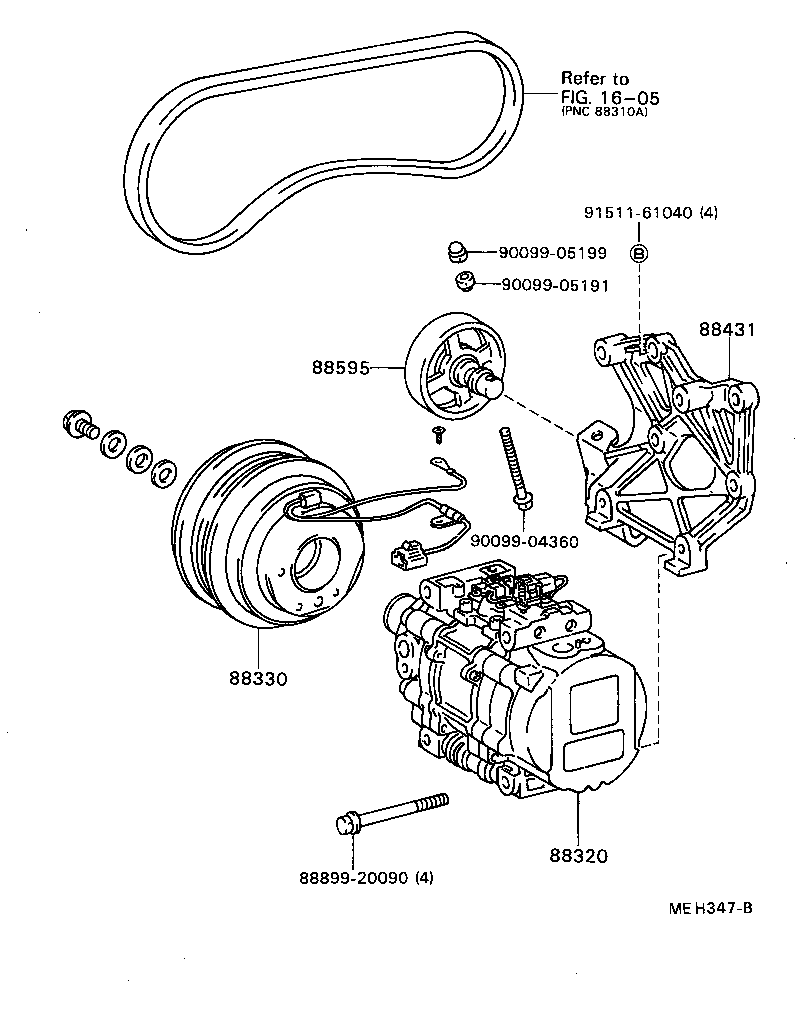

Heating & Air Conditioning - Compressor

5 part groups · 2 illustrations

PNC	Description
88320	Compressor Assy, Cooler
88330	Clutch Assy, Magnet
88431	Bracket, Compressor Mounting, NO.1
88444	Bracket, Idle Pulley
88595	Pulley, Cooler Compressor Idle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
