Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

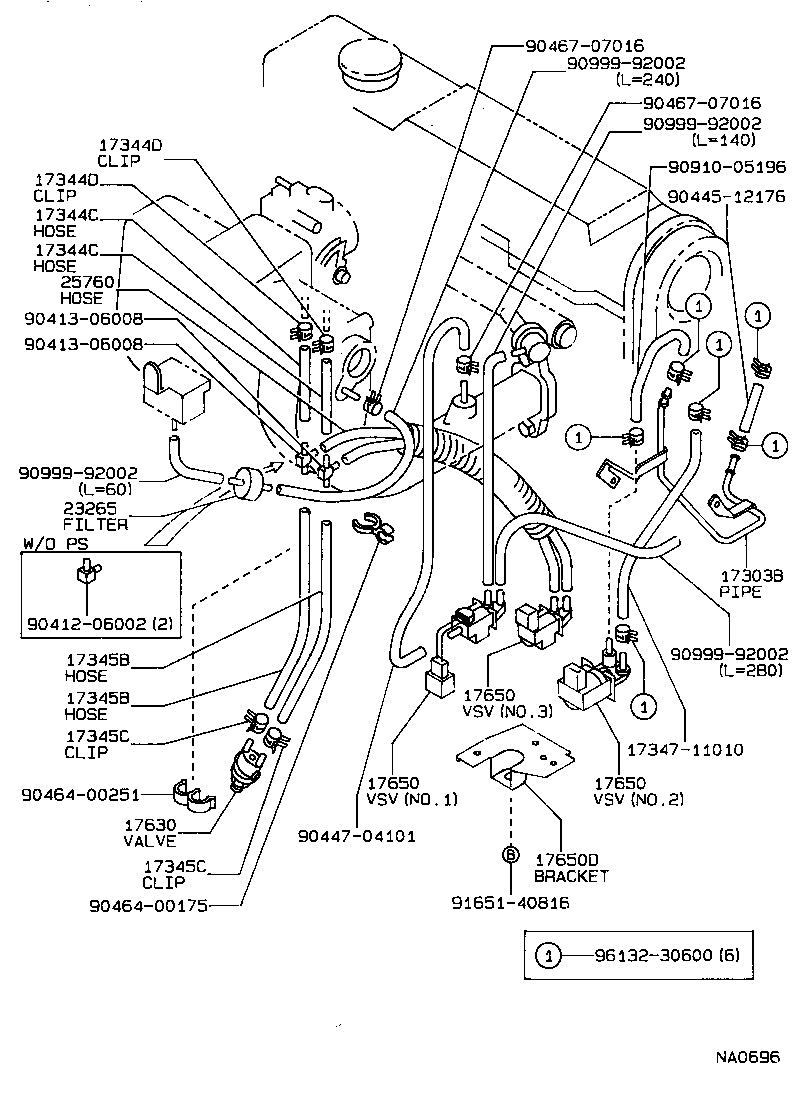

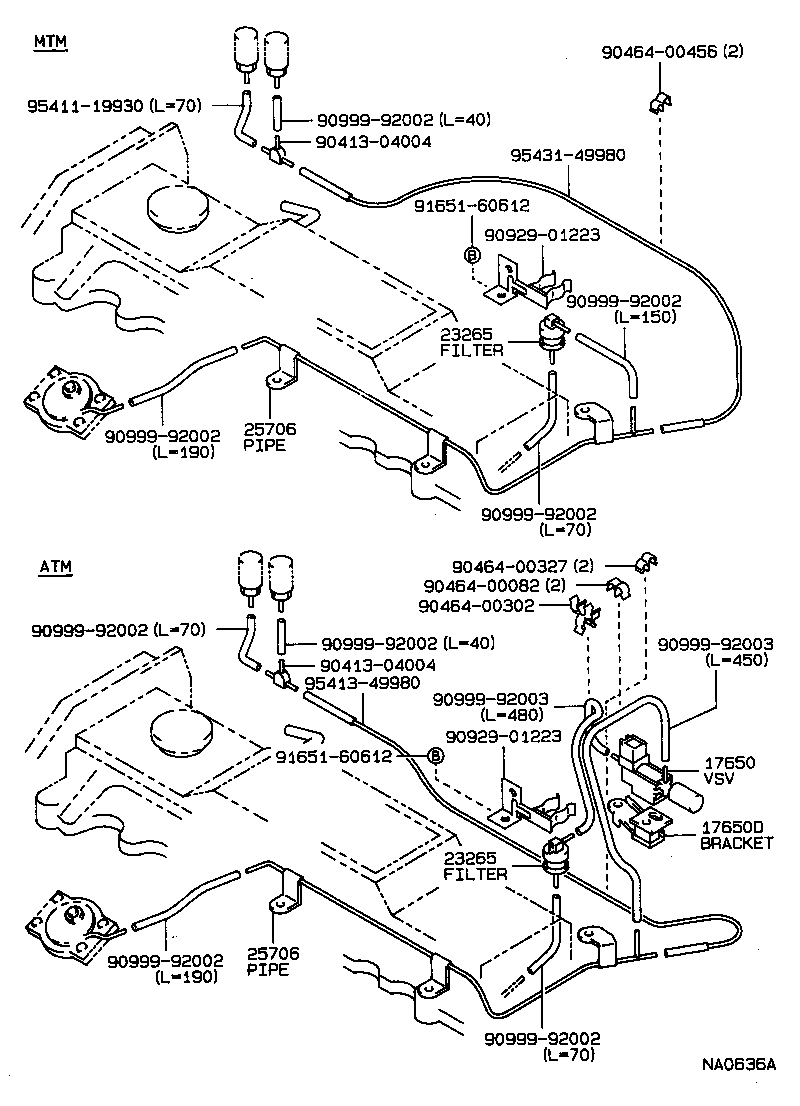

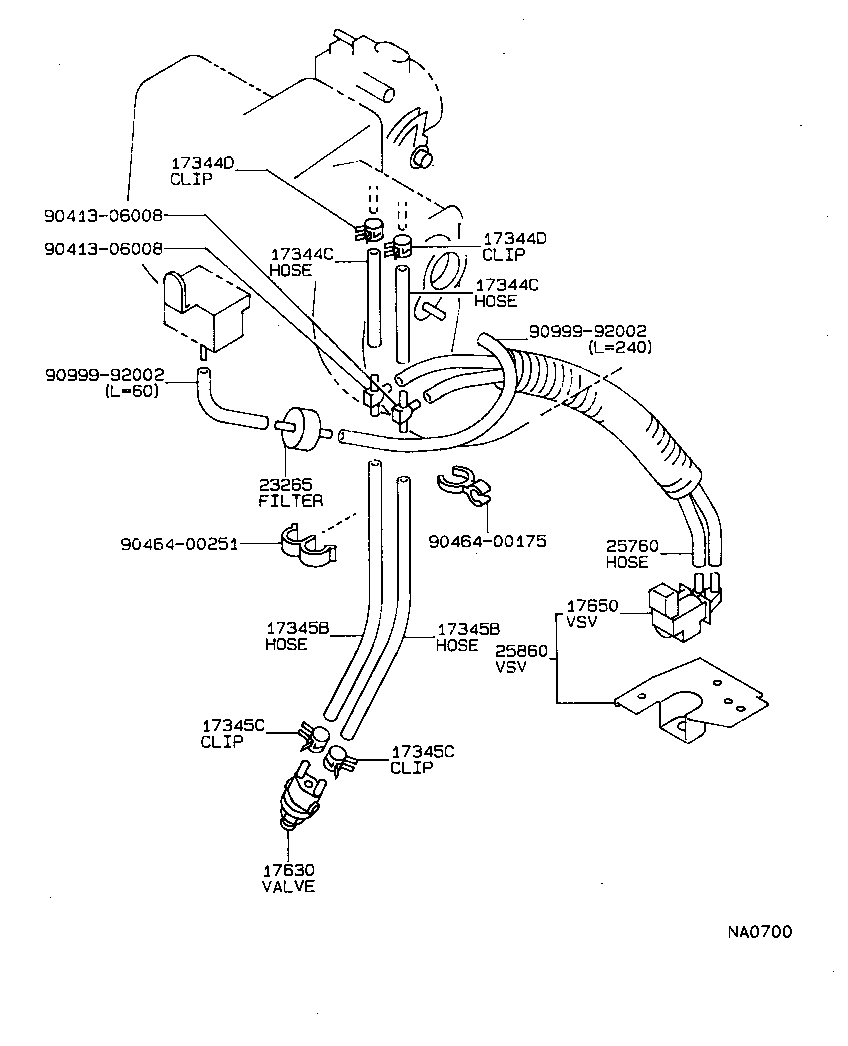

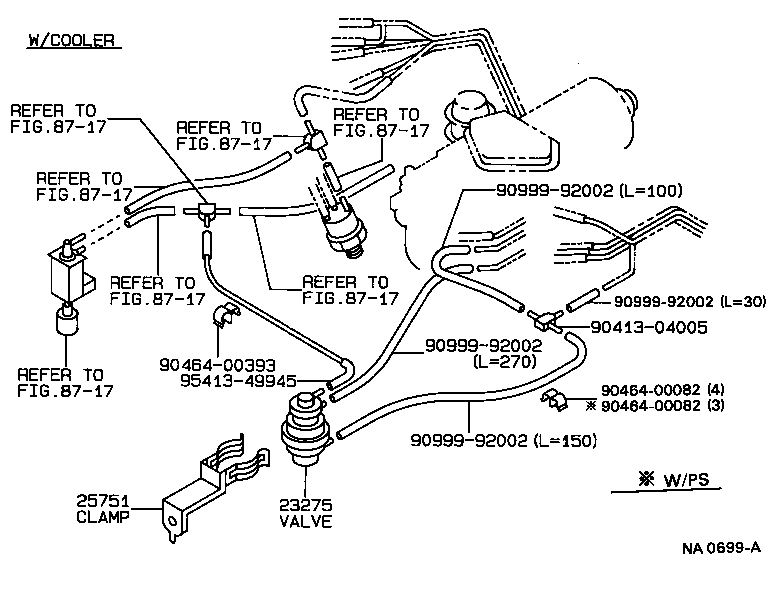

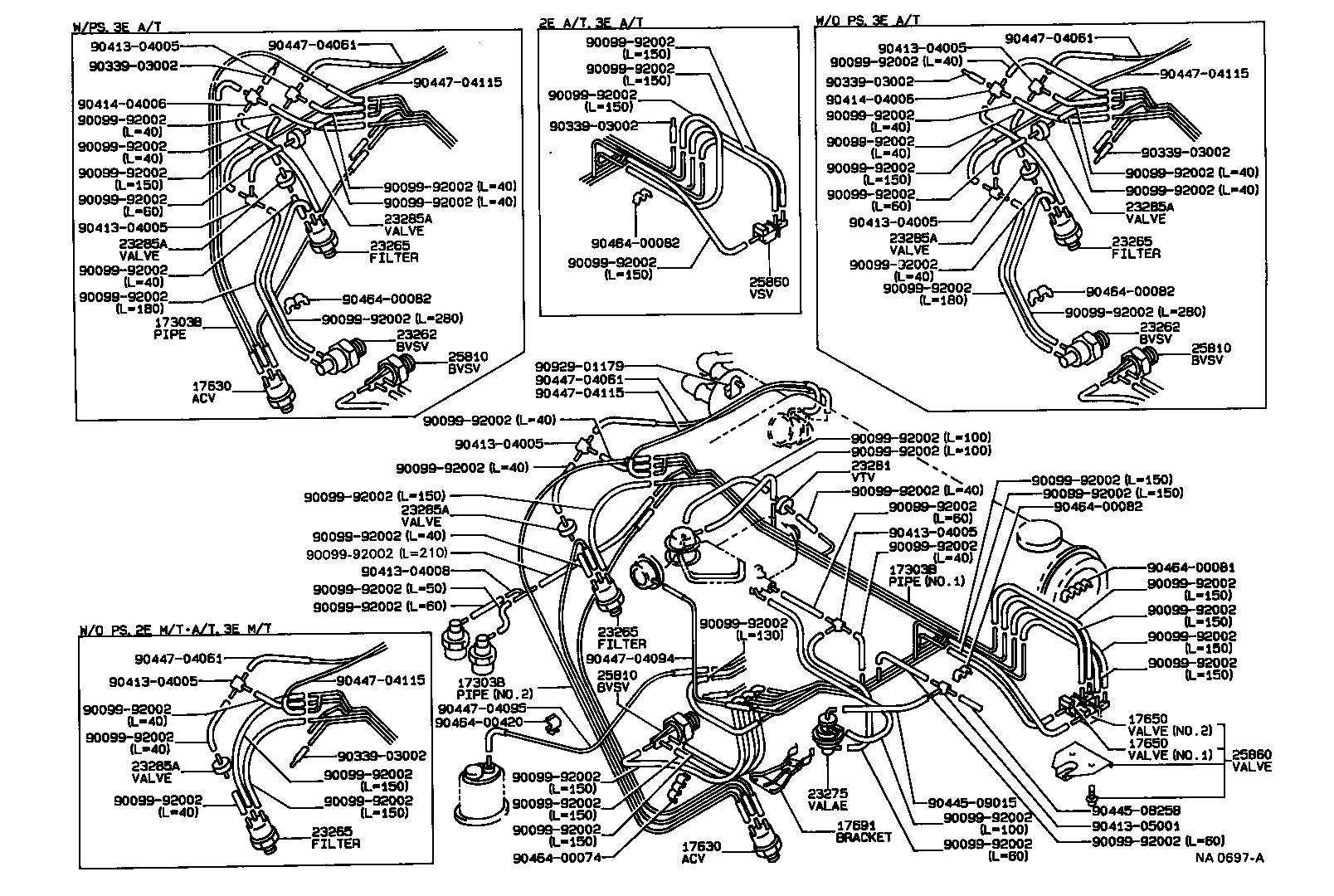

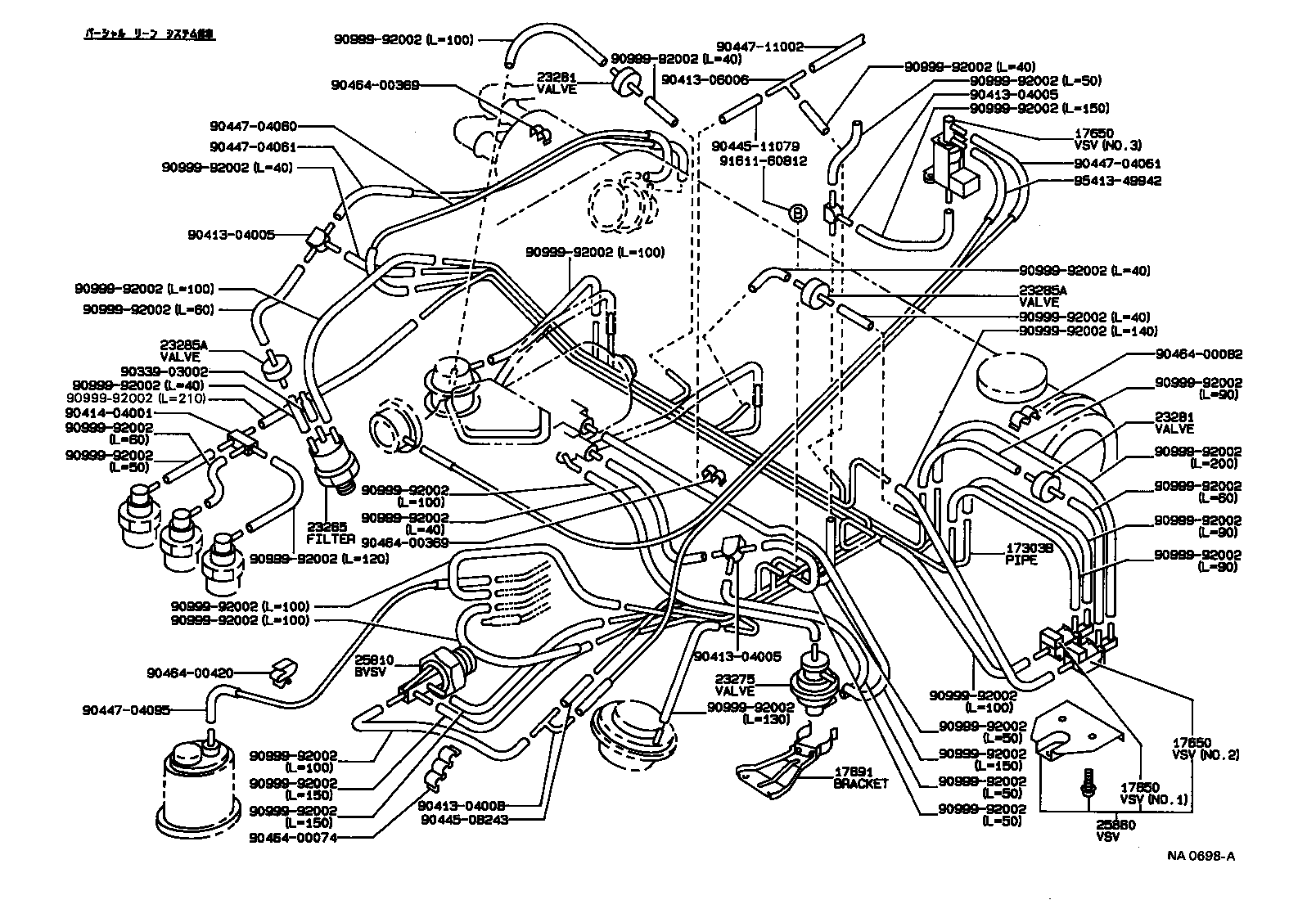

Figure MA9503A MA9503A 1988-05 → — Figure NA0697A NA0697A 1988-05 → — Figure NA0698A NA0698A 1988-05 → — Figure NA0699A NA0699A 1988-05 → — Figure NA0700 NA0700 1988-05 → — Figure NA0696 NA0696 1988-05 → — Figure MA9503A MA9503A 1988-05 → — Figure NA0636A NA0636A 1988-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17691 Bracket, Vacuum Control Valve, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25751 Clamp, Vacuum Control Valve, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
