Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 3 illustrations

Illustrations

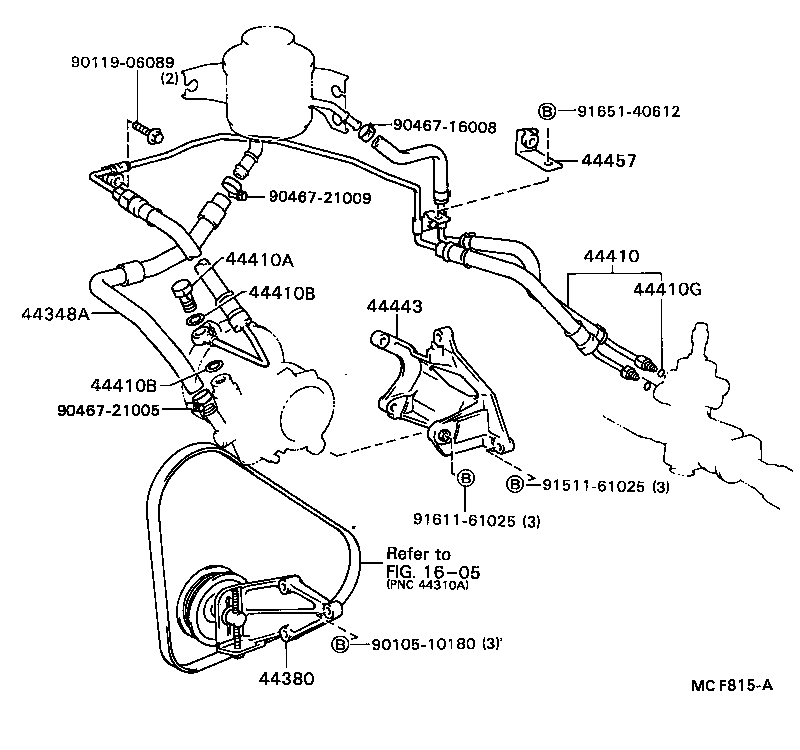

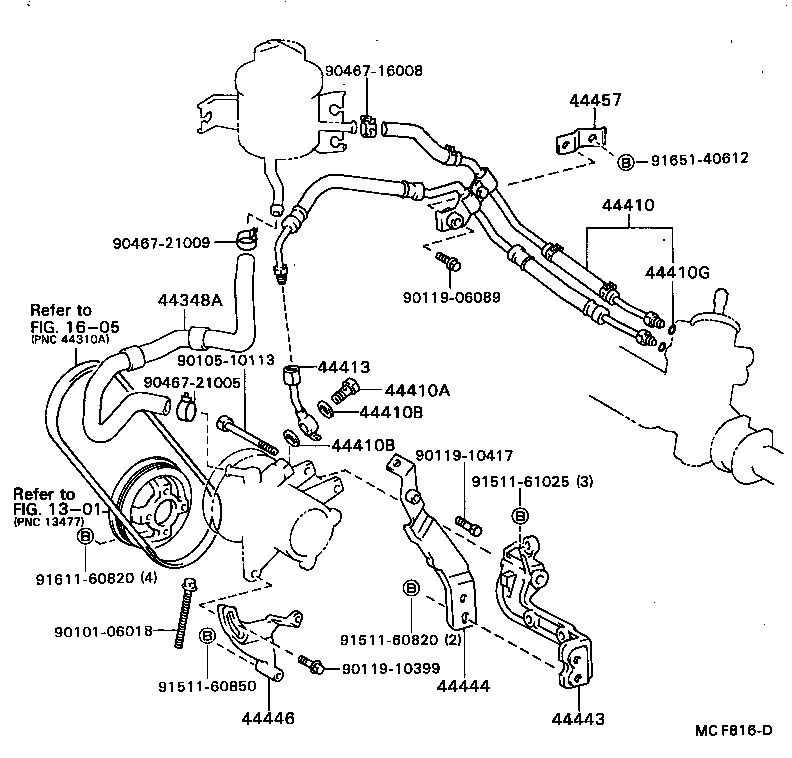

Figure MCF814D MCF814D 1988-05 → — Figure MCF815A MCF815A 1988-05 → — Figure MCF816D MCF816D 1988-05 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44380 Pulley Assy, Power Steering Idle W/Bracket
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44413 Tube, Pressure Feed, NO.1
44440 Bracket Assy, Pump
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
