Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

14 part groups · 2 illustrations

Illustrations

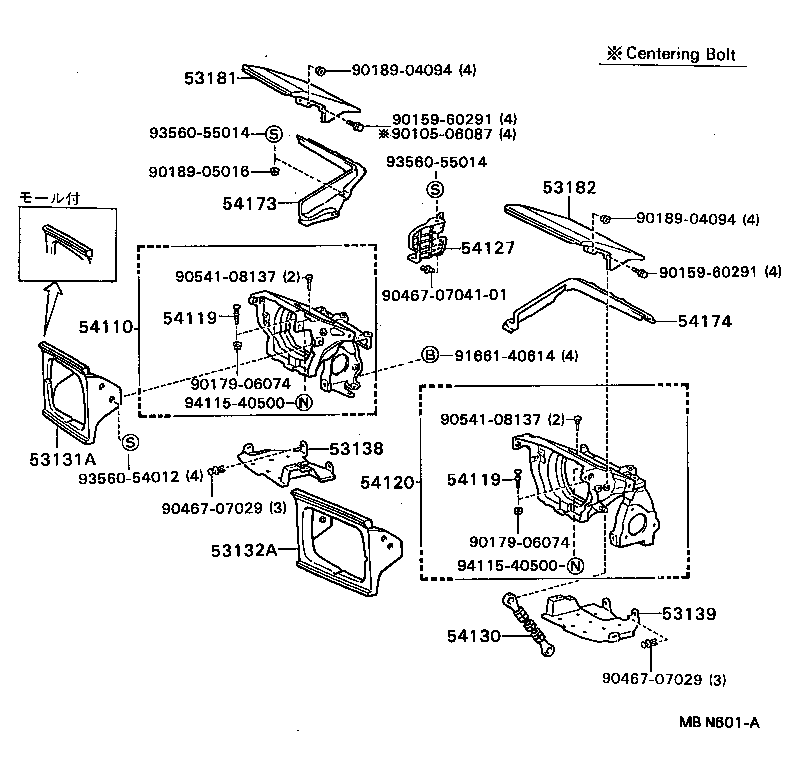

Figure MBN600 MBN600 1988-05 → — Figure MBN601A MBN601A 1988-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
54110 Bracket Assy, Retractable Headlamp, RH
54119 Stop, Retractable Headlamp Link
54120 Bracket Assy, Retractable Headlamp, LH
54127 Protector, Retractable Headlamp, NO.2 RH
54130 Rod Assy, Retractable Headlamp
54173 Shield, Retractable Headlamp, RH
54174 Shield, Retractable Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
