Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 2 illustrations

Illustrations

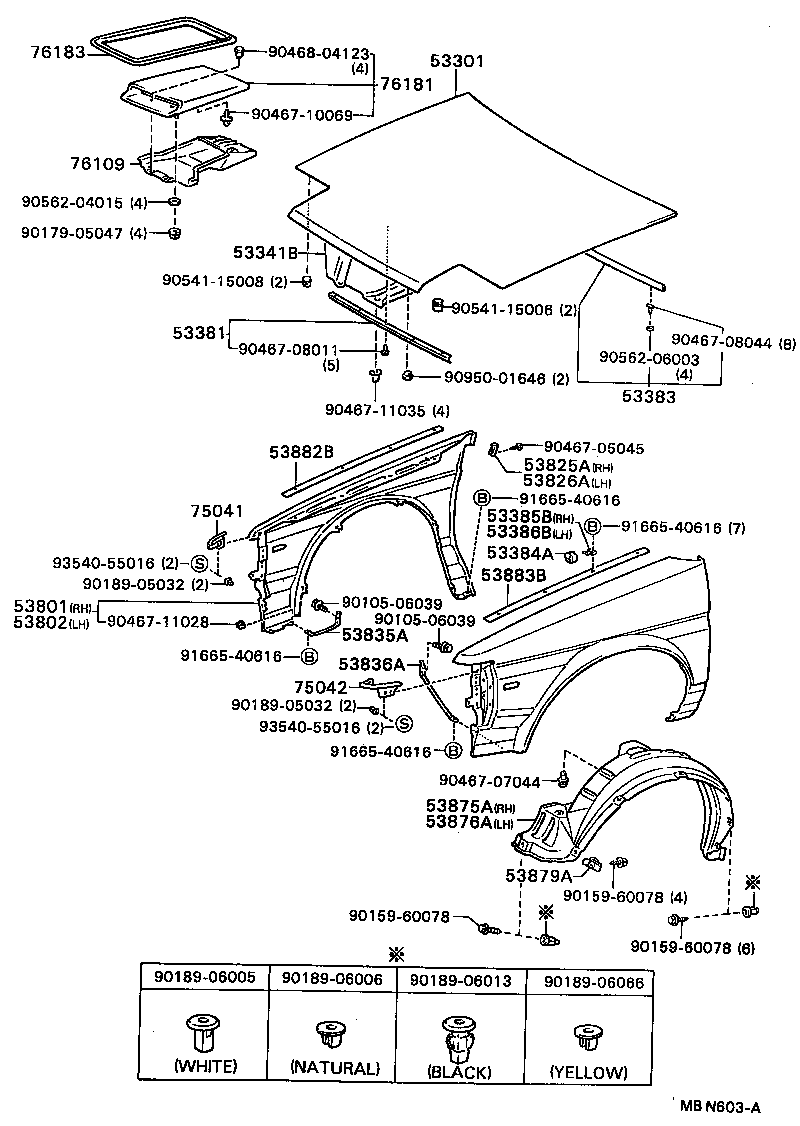

Figure MBN602B MBN602B 1988-05 → — Figure MBN603A MBN603A 1988-05 → —

Part groups

PNCDescription
53155C Seal, Radiator Grille, NO.1
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53383 Seal, Hood TO Cowl Top
53384A Bumper, Fender TO Hood
53385B Bracket, Fender TO Hood Bumper, RH
53386B Bracket, Fender TO Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53883B Seal, Front Fender, LH
53911 Panel, Front Valance
75041 Garnish Sub-assy, Front Fender, RH
75042 Garnish Sub-assy, Front Fender, LH
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
