Toyota Corolla 2
1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan
Discontinued model
Data version 1991-03

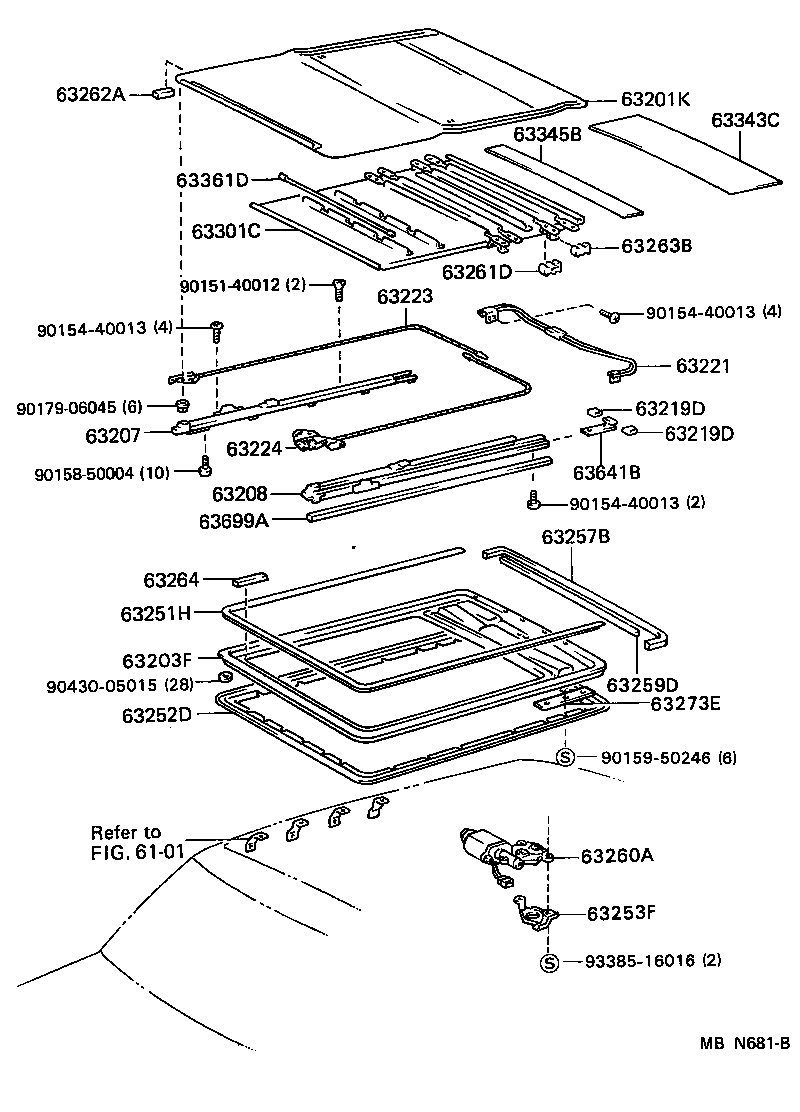

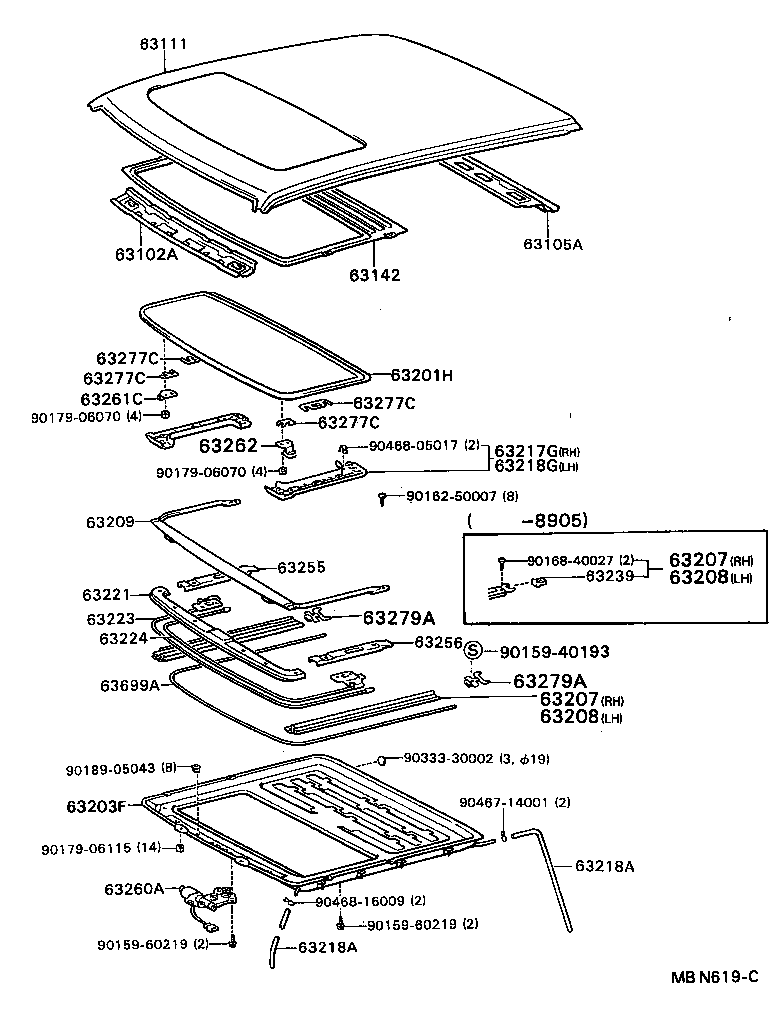

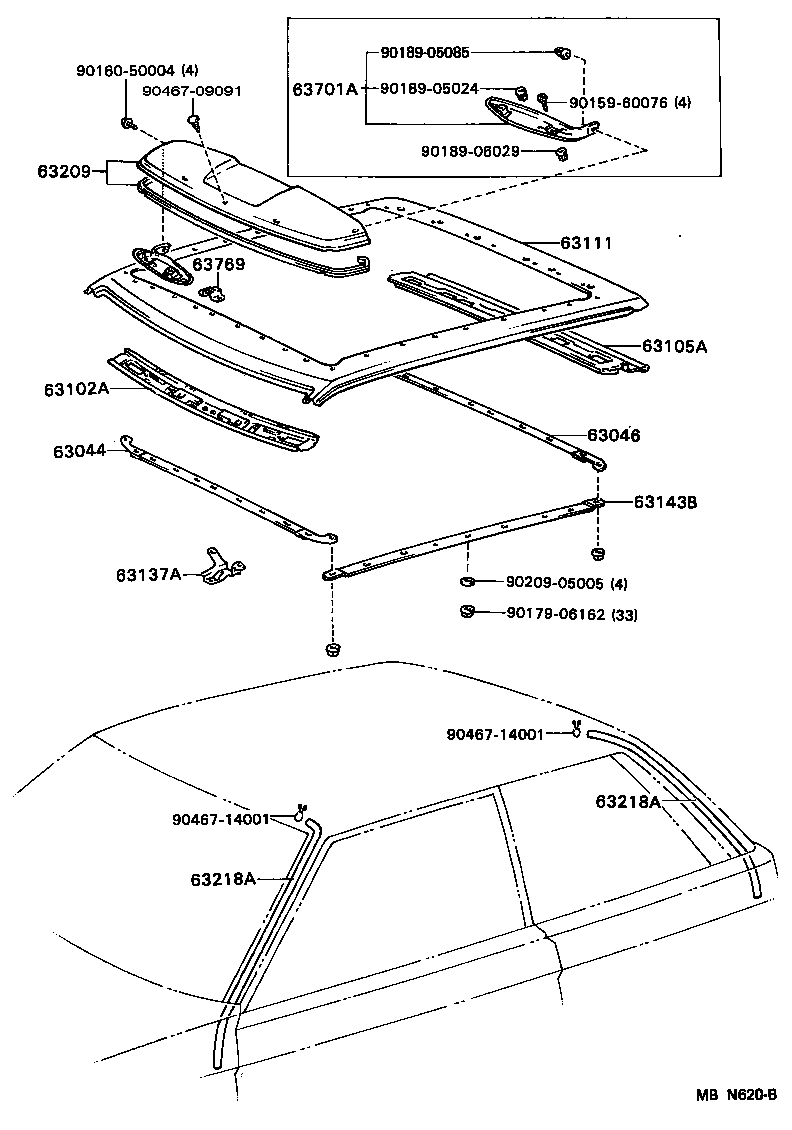

Roof Panel & Back Window Glass
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63044 | Reinforcement Sub-assy, Roof Panel, NO.2 A |
| 63046 | Reinforcement Sub-assy, Roof Panel, NO.4 A |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63126A | Damper, Windshield Header Panel |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63201H | Panel Sub-assy, Slide Roof |
| 63201K | Canvas Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219D | Cushion, Sliding Roof Guide Rail |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63239 | Stopper, Sliding Roof Panel |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63253F | Bracket, Slide Roof Motor Cover |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63257B | Seal, Sliding Roof |
| 63259D | Seal, Sliding Roof, NO.2 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63261D | Shoe, Sliding Roof |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63262A | Seal, Sliding Roof, Front NO.1 |
| 63263B | Shoe, Sliding Roof |
| 63264 | Seal, Sliding Roof, Front NO.3 |
| 63273E | Gasket, NO.2 |
| 63277C | Shim, Sliding Roof Panel |
| 63279A | Bracket, Housing TO Rail, NO.3 |
| 63301C | Strength Sub-assy, Roof |
| 63343C | Pad, Roof Silencer, Rear |
| 63345B | Pad, Roof Silencer, Center |
| 63361D | Support, Sliding Roof Headlining |
| 63641B | Stopper, Sliding Roof Guide Rail |
| 63699A | Seal, Sliding Roof Guide Rail |
| 63701A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63769 | Bracket, Roof Air Deflector Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
