Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 2 illustrations

Illustrations

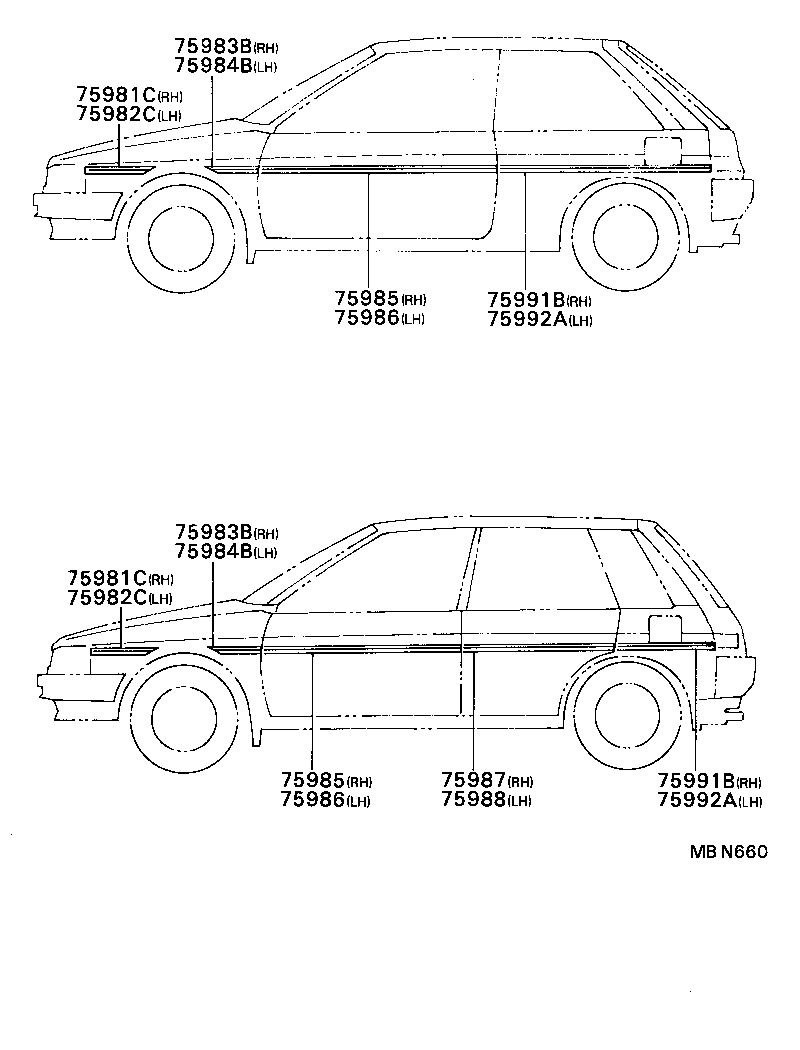

Figure MBN659A MBN659A 1988-05 → — Figure MBN660 MBN660 1988-05 → —

Part groups

PNCDescription
75427A Plate, Front Door Name, RH
75428A Plate, Front Door Name, LH
75981C Stripe, Front Fender, Front RH
75982C Stripe, Front Fender, Front LH
75983B Stripe, Front Fender, Rear RH
75984B Stripe, Front Fender, Rear LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991B Stripe, Quarter, RH
75992A Stripe, Quarter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
