Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 6 illustrations

Illustrations

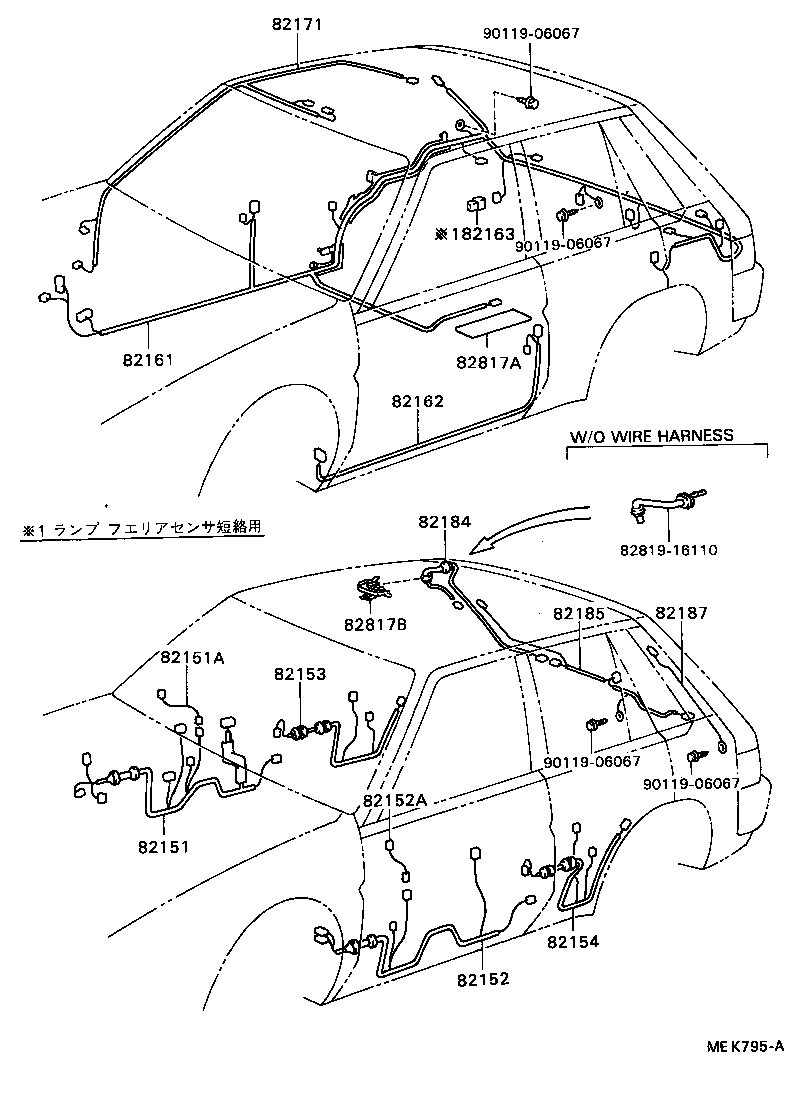

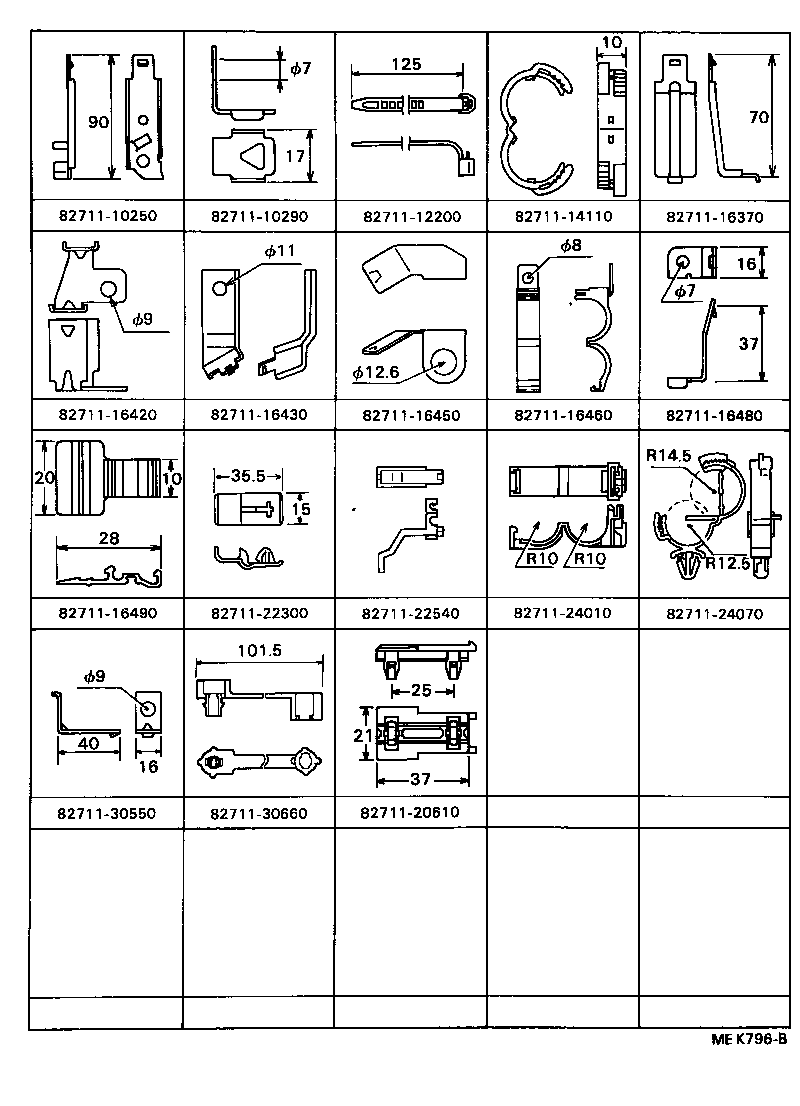

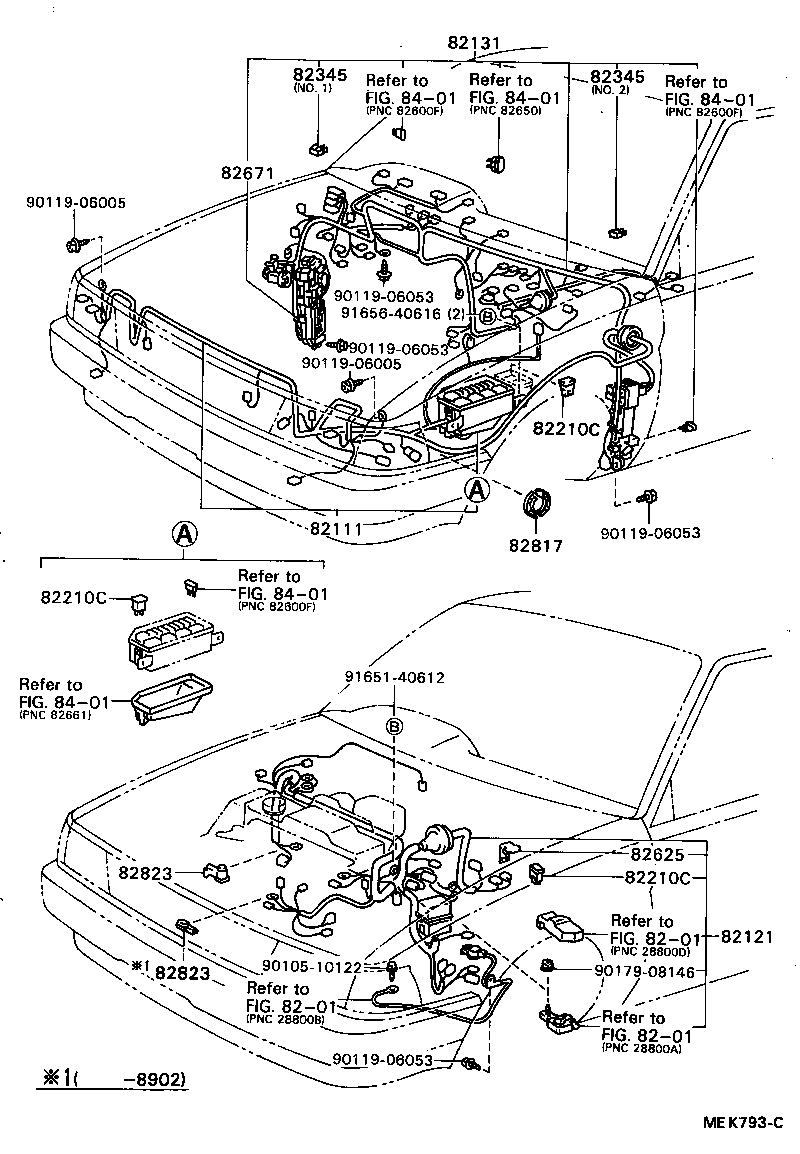

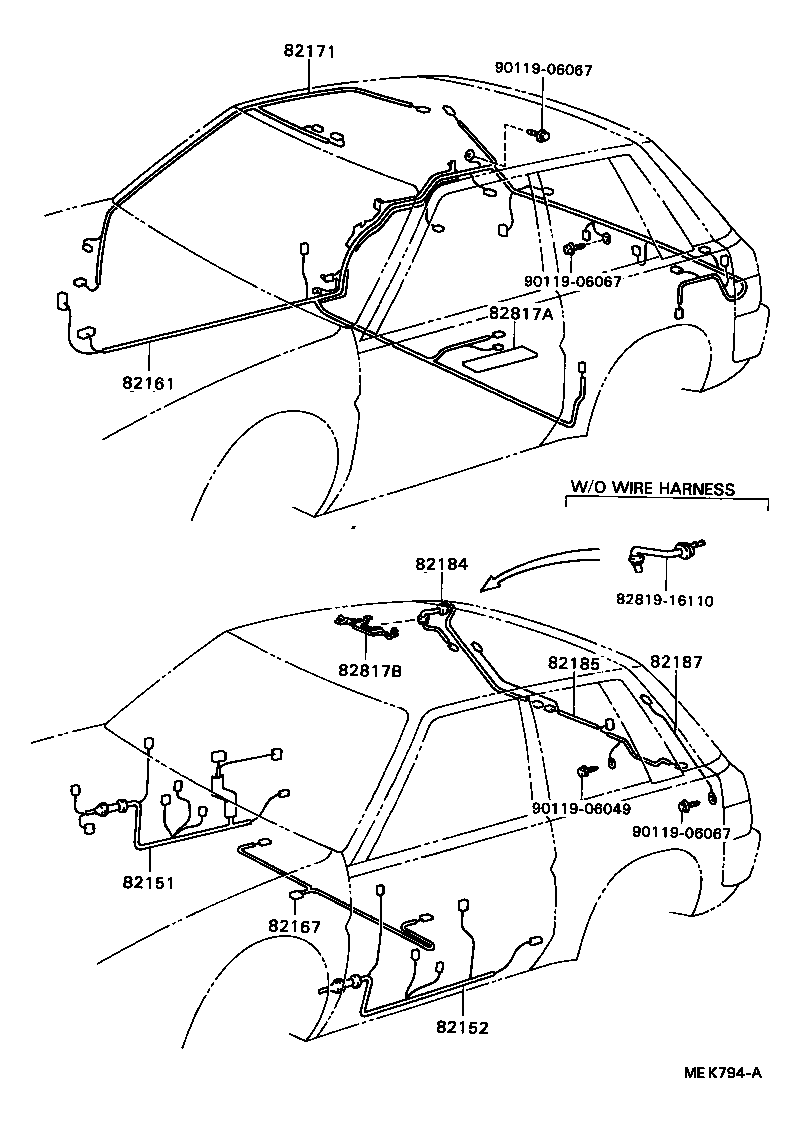

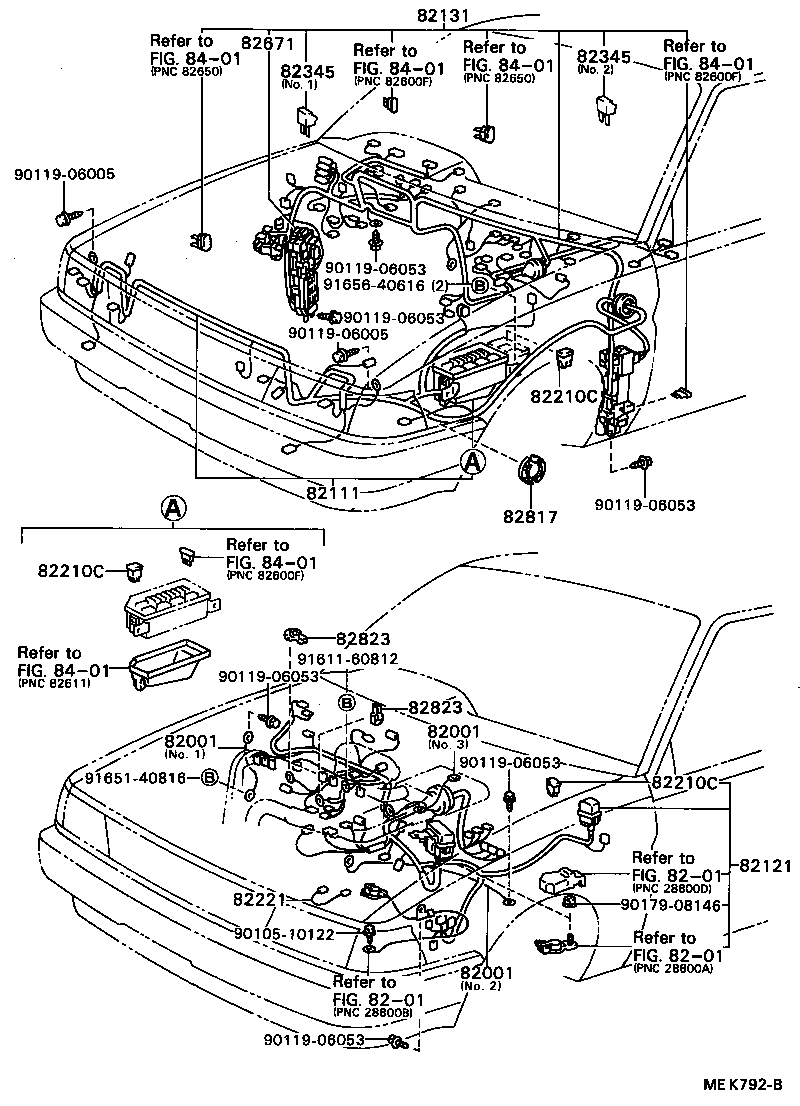

Figure MEK791B MEK791B 1988-05 → — Figure MEK792B MEK792B 1988-05 → — Figure MEK793C MEK793C 1988-05 → — Figure MEK794A MEK794A 1988-05 → — Figure MEK795A MEK795A 1988-05 → — Figure MEK796B MEK796B 1988-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82345 Diode
82625 Terminal, Fusible Link
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
