Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 5 illustrations

Illustrations

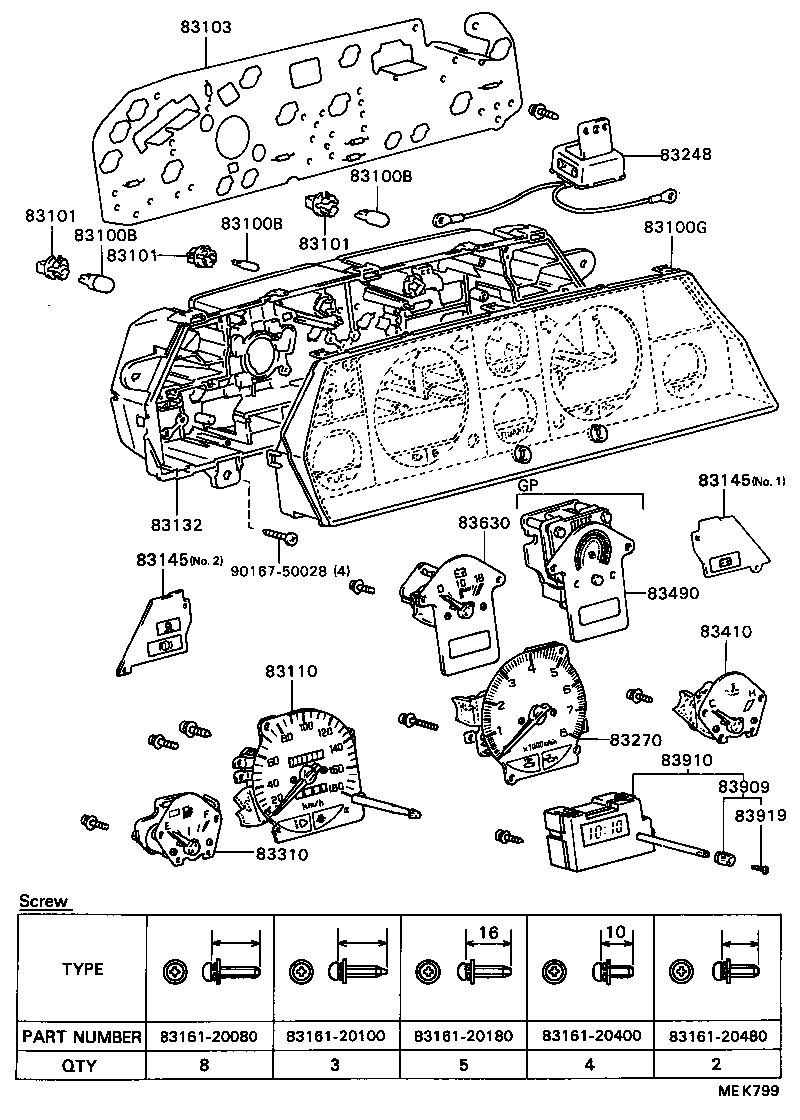

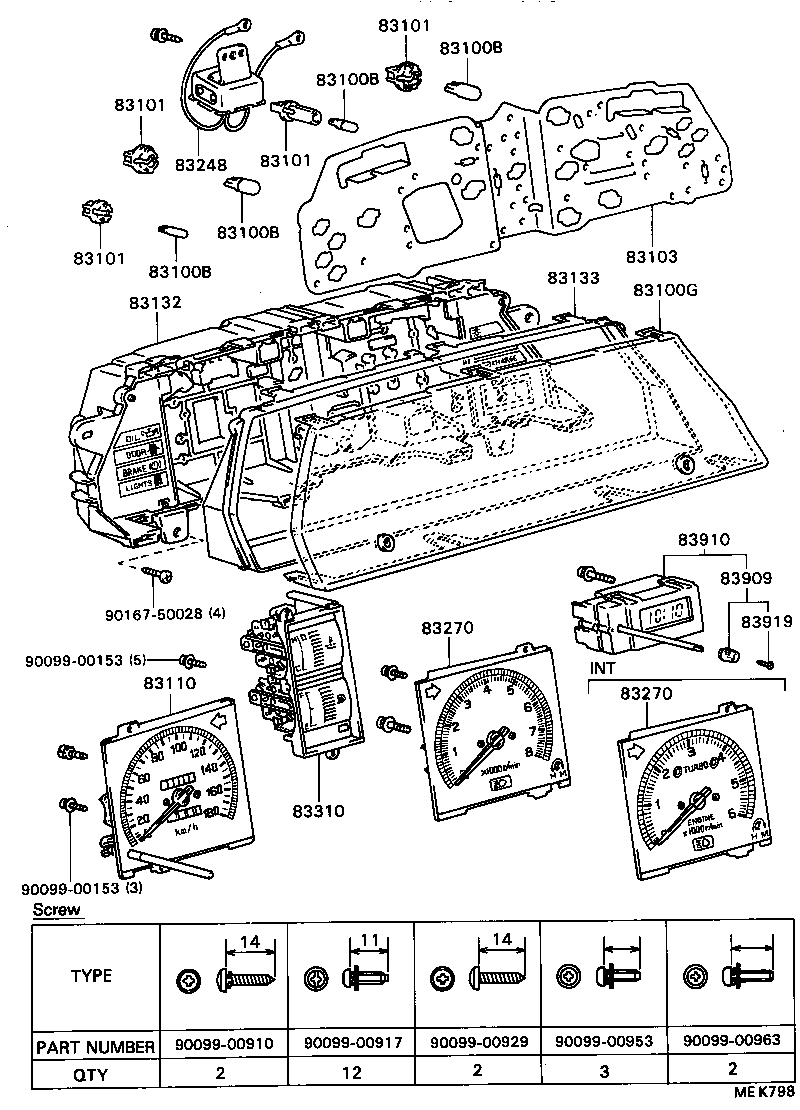

Figure MEK797 MEK797 1988-05 → — Figure MEK798 MEK798 1988-05 → — Figure MEK799 MEK799 1988-05 → — Figure MEK800 MEK800 1988-05 → — Figure MEK801 MEK801 1988-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83180 Detector Assy, Revolution
83248 Chime, Speed Warning
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83490 Gage Assy, Air Pressure Receiver
83630 Voltmeter Assy
83710 Cable Assy, Speedometer Drive, NO.1
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
